Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Milestone
-
Model Number:
-
2X1.5--MAH
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
80hp(60kw)
-
Cable Length:
-
as customer request
-
Outlet Size:
-
4inch
-
Power:
-
30kW/60kw etc, 60/120kW
-
motor:
-
as customer request
-
Flow(m3/h):
-
162-360
-
Head(m):
-
12-56
-
Speed(rpm):
-
800-1500
-
Outlet:
-
4 inch
-
Efficiency:
-
68%
-
Pump casing:
-
cast iron
-
Shaft:
-
2Cr13
-
Shaft seal:
-
mechanical seal, expeller, packing seal
-
drive method:
-
ZV,CV,DC,CRz
Quick Details
-
Application:
-
Other, Developing World Water Solutions, Industrial Utilities, Metal and Equipment Manufacturers, Mining industry, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions, slurry dredging, mining pump, gold mining, Coal mining, Sludge Paper Pulp
-
Pressure:
-
0.56Mpa
-
Voltage:
-
380V/440V or custom
-
Warranty:
-
1 year
-
Brand Name:
-
Milestone
-
Model Number:
-
2X1.5--MAH
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
80hp(60kw)
-
Cable Length:
-
as customer request
-
Outlet Size:
-
4inch
-
Power:
-
30kW/60kw etc, 60/120kW
-
motor:
-
as customer request
-
Flow(m3/h):
-
162-360
-
Head(m):
-
12-56
-
Speed(rpm):
-
800-1500
-
Outlet:
-
4 inch
-
Efficiency:
-
68%
-
Pump casing:
-
cast iron
-
Shaft:
-
2Cr13
-
Shaft seal:
-
mechanical seal, expeller, packing seal
-
drive method:
-
ZV,CV,DC,CRz

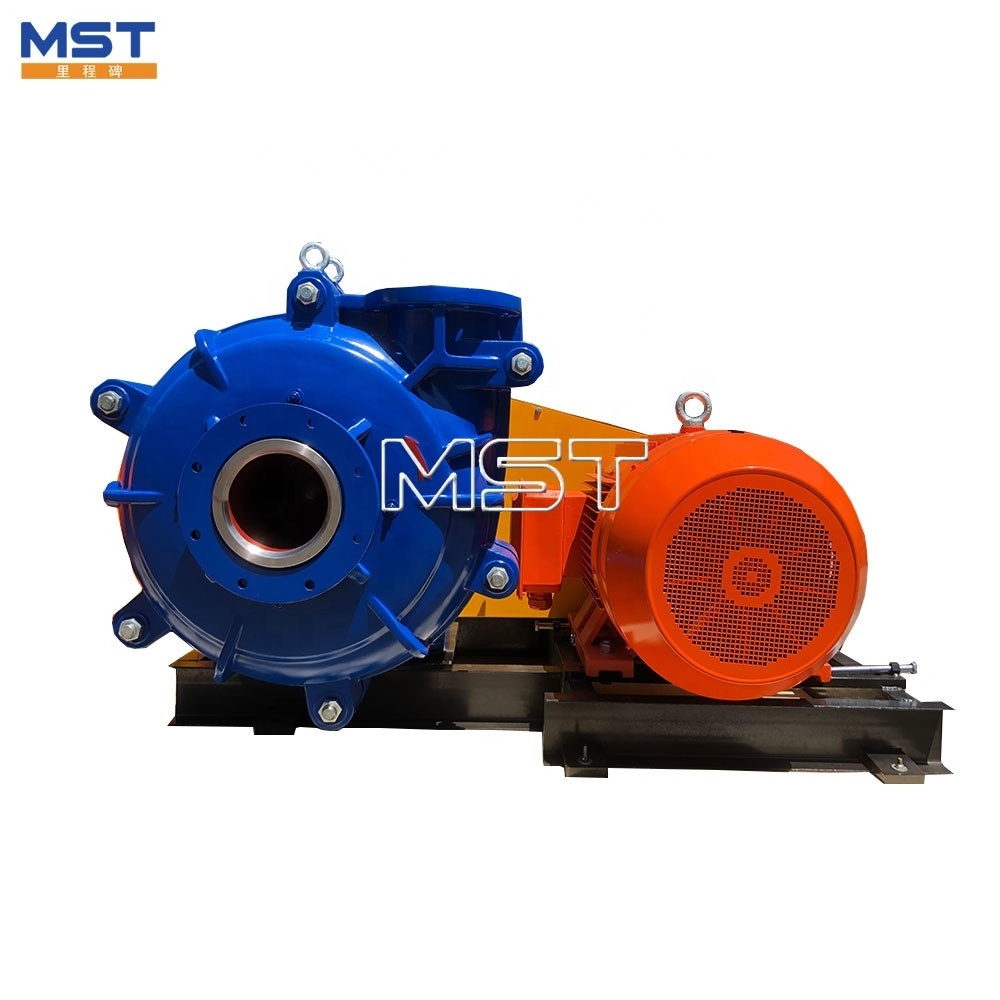

Pump overview
Heavy Duty Horizontal Slurry Pumps are designed for handling highly abrasive, high density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost.
Pump feature
1. Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely;
2. Interchangeable anti-abrasive wet parts made of high-chrome alloys;
3. The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
4. Various drive types: DC(direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control, etc;
5. The shaft seal uses the packing seal, expeller seal and mechanical seal;
Pump specification
|
Model No |
Max particle |
Max power |
Outlet size |
Inlet size |
|
MAH1.5 X 1 |
14mm |
15kW |
25mm |
32mm |
|
MAH2 X 1.5 |
19mm |
15kW |
32mm |
50mm |
|
MAH3 X 2 |
25mm |
30kW |
50mm |
75mm |
|
MAH4 X 3 |
28mm |
30kW 60kW |
75mm |
100mm |
|
MAH6 X 4 |
44mm |
60kW 120kW |
100mm |
150mm |
|
MAH8 X 6 |
63mm |
120kW 300kW |
150mm |
200mm |
|
MAH10 X 8 |
76mm |
260kW 560kW 710kW |
200mm |
250mm |
|
MAH12 X 10 |
86mm |
560kW 560kW |
250mm |
300mm |
|
MAH14 X 12 |
90mm |
560kW 1200kW |
300mm |
350mm |
Pump application
- Pipeline transport
- High velocity hydraulic transport
- Mineral processing
- Coal prep
- Cyclone feeds
- Aggregate processing
- Fine primary mill grinding
- Chemical slurry service
- Tailings, secondary grinding
- Industrial processing
- Pulp and paper
- Food processing
- Cracking operations
- Ash handling
