Quick Details
-
Customized support:
-
Customized
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Forlong
-
Model Number:
-
FY-G16
-
Item Name:
-
IC Card Prepay Diaphragm gas meter
-
International standard:
-
IEC62053-21; EN50470-3; EMC&CE-LVD
-
Certificate:
-
ISO9001/ISO14001
-
Case:
-
Steel
-
Standard:
-
GB/T17626.3-1998
-
color:
-
Gray
-
Payment system:
-
Prepaid System
-
Electric voltage:
-
5 to 6V
-
Electric measurement error:
-
≤0.01m3
-
Net weight:
-
2.4kg
Quick Details
-
Type:
-
other
-
Material:
-
custom
-
Warranty:
-
other
-
Customized support:
-
Customized
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Forlong
-
Model Number:
-
FY-G16
-
Item Name:
-
IC Card Prepay Diaphragm gas meter
-
International standard:
-
IEC62053-21; EN50470-3; EMC&CE-LVD
-
Certificate:
-
ISO9001/ISO14001
-
Case:
-
Steel
-
Standard:
-
GB/T17626.3-1998
-
color:
-
Gray
-
Payment system:
-
Prepaid System
-
Electric voltage:
-
5 to 6V
-
Electric measurement error:
-
≤0.01m3
-
Net weight:
-
2.4kg
Manufacturers Selling Rs485 IC Card Prepaid Diaphragm Gas Meter Remote Reading Gas Meter
Shanghai Fengyilong IC card prepay diaphragm gas meter CG-L-G1.6/2.5/4 is a smart gas volumetric meter with prepayment function. It is designed based on our rich experience of smart payment meters. With this meter, Gas Company sells gas to consumer by IC Card through computer management system. The consumer brings IC Card home and inserts IC Card into the meter once. The meter will record the bought gas amount and start auto calculating. The internal valve will close when there is a fraud attempt or lack of credit. Also, the total gas consumed amount and current left gas amount can be inquired and displayed on the LCD by pressing “Inquiry” button.
Detail Descriptions for IC Card Prepay Diaphragm gas meter
| Parameter | Model | ||
| CG-L-G1.6 | CG-L-G2.5 | CG-L-G4 | |
| Rated flow rate Qn | 1.6 m 3 /h | 2.5 m 3 /h | 4 m 3 /h |
| Max flow rate Qmax | 2.5 m 3 /h | 4 m 3 /h | 6 m 3 /h |
| Min flow rate Qmin | 0.016 m 3 /h | 0.025 m 3 /h | 0.040 m 3 /h |
| Max pressure loss | ≤120Pa | ≤200Pa | ≤250Pa |
| Permissible error | qmin≤q<0.1qmax ±3% | ||
| 0.1qmax≤q≤qmax ±1.5% | |||
| Working pressure range |
0.5 to 10KPa |
||
| Electric voltage | 5 to 6V | ||
| Electric current | <30 μA | ||
| Electric measurement error | ≤0.01 m3 | ||
| Cyclic volume | 1.2 dm 3 | ||
| Net weight | 2.4KG | ||
|
Distance between inlet to outlet |
130mm | ||
Technical Features for IC Card Prepay Diaphragm gas meter:
| 1 | Mechanical electric signal transfer error is less than 0.01m3 (highest grade in China). |
| 2 | Anti gas theft and anti dismounting design. |
| 3 | LCD display, with sound and wording reminding device; |
| 4 | Anti-magnetic interference device and data auto storage function when power off; |
| 5 | Low remain gas volume warning; Low pressure, no remain gas volume and no battery valve auto close function. |
| 6 | Over flow rate valve auto close function. |
| 7 | It can be connected with an extra alarming device and shut off gas flow. |
| 8 | The consumer can check the total consumption gas volume and remaining volume by pressing “inquiry” button. |
| 9 | The meter is installed with 4 pieces of A5 batteries for power supply, with very low energy consumption. |
| 10 |
The IC Card has a 24 digits password and only accepts password input 3 times. |
.
The drawing for 3 phase 4 wires meter electrician 240 volt electric meter
Demission for IC Card Prepay Diaphragm gas meter:
| Model | Demission(mm) | |||||
| A | B | C | D | E | F(Thread) | |
| CG-L-G1.6 | 130/110 | 227 | 214 | 164 | 96.5 | M30×2 |
| CG-L-G2.5 | 130/110 | 227 | 214 | 164 | 96.5 | M3 0 × 2 |
| CG-L-G4 | 130/110 | 227 | 214 | 164 | 96.5 | M3 0 × 2 |
Work principle for IC Card Prepay Diaphragm gas meter:

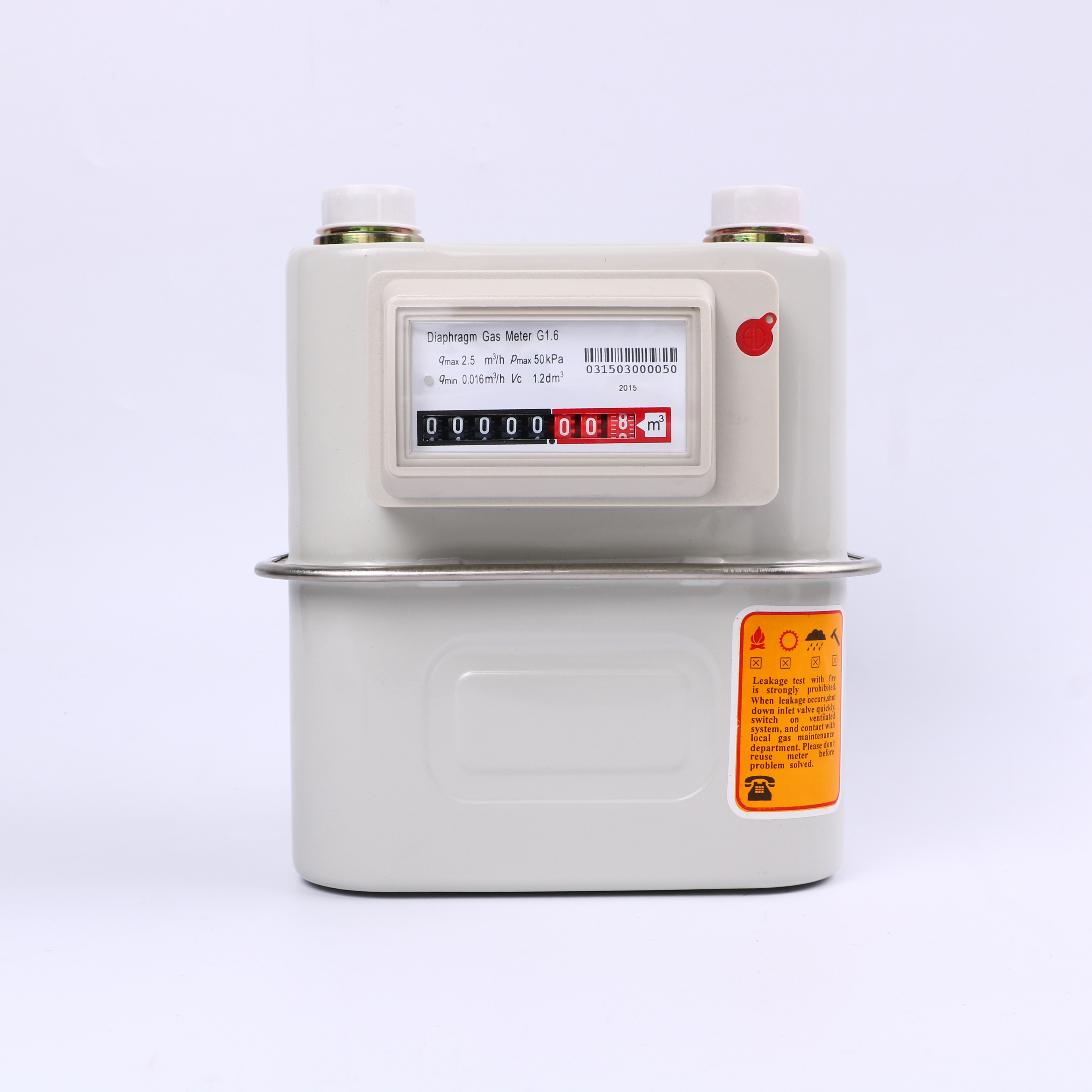

The actual pictures of IC Card Prepay Diaphragm gas meter
The sale data of 3 phase 4 wires meter electrician 240 volt electric meter
IC Card Prepay Diaphragm gas meter
2. Q: No light for the consumption indicator.
A1:Only when load is running, this LED will flash.
A2;If the operating power is too low, the spacing interval of flashing will take some more time, this is why it seems like LED isn’t burning.
A3:Please contact your technical supporter to replace this meter.
3. Q:The register can’t run.
A1: Check that the power supply indicator is burning
A2: If the operating power is too low, the spacing interval of the pulses will take some more time, this is why it seems like the meter won’t count.
A3: Please contact your technical supporter to replace this meter.
4. Q: No pulse output.
A: Check the external voltage source (Ui) is 5-27V DC.
A2: Check correct connecting:connect 5-27V DC to connector 20 (anode), and the signal wire (S) to connector 21 (cathode).
A3: Please contact your technical supporter to replace this meter.
5. Q: Pulse output rate wrong.
A: Please contact your technical supporter to replace this meter.
