Quick Details
-
Place of Origin:
-
China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1800x2000x2400
-
Power (kW):
-
2.2kw
-
Weight (KG):
-
3500 KG
-
Marketing Type:
-
New product 2021
-
Model:
-

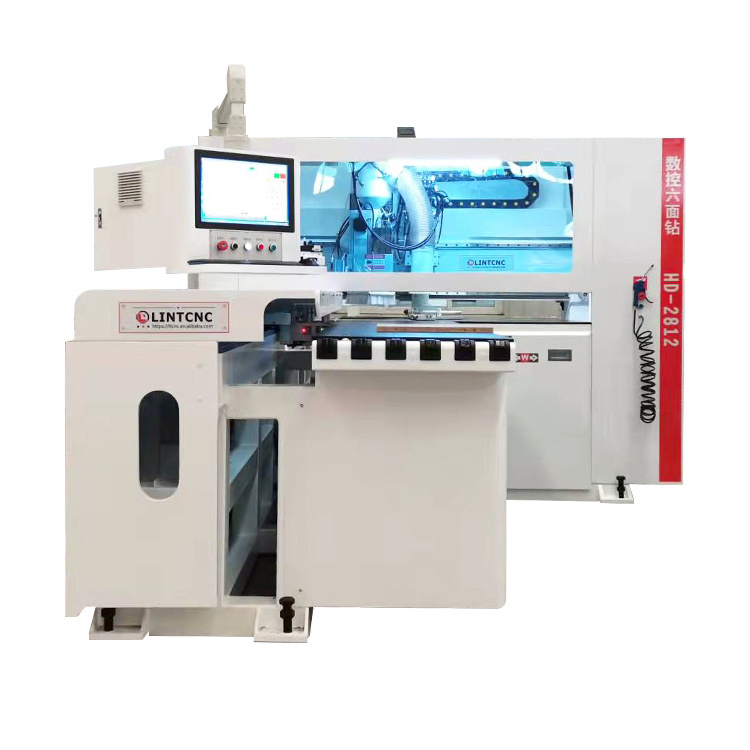

HD2812 CNC 6 Sided Drilling Machine
-
Drilling box:
-
2.2kw/ 12 up & 9 down vertical /8 horizontal driller
-
Spindle:
-
3.5kw air cooling spindle/ 0-18000rpm/ ER25 collet
-
Motor & driver:
-
Leadshine servo motor & driver
-
Inveter:
-
3.7kw EDT inveter
-
Control system:
-
Taiwan LNC MW2560PC control system
-
Guide rail:
-
Taiwan Hiwin square linear guide rail
-
Transmission:
-
Helical gear rack
-
Reducer:
-
Japan Shimpo reducer
-
Position:
-
automatic position control system
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
35mm
-
Range of Spindle Speed(r.p.m):
-
1 - 18000 r.p.m
-
Place of Origin:
-
China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1800x2000x2400
-
Power (kW):
-
2.2kw
-
Weight (KG):
-
3500 KG
-
Marketing Type:
-
New product 2021
-
Model:
-
HD2812 CNC 6 Sided Drilling Machine
-
Drilling box:
-
2.2kw/ 12 up & 9 down vertical /8 horizontal driller
-
Spindle:
-
3.5kw air cooling spindle/ 0-18000rpm/ ER25 collet
-
Motor & driver:
-
Leadshine servo motor & driver
-
Inveter:
-
3.7kw EDT inveter
-
Control system:
-
Taiwan LNC MW2560PC control system
-
Guide rail:
-
Taiwan Hiwin square linear guide rail
-
Transmission:
-
Helical gear rack
-
Reducer:
-
Japan Shimpo reducer
-
Position:
-
automatic position control system
Product Description
Specification
|
Model
|
LT-HD2812 CNC 6 Sided Drilling Machine
|
|
Drilling box
|
2.2kw/ 12 up & 9 down vertical /8 horizontal driller
|
|
Spindle
|
3.5kw air cooling spindle/ 0-18000rpm/ ER25 collet
|
|
Motor & driver
|
Leadshine servo motor & driver
|
|
Inveter
|
3.7kw EDT inveter
|
|
Control system
|
Taiwan LNC MW2560PC control system
|
|
Guide rail
|
Taiwan Hiwin square linear guide rail
|
|
Transmission
|
Helical gear rack
|
|
Reducer
|
Japan Shimpo reducer
|
|
Position
|
automatic position control system
|
|
Lubrication system
|
Electric oil pump lubrication system
|
|
Electrical line
|
Kanai flexible cable
|
|
Bed structure
|
Annealing of heavy bed
|
|
Dust collector
|
Upper dust suction port φ200mm; lower dust suction port φ125mm
|
|
Driver
|
Taiwan Shilin
|
|
Voltage
|
380V/3 Phase/ 50-60hz
|
|
Side close
|
Automatic side close
|
Machine details
Sample exhibition
