Quick Details
-
Brand Name:
-
KOMAY
-
Model Number:
-
HFP56A
-
Product Name:
-
Enclosed Conductor Bar System
-
Poles:
-
3P,4P,5P,6P,7P,16P Conductor Rail
-
Standard Length:
-
4m, other lengths are available, but not be exceeding 6m
-
Flexible Strength:
-
75N/mm²± 10%
-
Tensile Strength:
-
40N/mm²± 10%
-
Dielectric Strength:
-
30-40KV/mm
-
Leakage Resistance:
-
CTI600-2.7
-
Type:
-
Enclosed
-
Application:
-
Crane, Hoist, Mobile Device etc.
-
Conductor Bar Certification:
-
CCC, CE, ISO9001
Quick Details
-
Voltage:
-
690V
-
Current:
-
35A-240A
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KOMAY
-
Model Number:
-
HFP56A
-
Product Name:
-
Enclosed Conductor Bar System
-
Poles:
-
3P,4P,5P,6P,7P,16P Conductor Rail
-
Standard Length:
-
4m, other lengths are available, but not be exceeding 6m
-
Flexible Strength:
-
75N/mm²± 10%
-
Tensile Strength:
-
40N/mm²± 10%
-
Dielectric Strength:
-
30-40KV/mm
-
Leakage Resistance:
-
CTI600-2.7
-
Type:
-
Enclosed
-
Application:
-
Crane, Hoist, Mobile Device etc.
-
Conductor Bar Certification:
-
CCC, CE, ISO9001
Products Description
Powerail Enclosed conductor rail system is a powerail, protected from contact(IP23), for indoor and outdoor plants. They are conductor lines in a rigid green PVC housing with different copper cross sections for rated currents of 35-240A.
Type HFP-P: not include Sealing strip, with factory-mounted flat copper band and bolted-operated plug connectors.
Type HFP-R: Curves for R≥800mm, with factory-mounted flat copper band and screw connectors.
Approved and listed by: CCC, ISO9001 and CE.
|
Poles
|
4P/customizable
|
|
Width for Copper
|
1:14.5mm 2:17.6mm 3:21.0mm
|
|
Length
|
Standard length: 4m, customizable, but not more than 6m
|
|
Curves
|
Min800mm
|
|
Support Spacing
|
For straight runs1.2m
|
Related Products
Current Collector
|
Type
|
Weight (kg)
|
Poles
|
Power rating
|
Cat.-No.
|
|
56JD-4/25
|
0.65
|
4
|
25A
|
563125
|
|
56JD-4/40
|
0.70
|
4
|
40A
|
563140
|
|
56JD-4/60
|
1.35
|
4
|
60A
|
563160
|
|
56JD-4/80
|
1.30
|
4
|
80A
|
563180
|
|
56JDR-4/25
|
0.50
|
4
|
25A
|
563325
|
|
56JDR-4/40
|
0.60
|
4
|
40A
|
563340
|
|
56JD-3/60
|
0.90
|
3
|
60A
|
563360
|
|
56JD-3/80
|
1.05
|
3
|
80A
|
563380
|

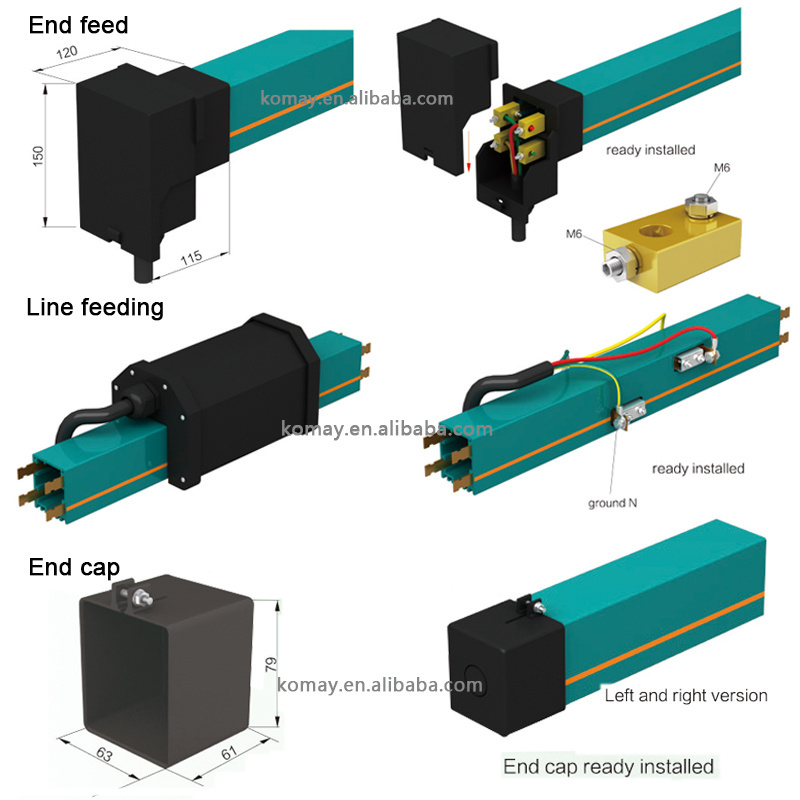

Accessories
