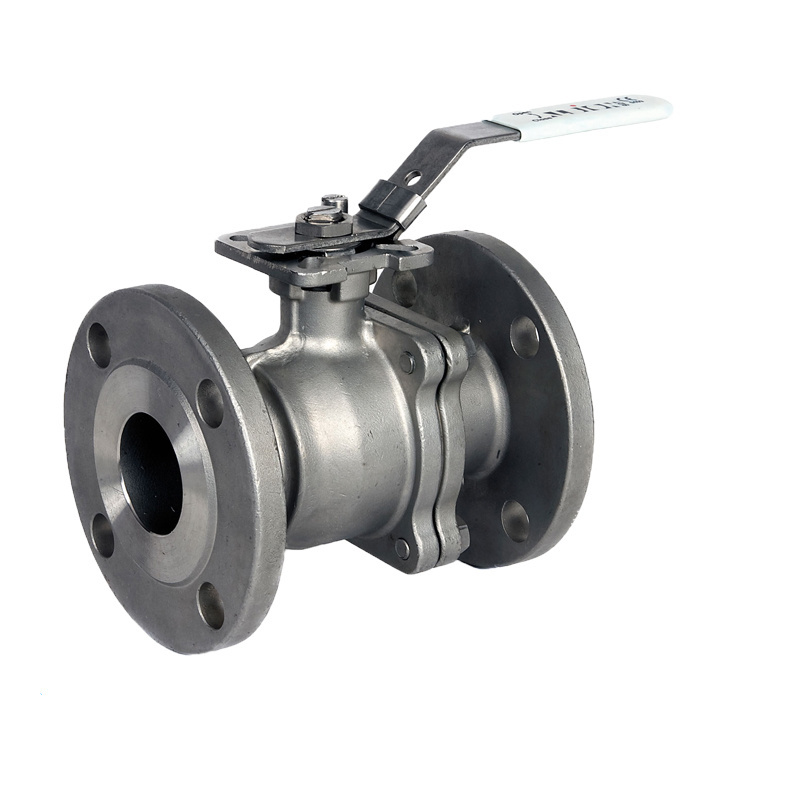

Cad drawings Flanged Two pieces DN80 PN16 Mechanical Ball float valve

FOB Reference Price: Get Latest Price

≥10 Sets

US $150

Free Inquiry

Customized Request

Quick Details

SPECIFICATIONS FOR STANDARD BALL VALVES
Pressure rating and size:	PN10 to PN160,ANSI Class150 to Class 2500, JIS 10K/20K
	DN50 to DN2000
	2"~80"
	50A~2000A
Material:	Body : WCB, CF8, CF8M
	Bonnet : WCB, CF8, CF8M
	Ball : A105, SS304, SS316
	Stem : F6a, SS304, SS316
	Seat : EPDM,Metal,Viton,PTFE,NBR
	Special material on request.
Operated type	Lever, Pneumatic, Gear, Electric, Bare shaft, etc.
Structure:	Floating or trunnion mounted ball,2pc or 3pcs
Bore type:	Full or reduced bore
Flange connection:	EN1092 & ANSI B16.5 & JIS
Type	Flange RF, RTJ
Maximum working temperatures:	Nitril:80°C NBR:110 °C EPDM:110 °C PTFE:150 °C, Metal seat for high temperature
