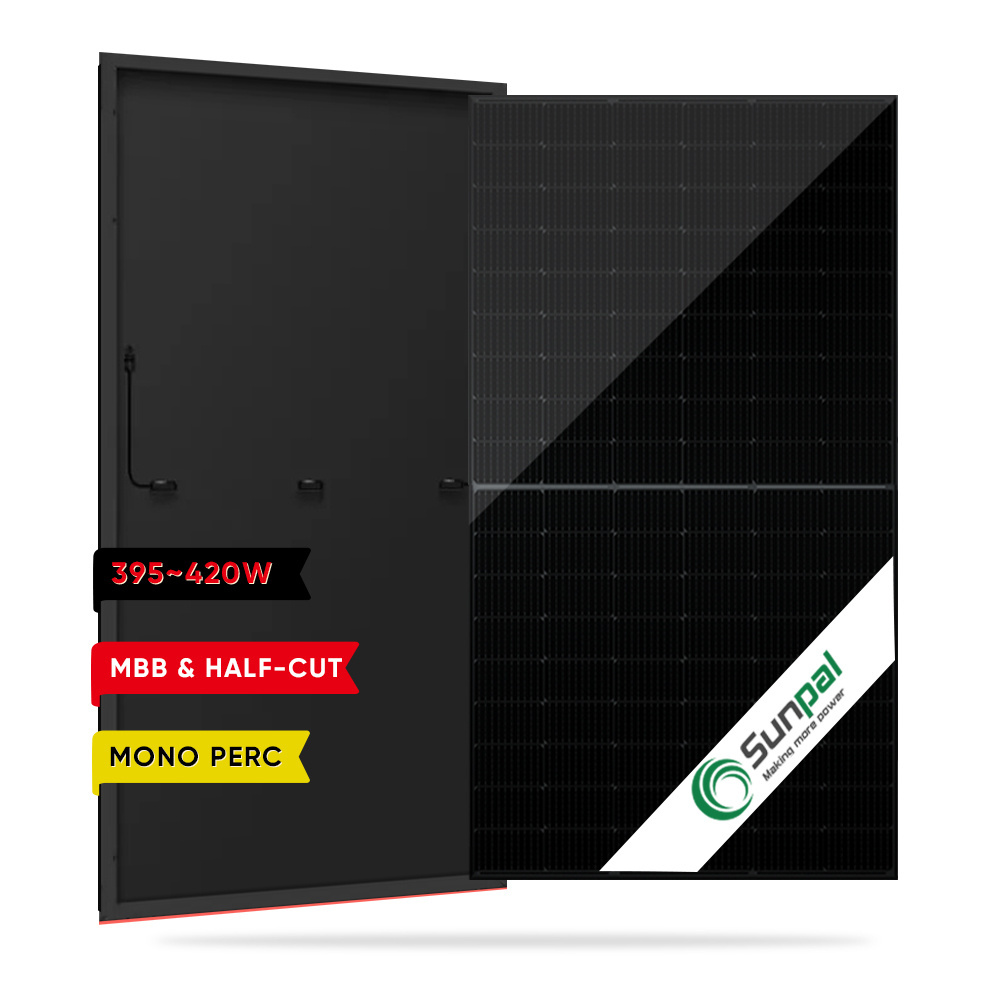

- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25-years
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP420M-54HB
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Application:
-
Solar Home System
-
Solar cell:
-
A-grade
-
Frame:
-
Black Anodized Aluminium Alloy
-
Keyword:
-
Black Monocrystalin Solar Panel
-
Cell Type:
-
Mono PERC Half Cell
-
Backsheet:
-
Black PCB Board
-
Packing:
-
936Pcs/40'Container
-
Material:
-
Mono-crystalline Silicon
-
Color:
-
Full Black
-
OEM Order:
-
Accept Customized Solar Panel
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, All Black
-
Panel Efficiency:
-
21.51%
-
Warranty:
-
25-years
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP420M-54HB
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1722*1134*30mm
-
Application:
-
Solar Home System
-
Solar cell:
-
A-grade
-
Frame:
-
Black Anodized Aluminium Alloy
-
Keyword:
-
Black Monocrystalin Solar Panel
-
Cell Type:
-
Mono PERC Half Cell
-
Backsheet:
-
Black PCB Board
-
Packing:
-
936Pcs/40'Container
-
Material:
-
Mono-crystalline Silicon
-
Color:
-
Full Black
-
OEM Order:
-
Accept Customized Solar Panel
Product Description
Electrical Characteristics:
|
Cell Orientation
|
108（2*54）
|
|
Glass
|
3.2mm coated tempered galss
|
|
Frame
|
Anodized aluminum alloy frame
|
|
Weight
|
20.5kg + 3%
|
|
Dimension
|
1722×1134×30mm
|
|
Power Output Tolerance
|
0~+5W
|
|
Max. System Voltage
|
DC1500V(IEC/UL)
|
|
Model Number
|
SP395M-54HB
|
|
SP400M-54HB
|
|
SP405M-54HB
|
|
|||||
|
Testing Condition
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
|||||
|
Maximum Power (Pmax/W)
|
395
|
294
|
400
|
298
|
405
|
302
|
|||||
|
Open Circuit Voltage (Voc/V)
|
36.9
|
34.82
|
36.98
|
34.9
|
37.06
|
34.98
|
|||||
|
Short Circuit Current (Isc/A)
|
13.71
|
11.07
|
13.78
|
11.13
|
13.85
|
11.19
|
|||||
|
Voltage at Max Power (Vmp/V)
|
30.32
|
28.26
|
30.42
|
28.42
|
30.52
|
28.58
|
|||||
|
Current at Max Power (Imp/A)
|
13.03
|
10.41
|
13.15
|
10.49
|
13.27
|
10.57
|
|||||
|
Module Efficiency(%)
|
20.23
|
|
20.49
|
|
20.75
|
|
|||||
|
Temp Coefficient of Isc
|
+0.04%/°C
|
|
|
|
|
|
|||||
|
Temp Coefficient of Voc
|
-0.25%/°C
|
|
|
|
|
|
|||||
|
Temp Coefficient of Pmax
|
-0.34%/°C
|
|
|
|
|
|
|||||
|
Model Number
|
SP410M-54HB
|
|
SP415M-54HB
|
|
SP420M-54HB
|
|
|||||
|
Testing Condition
|
STC
|
NOCT
|
STC
|
NOCT
|
STC
|
NOCT
|
|||||
|
Maximum Power (Pmax/W)
|
410
|
306
|
415
|
310
|
420
|
314
|
|||||
|
Open Circuit Voltage (Voc/V)
|
37.14
|
35.06
|
37.22
|
35.14
|
37.3
|
35.22
|
|||||
|
Short Circuit Current (Isc/A)
|
13.92
|
11.25
|
13.99
|
11.31
|
14.06
|
11.37
|
|||||
|
Voltage at Max Power (Vmp/V)
|
30.62
|
28.74
|
30.72
|
28.9
|
30.82
|
29.06
|
|||||
|
Current at Max Power (Imp/A)
|
13.39
|
10.65
|
13.51
|
10.73
|
13.63
|
10.81
|
|||||
|
Module Efficiency(%)
|
21
|
|
21.26
|
|
21.51
|
|
|||||
|
Temp Coefficient of Isc
|
+0.04%/°C
|
|
|
|
|
|
|||||
|
Temp Coefficient of Voc
|
-0.25%/°C
|
|
|
|
|
|
|||||
|
Temp Coefficient of Pmax
|
-0.34%/°C
|
|
|
|
|
|
|||||
Market Certificate:
Product packaging
