Quick Details
-
Brand Name:
-
KEDA
-
Dimension(L*W*H):
-
11*3.3*3.1m, 11*3.3*3.1m
-
Weight:
-
20 KG, 20t
-
Engine:
-
Cummins made in China
-
Engine power:
-
194KW
-
Usage:
-
Port River Lake Sea
-
Name:
-

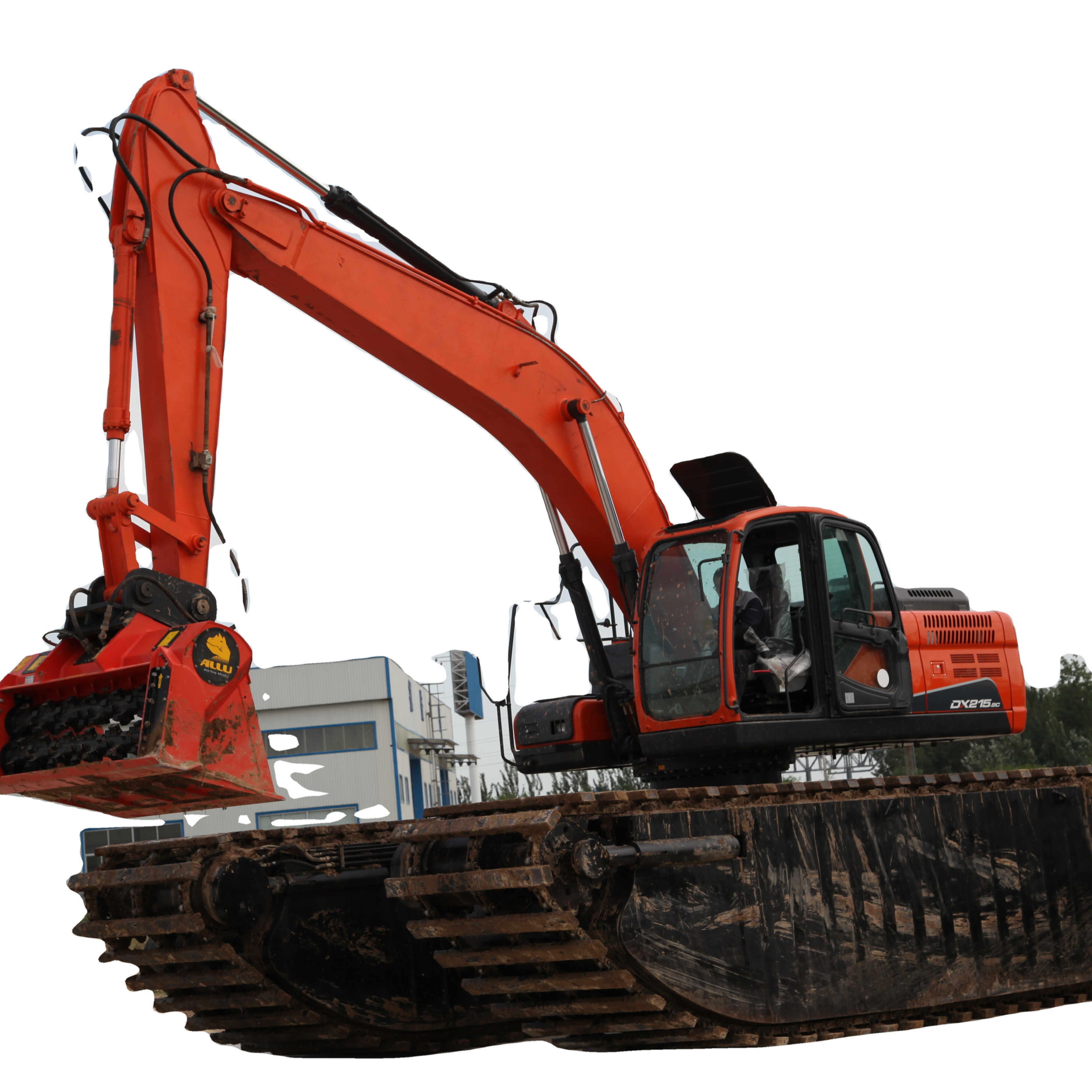

Track Type Multifunctional Amphibious Dredger Made in Keda
-
Color:
-
Customer's Requirement
-
Application:
-
cutter suction, digging, grabbing, piling, weeding
-
Max. dredging depth:
-
6.5m
-
Max. discharging distance:
-
1500m
Quick Details
-
Dredging Depth:
-
6.5 m
-
Draught:
-
40 inch
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KEDA
-
Dimension(L*W*H):
-
11*3.3*3.1m, 11*3.3*3.1m
-
Weight:
-
20 KG, 20t
-
Engine:
-
Cummins made in China
-
Engine power:
-
194KW
-
Usage:
-
Port River Lake Sea
-
Name:
-
Track Type Multifunctional Amphibious Dredger Made in Keda
-
Color:
-
Customer's Requirement
-
Application:
-
cutter suction, digging, grabbing, piling, weeding
-
Max. dredging depth:
-
6.5m
-
Max. discharging distance:
-
1500m
Product Description
Product parameters
|
The Pontoon
Undercariage |
Model of Pontoon Undercariage
|
JY200
|
|
|
Travel Motor Assembly
|
DOOSANTM60VCx2
|
|
|
Pontoon and Track Shoe
|
Material:Q355B Reinforced Steel
|
|
|
|
Thickness of pontoon:Bottom6mm, Side4mm
|
|
|
Chains on Each Pontoon
|
3 track chains on each pontoon
|
|
|
Material of Chain
|
40Cr Hard-wearing Steel
|
|
|
Dimension of the Pontoon
|
10000mmx1970mmx1840mm-single
10000mmx5200mmx1840mm-after connected |
|
|
Anti-rust technology
|
We use advanced environmental shot blasting technology which can
effectively improve the service life of the pontoon. |
|
|
Color
|
Grey
|
|
|
Pontoon pressing technology
|
Increase the integral strength of the pontoon, reduce the weight,
improve the relative buoyancy of the whole machine, beautiful and practical |
|
|
Side Pontoons with spuds
Dimension of the side pontoon: 7x1.5x1m-each Spud length:8m |
2pes hydraulic full automatic spud
The automatic spud, on the spud, we assembled the motor, when the spuds dump, rise and fall all finished by the oil cylinder motor, just operate the switch is ok |
