Quick Details
-
Model Number:
-
PC60, PC90, PC160, PC220, PC330, PC150E, PC200E
-
Place of Origin:
-
Henan,China
-
Power:
-
5.5-9HP
-
Dimension(L*W*H):
-
865*500*1120mm
-
Weight:
-
160 kg
-
Engine:
-
Lifan, Locin, Briggs & Stratton, Changfa, Changchai, Electric
-
Product name:
-
Vibratory Plate Compactor
-
Engine type:
-
Gaoline/Diesel
-
Max output:
-
5.5-6.5HP
-
Type:
-
Reversible
-
Color:
-
Yellow or customized
-
Plate Size:
-
650*500mm
-
Max speed:
-
3600rpm
-
Centrifugal force:
-
30KN
-
Vibrating frequency:
-
92 HZ
-
Walk speed:
-
20-23m/min
Quick Details
-
Marketing Type:
-
NEW
-
Application:
-
Construction
-
Brand Name:
-
Emoda
-
Model Number:
-
PC60, PC90, PC160, PC220, PC330, PC150E, PC200E
-
Place of Origin:
-
Henan,China
-
Power:
-
5.5-9HP
-
Dimension(L*W*H):
-
865*500*1120mm
-
Weight:
-
160 kg
-
Engine:
-
Lifan, Locin, Briggs & Stratton, Changfa, Changchai, Electric
-
Product name:
-
Vibratory Plate Compactor
-
Engine type:
-
Gaoline/Diesel
-
Max output:
-
5.5-6.5HP
-
Type:
-
Reversible
-
Color:
-
Yellow or customized
-
Plate Size:
-
650*500mm
-
Max speed:
-
3600rpm
-
Centrifugal force:
-
30KN
-
Vibrating frequency:
-
92 HZ
-
Walk speed:
-
20-23m/min

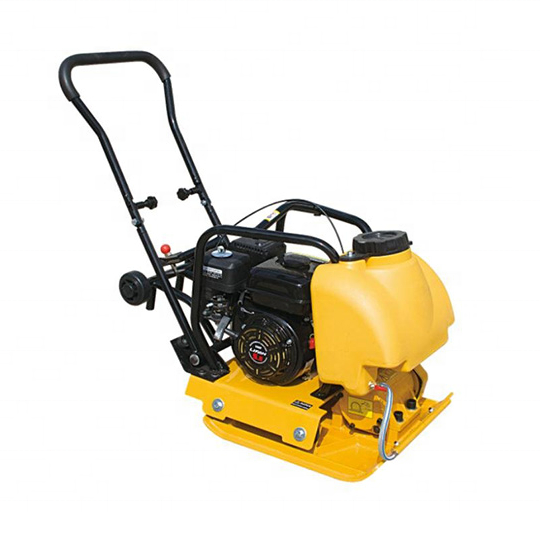

Introduction for reversible plate compactor for sale
Vibrating plate compactor is mainly suitable for the bonding between tamping particles and materials with less friction, such as river sand, gravel and asphalt. Under normal circumstances, the floor area of the same type of flat plate is similar, so the performance of the flat impact cymbal is mainly affected by the quality of the whole machine, the exciting force and the excitation frequency. The exciting force is mainly used to maintain the forced vibration of the material to be compacted; and the excitation frequency affects the compaction efficiency and the degree of compaction. That is, under the same exciting force, the
higher the excitation frequency, the higher the compaction efficiency and compactness high.
The vibrating plate compactor needs to maintain a certain jump height when the work jumps, generally between 0.4-0.8mm. When the vibrating plate compactor reaches the same exciting force, the higher the operating frequency of the plate compactor, the smaller the required vibration quality, and the lighter the overall quality.
Featurers for reversible plate compactor:
*Foldable handle for easy transportation and stock. (straight handle is also available)
*Complete sealed belt cover to prevent sand and soil in.
*Built-in wheels for easy transport.
*Centrally mounted fully enclosed exciter for an even spread of compactive force over the whole base plate
*Throttle control for easy holding working speed. (Throttle control is available as optional)
*Heavy-duty shock mounts reduce vibration to the upper engine and handle.
*Rubber & canvas mat for brick paving compaction as option.
*Lifting Hook is available as optional
higher the excitation frequency, the higher the compaction efficiency and compactness high.
The vibrating plate compactor needs to maintain a certain jump height when the work jumps, generally between 0.4-0.8mm. When the vibrating plate compactor reaches the same exciting force, the higher the operating frequency of the plate compactor, the smaller the required vibration quality, and the lighter the overall quality.
Featurers for reversible plate compactor:
*Foldable handle for easy transportation and stock. (straight handle is also available)
*Complete sealed belt cover to prevent sand and soil in.
*Built-in wheels for easy transport.
*Centrally mounted fully enclosed exciter for an even spread of compactive force over the whole base plate
*Throttle control for easy holding working speed. (Throttle control is available as optional)
*Heavy-duty shock mounts reduce vibration to the upper engine and handle.
*Rubber & canvas mat for brick paving compaction as option.
*Lifting Hook is available as optional
Product Description
Specification
|
item
|
value
|
|
Applicable Industries
|
Hotels, Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining
|
|
Showroom Location
|
Egypt, Viet Nam, Pakistan, Thailand, Chile
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
NEW
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Engine
|
|
Condition
|
New
|
|
Application
|
Construction
|
|
Brand Name
|
Emoda
|
|
Place of Origin
|
Henan,China
|
|
Power
|
5.5-6.5HP
|
|
Dimension(L*W*H)
|
865*500*1120mm
|
|
Weight
|
160kg
|
|
Warranty
|
1 Year
|
|
Engine
|
Gasoline/Diesel
|
|
UNIQUE SELLING POINT
|
High operating efficiency
|
|
Product name
|
Vibratory Plate Compactor
|
|
Engine type
|
Gaoline/Diesel
|
|
Max output
|
5.5-6.5HP
|
|
Type
|
Reversible
|
|
Color
|
Yellow or customized
|
|
Plate Size
|
650*500mm
|
|
Max speed
|
3600rpm
|
|
Centrifugal force
|
30KN
|
|
Vibrating frequency
|
92 HZ
|
|
Walk speed
|
20-23m/min
|
Packing & Delivery
wooden case
