Quick Details
-
Machinery Capacity:
-
80kg-400kg
-
Machinery Function:
-
cooking/boiling and mixing, cooking/boiling and mixing
-
Name:
-
Planetary jacket kettle
-
Model Number:
-
OBXJC-100
-
Capacity:
-
100L-500L
-
Power:
-
3kw-54kw
-
Energy of jacketed kettle:
-
Electric/Gas/Steam
-
Application:
-
Food Cooking Industrial Jacketed Kettle
-
Usage:
-
Food Industry Equipment
-
Material of french fries production line:
-
SUS 304
Quick Details
-
Weight (KG):
-
300
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ORIBEST
-
Machinery Capacity:
-
80kg-400kg
-
Machinery Function:
-
cooking/boiling and mixing, cooking/boiling and mixing
-
Name:
-
Planetary jacket kettle
-
Model Number:
-
OBXJC-100
-
Capacity:
-
100L-500L
-
Power:
-
3kw-54kw
-
Energy of jacketed kettle:
-
Electric/Gas/Steam
-
Application:
-
Food Cooking Industrial Jacketed Kettle
-
Usage:
-
Food Industry Equipment
-
Material of french fries production line:
-
SUS 304

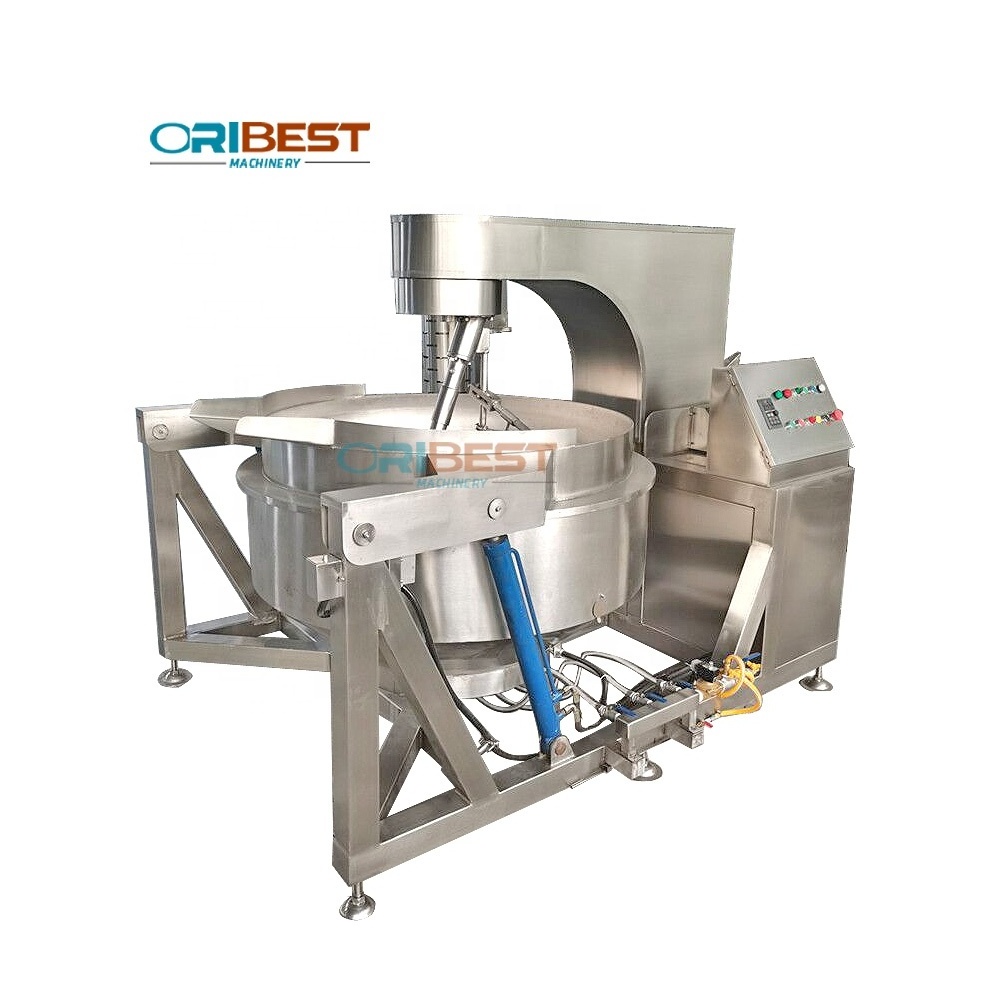

♦ Automatic Paste Soup Double Jacket Cooking Kettle With Mixer Stainless Steel Vegetable Cooking Mixer Machine
B rief Introduction:
1) Fully automatic with user-friendly control panel.
2) Different capacity: 100L-500 L.
3) All stainless steel 304, durable and easy to clean, healthy for food materials.
4) Planetary mixing system enables fully mix inside the bowl and without any missing.
5) Thick steel material strong enough to hold the body stable without shaking while mixing with high speed.
6) Heating temperature is easily monitored and controlled on the panel with wireless devices.
7) Mixing arm tilted backwards automatically before discharging.
8) Cooking bowl titled to 90° hydraulically to allow easy discharge of food materials.
9) Stable while in operation and movable with heavy duty casters.
|
Capacity |
Diameter |
Thickness |
Mixing Type |
Power |
Heating Source |
|
100L |
800mm |
4mm |
Planetary |
3kw |
gas / electricity / steam |
|
200L |
900mm |
4mm |
Planetary |
3kw |
gas/electricity/steam |
|
300L |
1000mm |
4 mm |
Planetary |
3kw |
gas / electricity / steam |
|
400L |
1100mm |
5 mm |
Planetary |
3.7kw |
gas / electricity / steam |
|
500L |
1200mm |
5mm |
Planetary |
5.5kw |
gas / electricity / steam |
The jacketed kettle/ industrial cooking pot is widely used in process candy, sugar, medicine, dairy products, liquor, drink, pastry, cake, preserved fruit, can, pot-stewed fowl and other food materials.
It also can be used in large-scale restaurant and canteen to boil soup, cook food, fricassee, cook gruel and other usage.
It’s a good equipment to improve quality, reduce time, and improve labor condition in food processing.
