The mast support platform of the aluminum lifting platform is lifted and lowered synchronously, which has a large load capacity and excellent working stability. The overall lift guardrail device has good strength, greatly reduces the height of the whole machine during transportation, and is very convenient for loading and unloading. The assembly or disassembly can be completed by one lift. The lift has strong carrying capacity and is suitable for climbing operations; it can also be customized into various non-standard products according to different environments to meet different needs.
- Product Details
- {{item.text}}
Quick Details
-
Table Size:
-
650*600mm
-
Overall Dimensions:
-
1330*800*2150
-
Weight:
-
430 kg
-
Product name:
-
Aluminum Hydraulic Lift Table Aerial Lifting Platform
-
Keywords:
-
Alluminum Alloy Lift
-
Application:
-
Widely
-
Material:
-
High-duty Steel Structure
-
Feature:
-
Easy Operation Safety Convenience
-
Control:
-
Double Controller
-
Power source:
-
DC AC
-
Operation way:
-
Platform Operate
-
After Warranty Service:
-
Repair Service
-
After-sales Service Provided:
-
Video Technical Support
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
Olift
-
Table Size:
-
650*600mm
-
Overall Dimensions:
-
1330*800*2150
-
Weight:
-
430 kg
-
Product name:
-
Aluminum Hydraulic Lift Table Aerial Lifting Platform
-
Keywords:
-
Alluminum Alloy Lift
-
Application:
-
Widely
-
Material:
-
High-duty Steel Structure
-
Feature:
-
Easy Operation Safety Convenience
-
Control:
-
Double Controller
-
Power source:
-
DC AC
-
Operation way:
-
Platform Operate
-
After Warranty Service:
-
Repair Service
-
After-sales Service Provided:
-
Video Technical Support
10m Hydraulic Truck Mounted Aluminum Hydraulic Lift Table Aerial Lifting Platform
Product Description

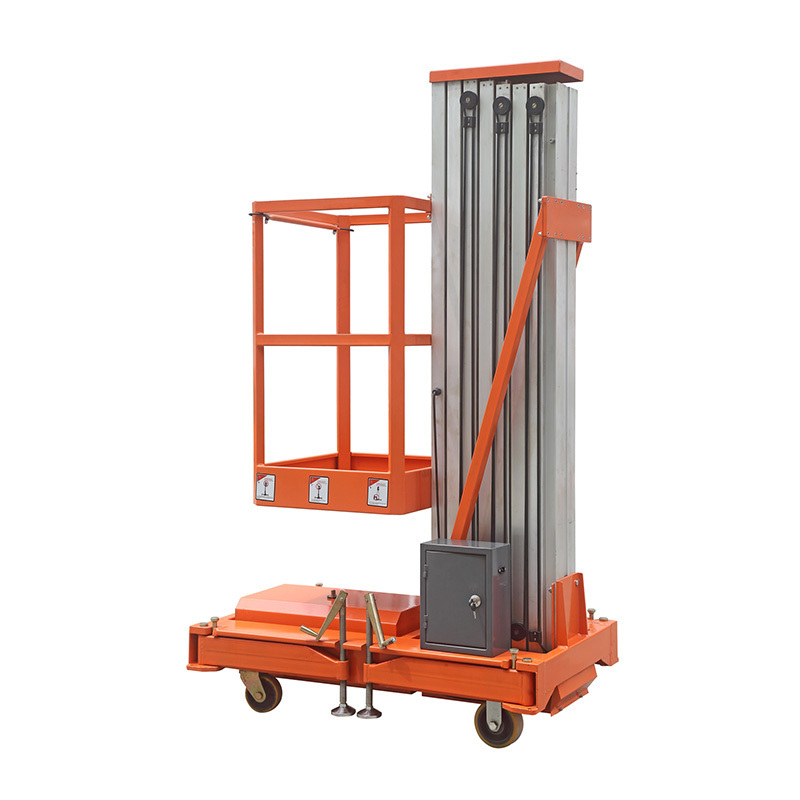

Aluminum lifting platform
PL series:
Application:
Using high-strength and high-quality aluminum alloy material, it has the advantages of beautiful appearance, small size, light weight, lifting balance, safety and reliability, etc. It is widely used in factories, hotels, restaurants, stations, airport theaters, exhibitions, etc. It is the best safety companion for maintenance of equipment, paint decoration, replacement of lamps, electrical appliances, cleaning and maintenance, etc.
Features:
1. The whole machine is light in weight, good in maneuverability, suitable for single-person operation;
2. The special guide wheel device between the masts can lift smoothly and freely;
3. Compact structure, small size in transportation state, can enter the car of general elevator and can pass through door openings and narrow passages smoothly;
4. The double-protected outrigger structure makes the work safer and can be lifted and lowered close to the working surface;
5. AC/DC power supply is available for selection, auxiliary safety protection system for artificial descent;
Specifications of models:
|
Model Number
|
Unit
|
PL06
|
PL08
|
PL10
|
|
Max. Platform Heigh
|
mm
|
6000
|
8000
|
10000
|
|
Working Height
|
mm
|
7700
|
9700
|
11700
|
|
Ground Clearance
|
mm
|
80
|
80
|
80
|
|
Lift Rated Capacity
|
kg
|
125
|
125
|
125
|
|
Platform Size
|
mm
|
600*550
|
600*550
|
600*550
|
|
Outspread Size
|
mm
|
1930x1770
|
1930x1770
|
1930x1770
|
|
Power supply(AC)
|
V
|
220
|
220
|
220
|
|
Power supply(DC)
|
V
|
24
|
24
|
24
|
|
Battery
|
v/Ah
|
2x12/60
|
2x12/60
|
2x12/60
|
|
Charger
|
v/A
|
24/10
|
24/10
|
24/10
|
|
Lifting motor(AC)
|
v/kw
|
220/0.75
|
220/0.75
|
220/0.75
|
|
Lifting motor(DC)
|
v/kw
|
24/2.0
|
24/2.0
|
24/2.0
|
|
Overall Length
|
mm
|
1320
|
1320
|
1420
|
|
Overall Width
|
mm
|
800
|
800
|
850
|
|
Overall Height
|
mm
|
1980
|
1980
|
2100
|
|
Total Weight(AC)
|
kg
|
300
|
350
|
400
|
|
Total Weight(DC)
|
kg
|
330
|
380
|
430
|
Detailed Images
Related Products
Packing&Shipping
|
Packaging Detail:
|
Olift Aluminum lifting platform will be packed by Flexible Package, Seaworthy Package
|
|
|
|
|||
|
Delivery Detail:
|
15-30 days for Aluminum lifting platform.
|
|
|
|
|||
Certifications
Company Introduction
Qingdao Olift Equipment Co.,Ltd.
provides wide selection of products such as forklift truck, pallet truck and electric stacker, semi-electric stacker, scissor lifts, moving tool, car mover, platform lifting, wheelchair lift platform and more. We have professional team members to design your hand pallet truck products and control the quality.
After Sales Service
Service for Aluminum lifting platform:
1.We can design the customized
Aluminum lifting platform
as per your requirement.
2.The most suitable Aluminum lifting platform will be recommended to you once we got your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Operation video can be sent to you if needed.
5.Maintenance video will be given once the Aluminum lifting platform break down to help you repair.
6.Parts of Aluminum lifting platform can be sent to you by express within 7 days if needed.
2.The most suitable Aluminum lifting platform will be recommended to you once we got your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Operation video can be sent to you if needed.
5.Maintenance video will be given once the Aluminum lifting platform break down to help you repair.
6.Parts of Aluminum lifting platform can be sent to you by express within 7 days if needed.
Qingdao Olift Equipment Co., Ltd. is professional Material Handling Expert.
2. We offer technical supporting for the Aluminum lifting platform all year round.
3. Choose OLIFT is to choose higher work efficiency, better quality and service.
4. If you want to get more details, please visit our website: www.olift.com for more details of the trucks.
5. The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment.
6. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
Qingdao Olift Equipment Co., Ltd.
Address:
No. 143, Zhuzhou Road, Laoshan District, Qingdao, Shandong, China
Tel : +86-532-88990008
Sales manager:Jenny Jiang
Tel : +86-532-88990008
Sales manager:Jenny Jiang
Email: forklift@olift.com
Mobile: +86 18354255925
Website: www.olift.com
Mobile: +86 18354255925
Website: www.olift.com
FAQ
1.How can customer buy parts once the Aluminum lifting platform break down?
The Aluminum lifting platform adopts most of the common parts of hardware.You can buy the parts in your local hardware market or
forklift parts shop.
2.How can customer repair the Aluminum lifting platform?
One of the great advantage of Aluminum lifting platform is with very very low failure rate. Even it breaks down, we can guide to repair it by video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 3-5 years if you maintain it as per our maintenance manual.
4.How long is the quality guarantee of the Aluminum lifting platform?
One year quality guarantee including battery. Wheels are not included. If it breaks down within one year, we can send the parts free of charge to you.
The Aluminum lifting platform adopts most of the common parts of hardware.You can buy the parts in your local hardware market or
forklift parts shop.
2.How can customer repair the Aluminum lifting platform?
One of the great advantage of Aluminum lifting platform is with very very low failure rate. Even it breaks down, we can guide to repair it by video and repair instruction.
3.What is the battery life span?
The lift span of the battery can be 3-5 years if you maintain it as per our maintenance manual.
4.How long is the quality guarantee of the Aluminum lifting platform?
One year quality guarantee including battery. Wheels are not included. If it breaks down within one year, we can send the parts free of charge to you.
