2'' RS485 Liquid Magnetic Flowmeter 4.0MPa DN50 Sewage 0.5% Electromagnetic Flow Meters for Water Treatment Solutions

2'' RS485 Liquid Magnetic Flowmeter 4.0MPa DN50 Sewage 0.5% Electromagnetic Flow Meters for Water Treatment Solutions

FOB Reference Price: Get Latest Price

≥1 Sets

US $590

≥5 Sets

US $490

≥10 Sets

US $390

≥20 Sets

US $325

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: DFDS

Model Number:: DFDS-FGD

Product Name:: electric magnetic flow meter sensor IP65 flowmeter with mod-bus

Keywords:: flowmeter ip65

Medium:: Conductive Liquid

Output:: 4-20mA /RS485

Power supply:: 220VAC/ 24VDC

Display:: LCD Digital

Electrode material:: SUS316L

Communication:: RS485/Modbus/HART

Pressure:: 0.6~4.0MPa

Connection:: Flange Connection

Quick Details

Type:: Variable Area Water Flowmeters

Warranty:: 2 years

Place of Origin:: Henan, China

Brand Name:: DFDS

Model Number:: DFDS-FGD

Product Name:: electric magnetic flow meter sensor IP65 flowmeter with mod-bus

Keywords:: flowmeter ip65

Medium:: Conductive Liquid

Output:: 4-20mA /RS485

Power supply:: 220VAC/ 24VDC

Display:: LCD Digital

Electrode material:: SUS316L

Communication:: RS485/Modbus/HART

Pressure:: 0.6~4.0MPa

Connection:: Flange Connection

2'' RS485 Liquid Magnetic Flowmeter 4.0MPa DN50 Sewage 0.5% Electromagnetic Flow Meters for Water Treatment Solutions

Product Description

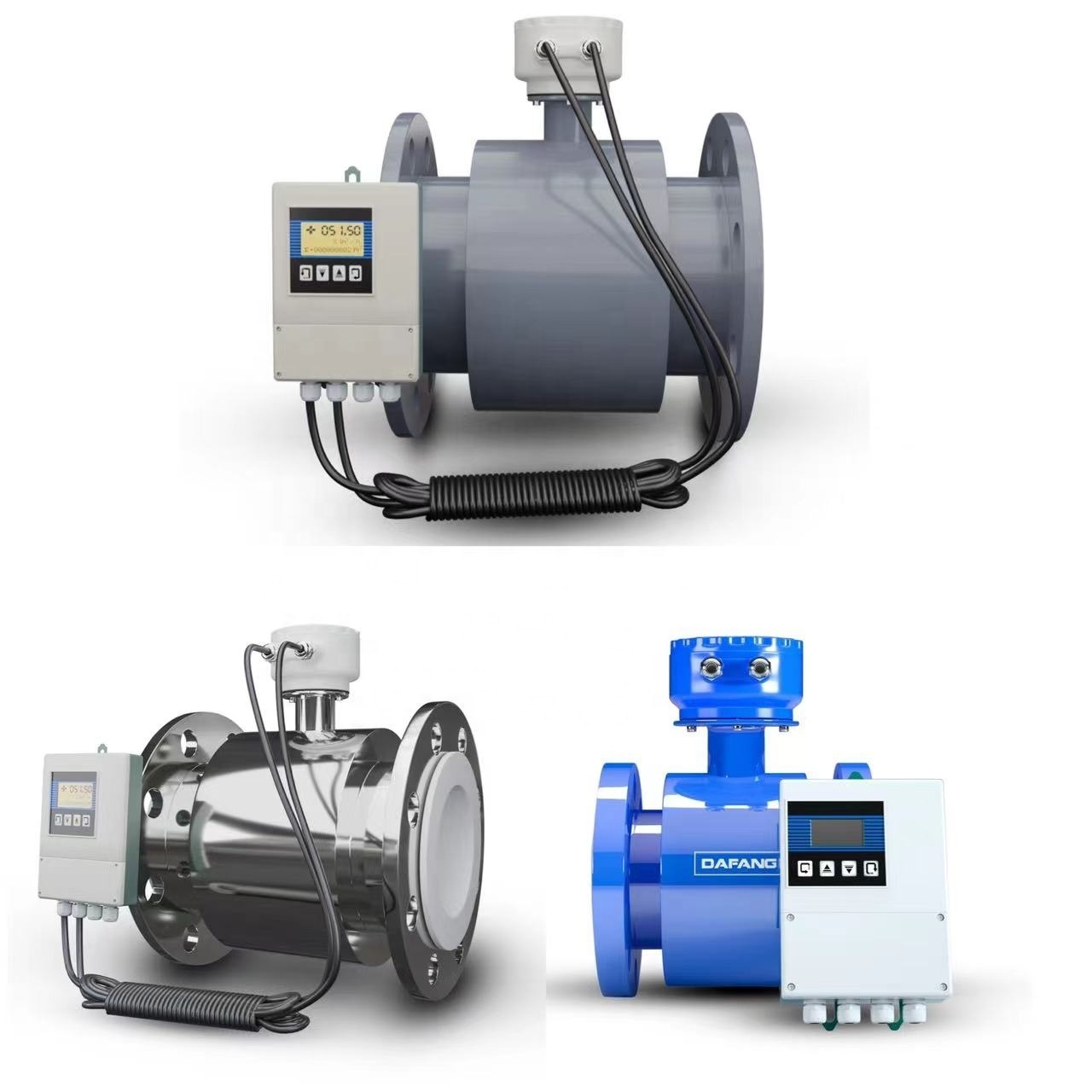

DFDS-FGD Split Type

Carbon steel

The raw material of the main body is made of GB/T699-88 carbon steel, anti-rust paint spraying process, special requirements, paint color can be Customized.

Stainless steel

The raw material of the body shell is made of stainless steel ( SUS316 and SUS304 are optional), and the mirror surface is polished.

Related types

Technical performance parameter

Nominal Diameter	DN10~DN3000mm
Nominal Pressure	0.6~4.0MPa (Higher Pressure can be customized)
Main Power	AC220V 50Hz / DC24V / 3.6V
Language	English, Others can be customized.
Display	Instantaneous flow, flow unit, cumulative flow
Unit	Liter, m³, Gallon (Optional).
Accuracy	±0.5%, ±0.3%
Output Signal	RS485 / 4-20mA / Pulse / Analog
Communication	RS232, RS485 (MODBUS), HART is optional
Lining Material	Neoprene, Polyurethane Rubber, PTFE, F46, PFA
Electrode Material	SUS316, HB, HC, Titanium, Tantalum, Platinum-iridium alloy, Wolfram
Medium Temp.	-20°C ~ +180°C
Ambient Temp.	-25°C ~ +60°C
Medium Electrical Conductivity	≥5us/cm
Measuring Range	1500:1, flow rate<15m/s
Protection Class	IP65, IP67, IP68 (Optional)
