Quick Details
-
Brand Name:
-
Hongjin
-
Product name:
-

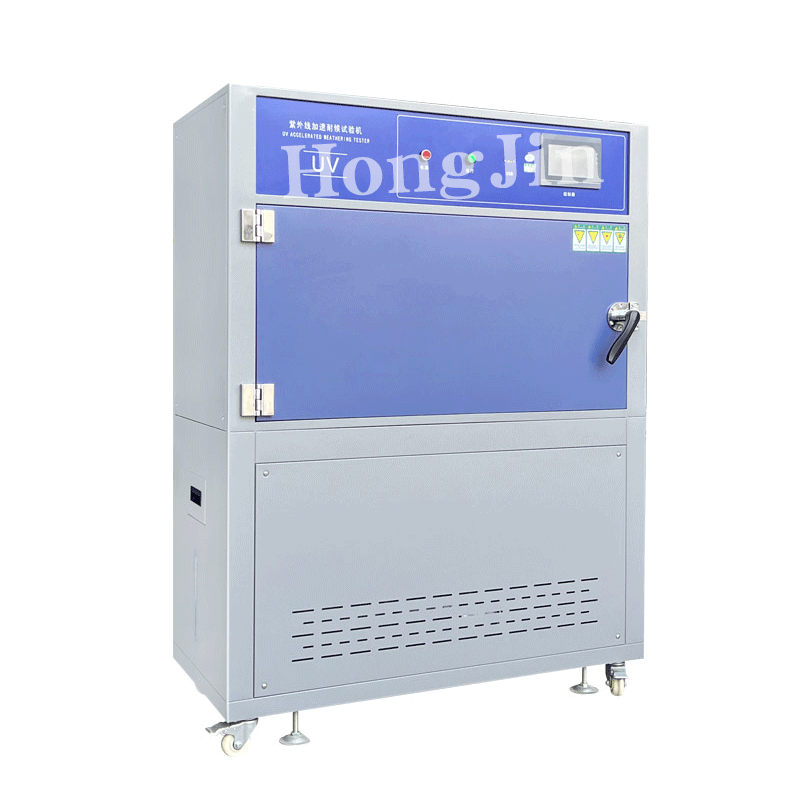

UV Weathering Tester
-
Studio size:
-
1140mm*400mm*380mm
-
Dimensions:
-
1300mm*500mm*1460mm
-
Center distance of lamp:
-
70mm
-
Radiation intensity:
-
1.5W/m2/340nm
-
Temperature resolution:
-
0.1℃
-
Illumination temperature range:
-
50℃~70℃/Temperature tolerance is ±3℃
-
Condensing temperature range:
-
40℃~60℃/Temperature tolerance is ±3℃
-
Blackboard thermometer measuring range:
-
30~80℃/Tolerance is ±1℃
-
Standard specimen size:
-
75*150mm,48pcs
Quick Details
-
Warranty:
-
12 months
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hongjin
-
Product name:
-
UV Weathering Tester
-
Studio size:
-
1140mm*400mm*380mm
-
Dimensions:
-
1300mm*500mm*1460mm
-
Center distance of lamp:
-
70mm
-
Radiation intensity:
-
1.5W/m2/340nm
-
Temperature resolution:
-
0.1℃
-
Illumination temperature range:
-
50℃~70℃/Temperature tolerance is ±3℃
-
Condensing temperature range:
-
40℃~60℃/Temperature tolerance is ±3℃
-
Blackboard thermometer measuring range:
-
30~80℃/Tolerance is ±1℃
-
Standard specimen size:
-
75*150mm,48pcs
Product Paramenters
Scope Of Application:
Uv Aging Test Chamber
The Ultraviolet Aging Test Chamber Can Simulate The Hazards Caused By Sunlight, Rain, And Dew. Uv Uses Fluorescent Ultraviolet Uv Lamps To Simulate The Effect Of Sunlight, And Uses Condensed Moisture To Simulate Rain And Dew. Uv Can Reproduce The Hazards That Occur Outdoors For Months To Years In A Few Days Or Weeks.
Product Features:
This Product Adopts Fluorescent Ultraviolet Lamps That Can Best Simulate The Uv Spectrum In Sunlight, And Combines Temperature Control And Humidity Supply Devices To Simulate Materials That Cause Discoloration, Brightness, And Strength Decline; Cracking, Peeling, Pulverization, Oxidation, Etc. Damaged Sunlight (Uv Section), High Temperature, High Humidity, Condensation, Dark Cycle And Other Factors, And Through The Synergistic Effect Between Ultraviolet Light And Moisture, The Single Light Resistance Or Single Humidity Resistance Of The Material Is Weakened Or Invalidated, So It Is Widely Used In The Evaluation Of The Weather Resistance Of Materials. The Equipment Has The Best Sunlight Uv Simulation, Low Cost Of Use And Maintenance, Easy To Use, The Equipment Uses A Program Controller To Automatically Run The Test Cycle, High Degree Of Automation, Good Light Stability, And High Reproducibility Of Test Results.
Product Process:
The Equipment Shell And Inner Chamber Are Made Of High-Quality Sus304 Stainless Steel Material, Processed And Shaped By The Most Advanced Processing Equipment In China, And The Surface Of The Shell Is Sprayed With Plastic, Which Is Beautiful And Smooth. The Colors Are Coordinated And The Lines Are Smooth. It Avoids The Disadvantages Of Surface Damage Caused By Long-Term Use Of Aluminum Plate Surface Spraying. The Interior Of The Equipment Studio Is Equipped With Humidification Heaters, Liquid Level Switches, Blackboard Temperature Sensors, Etc., And Is Also Equipped With Eight Ultraviolet Radiation Fluorescent Lamps And Ultraviolet Radiation Meters (Optional). High-Quality Fixed Pu Movable Wheels Are Installed At The Bottom Of The Machine, Which Can Easily Move The Machine To The Designated Position, And Finally Fix The Casters.
|
Studio size:
|
1130*400*500(mm)
|
Overall dimensions:
|
1300*1400*700(mm)
|
|||
|
Center distance of the lamp:
|
Adjustable (up to 450mm)
|
|
|
|||
|
Wavelength range:
|
UV-A wavelength range is 315~400nm/UV-B wavelength range is 290~313nm
|
|
|
|||
|
Radiation intensity:
|
1.2W / m2/ 340nm
|
Temperature resolution:
|
0.1 ℃
|
|||
|
Light temperature range:
|
50℃~70℃ / temperature tolerance is ±3℃
|
|
|
|||
|
Condensing temperature range:
|
40℃~60℃/ temperature tolerance is ±3℃
|
|
|
|||
|
Blackboard thermometer Measuring range:
|
30~80℃/ tolerance is ±1℃
|
|
|
|||
|
Temperature control mode:
|
PID self-tuning temperature control mode
|
|
|
|||
|
Humidity range:
|
About 45%~70%R.H (light state)/more than 98% (condensation state)
|
|
|
|||
|
Sink requirements:
|
The water depth is not more than 25mm, and there is an automatic water supply controller
|
|
|
|||
|
Standard specimen size:
|
1000 * 400 mm
|
|
|
|||
|
Recommended instrument environment:
|
5~35℃, 40%~85%R ·H, 300mm away from the wall
|
|
|
|||
|
Distance from the nearest parallel plane between the testpceandthelamp surface:about100mm
|
|
|
|
|||
