Quick Details
-
Place of Origin:
-
Shanghai, China
-
Rated power:
-
25KW
-
Peak Power:
-
60KW
-
Rated Speed:
-
1800rpm
-
Peak Speed:
-
4500rpm
-
Rated torque:
-
133Nm
-
Peak torque:
-
350Nm
-
Rated voltage:
-
340VAC
-
Rated Current:
-
150Arms
-
Protection Grade:
-
IP68
-
Insulation Class:
-
H
Quick Details
-
Dimensions (L x W x H) (mm):
-
-
-
Brand Name:
-
Brogen
-
Model Number:
-
E-boat motor
-
Place of Origin:
-
Shanghai, China
-
Rated power:
-
25KW
-
Peak Power:
-
60KW
-
Rated Speed:
-
1800rpm
-
Peak Speed:
-
4500rpm
-
Rated torque:
-
133Nm
-
Peak torque:
-
350Nm
-
Rated voltage:
-
340VAC
-
Rated Current:
-
150Arms
-
Protection Grade:
-
IP68
-
Insulation Class:
-
H

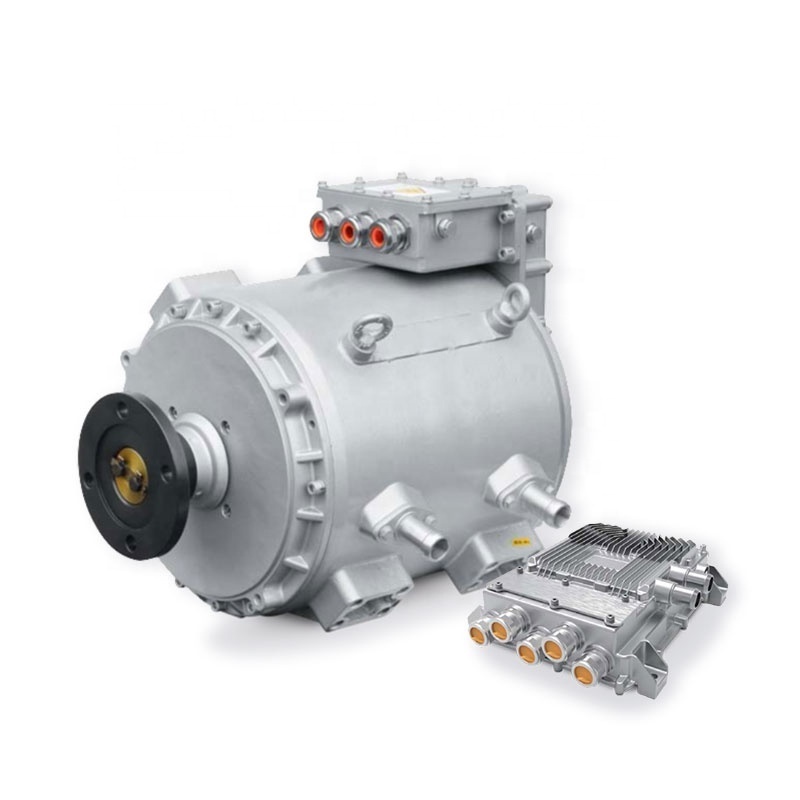

Brogen hot selling 25kw 340V electric boat motor for ship
Product Paramenters
|
Brogen Hot Selling 25KW Intergrated Electric engine For Ship
|
|
|
|
|
|
|||||
|
Rated Power
|
25KW
|
Rated Speed
|
1800rpm
|
Rated Efficiency
|
≥96.5%
|
|||||
|
Peak Power
|
60KW
|
Peak Speed
|
4500rpm
|
Weight
|
45kg
|
|||||
|
Rated Voltage
|
340V-AC
|
Rated Torque
|
133Nm
|
Peak Torque
|
350Nm
|
|||||
|
Rated Current
|
150AC
|
Cooling Method
|
Liquid Cooling
|
Protection/Insulation class
|
IP68/H
|
|||||
Application
Pure electric propulsion system
Pure electric prupulsion system
Main advantage:
•The electric load of the whole ship is powered by the battery system, which is quiet and comfortable, zero pollution, and zero emission
•Daily load is supplied by inverter power supply, with higher power quality
• Lithium battery packs are connected to the grid in clusters, with higher redundancy
•High degree of intelligence, easy operation and small maintenance workload
Hybird propulsion system
Main advantage:
•Through the mixing of oil, gas and electricity to adapt to the needs of multi-working conditions and high-performance ships
• The system has high redundancy, with multiple working modes such as main engine propulsion/hybrid propulsion/pure electric propulsion/shaft belt power generation, etc.
• Optimized energy management strategy to achieve efficient operation of the system under all working conditions
Manufacturing Technique
We, OE work with professional marine design&research technology company and institute in China, we are committed to becoming a leader in electric propulsion and intelligent ship control technology, focusing on the field of ocean engineering and intelligent ship control system.
Our cooperative research institute is currently the professional research institute in China.It has two core products, a traditional diesel-electric power propulsion system using diesel-electric generator sets as energy, and a new-energy power propulsion system using energy storage batteries or fuel cells as energy, and is in a leading position in both domestic technology and the market.
Production line
1. Committed to the new energy industry
We engaged in new energy automobile motors, marine motors, industrial motors, and system assembly sets, etc. It is a high-tech enterprise integrating independen t development, design, production, sales, and service.
Provide modular system solutions for the new energy field and industrial equipment manufacturing industry.
2. Complete production line layout
There are five production lines for power motor system assemblies in the passenger car, logistics, SUV, ship and machinery industries.
3. Advanced technology
Permanent magnet high-efficiency motors, wheel motors, hub motors, extended-range generators, high- torque motors without a reel,mine car motors, industrial motors, marine motors, stone plate motors, auxiliary motors, etc.
Is this a factory, an agent or a trading company?
Shanghai OE Industrial Co., Ltd. is committed to providing system solutions for the new energy industry, and providing new energy vehicle accessories including motors, electric controls, batteries, electronic steering, electric air conditioners, air compressors, chargers and so on.Products are manufactured by our own factory or the factory of strategic partners. Which models are the motors used in?
Our motor is used in 1. Electric Vehicle 2.Electric Truck 3. Electric Bus 4.Electric ship 5. Electric construction machinery 6. Electric tractors 7. Industrial field
What accessories do you mainly sell for new energy vehicles?
Trucks, buses, boats: motors, electric controls, batteries, OBC, water pumps, air conditioning systems, steering pumps, air compressors.
Car: All above except battery. Electric Charging station
Electric bus chassis and bus parts as a whole.
Electric bus chassis and bus parts as a whole.
What is the difference between an AC motor and a DC motor?
The biggest difference: their power source is a direct current, one is alternating current.
