Quick Details
-
thickness:
-
4-8mm
-
ply:
-
2-5
-
weight:
-
3200-4800g/m2
-
Usage:
-
Cement plant or bulk cement
-
Max Width:
-
2600mm
-
Standard or Nonstandard:
-
Standard
-
Supply Type:
-
Make-to-Order
-
Technics:
-
Woven
Quick Details
-
Power:
-
Customized
-
Warranty:
-
Unavailable
-
Place of Origin:
-
Tianjin, China
-
thickness:
-
4-8mm
-
ply:
-
2-5
-
weight:
-
3200-4800g/m2
-
Usage:
-
Cement plant or bulk cement
-
Max Width:
-
2600mm
-
Standard or Nonstandard:
-
Standard
-
Supply Type:
-
Make-to-Order
-
Technics:
-
Woven

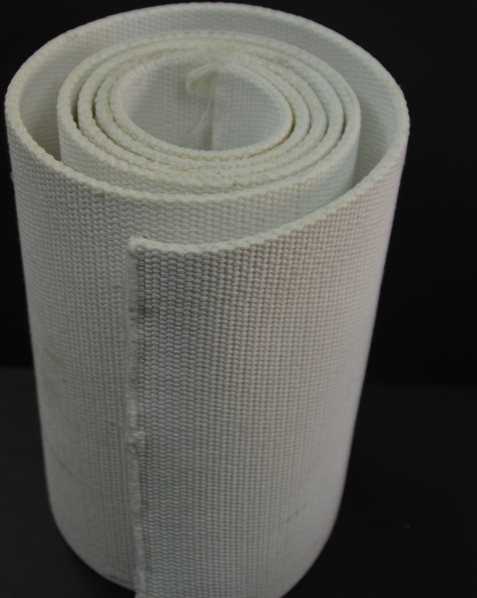

Air slide Fabrics
- Air Slide Fabrics produced from 100% Polyester (spun/filament), 100% cotto in widths of 200mm up to 2000mm and thickness in 3.0, 4.0/4.5, 4.8 /5.0, 6.0/6.5/8.0/10/12mm.
- Available in roll lengths and cut pieces to actual installation size & shape.
- Materials inspected & tested with Test & Guarantee Certificates provided.
- Air Slide Fabrics for all Pneumatic gravity Conveyor System i.e. Air Slide, Fluidor, Fluxo-Channel Fluid Slide, Aeration – Box, Airlift or Aerpole pumps in Sillo, Bin & Hopper.
- For bulk material conveying fine crushed and ground powdered chemical mineral substances used to manufacture cement as well as any other similar powdered products.
- Our “Air Slide Fabrics” have good abrasion resistance offered in 100% Synthetic qualities of polyester to withstand organic and inorganic chemicals, acids, alkalis and oxidizing agents contained in raw mix, clinker and cement.
We can produce as customers special request.
In cement plant:
An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.
fluidization silo:
Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.
Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.
Specific ations :
| TYPE | MATERIAL | PLY | TENSILE STRENGTH | HEAT RESISTANCE ℃ | THICKNESS | WEIGHT/m2 | MAX WIDTH | AIR RESISTANCE IN | ||
| WARP >N/mm | WEFT >N/mm | 2m3/m2/minH2O mm | ||||||||
| AP4-4 | 100%Polyester | 4 | 360 | 270 | 150 | 4 | 3200g | 2000mm | Type A;80-120 | |
| Type B:120-150 | ||||||||||
| Type C:150-200 | ||||||||||
| AP4-5 | 100%Polyester | 4 | 360 | 270 | 150 | 5 | 3600g | 2000mm | Type A;80-120 | |
| Type B:120-150 | ||||||||||
| Type C:150-200 | ||||||||||
| AP4-6 | 100%Polyester | 4 | 360 | 270 | 150 | 6 | 4000g | 2000mm | Type A;80-120 | |
| Type B:120-150 | ||||||||||
| Type C:150-200 | ||||||||||
| AP4-7 | 100%Polyester | 4 | 360 | 270 | 150 | 7 | 4400g | 2000mm | Type A;80-120 | |
| Type B:120-150 | ||||||||||
| Type C:150-200 | ||||||||||
| AP4-8 | 100%Polyester | 4 | 360 | 270 | 150 | 8 | 4800g | 2000mm | Type A;80-120 | |
| Type B:120-150 | ||||||||||
| Type C:150-200 | ||||||||||
| AC4-5 | 100%Cotton | 4 | 150 | 100 | 150 | 5 | 3800g | 2000mm | Type A;80-120 | |
| Type B:120-150 | ||||||||||
| Type C:150-200 | ||||||||||
In machinery:
Silos / Tanks
Discharging systems
Warehouse units
Mixing equipment
Homogenizing systems
Chute Bottoms
Conveyor systems
Ventilator systems
Aeration systems
Vehicles
Silo truck discharging cones
Railway wagon discharging cones
Vessel aeration & discharging bottoms
Container aeration & discharging bottoms
Powder Coating Machinery
Bottoms for sinter basin
