Quick Details
-
Dimension(L*W*H):
-
14000x2200x1900mm
-
Weight (KG):
-
5000
-
Power (kW):
-
20
-
Product Name:
-
Cylinder High Quality Cylinder Boring and Honing Machine
-
Key Word:
-
Cylinder Boring and Honing Machine
-
Certification:
-
ISO9001
-
Application:
-
Cylinder Repair
-
Service:
-
24*7 Technical Support
-
Usage:
-
Tractor Cylinders
-
Surface Roughness:
-
Ra0.3
-
Functions:
-
Metal Deep Hole Honing
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HITECH cylinder boring and honing machine
-
Voltage:
-
380V, 220V/380V/415V/440V
-
Dimension(L*W*H):
-
14000x2200x1900mm
-
Weight (KG):
-
5000
-
Power (kW):
-
20
-
Product Name:
-
Cylinder High Quality Cylinder Boring and Honing Machine
-
Key Word:
-
Cylinder Boring and Honing Machine
-
Certification:
-
ISO9001
-
Application:
-
Cylinder Repair
-
Service:
-
24*7 Technical Support
-
Usage:
-
Tractor Cylinders
-
Surface Roughness:
-
Ra0.3
-
Functions:
-
Metal Deep Hole Honing

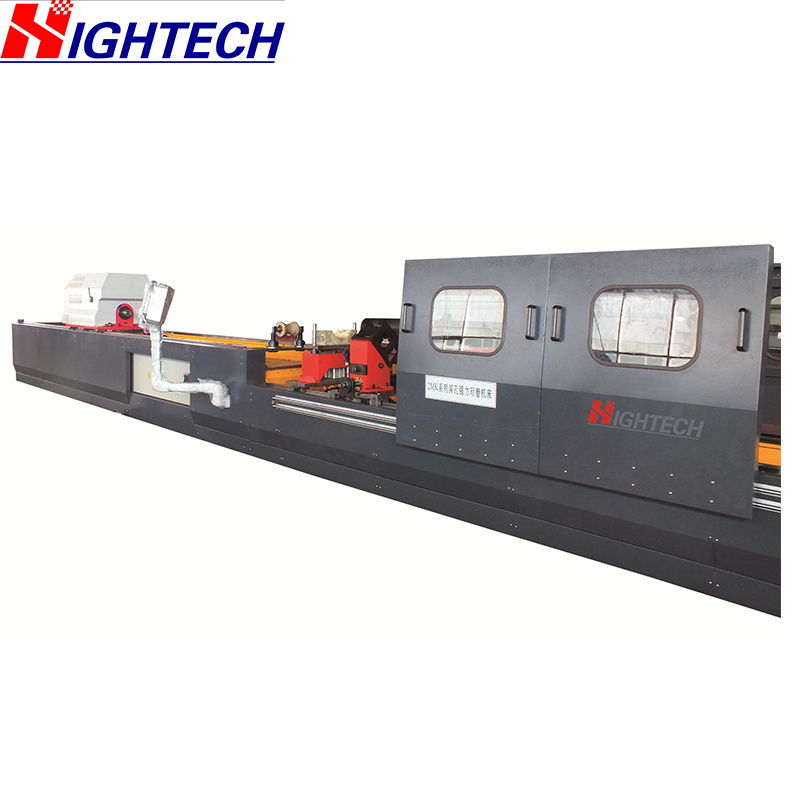

Product Pictures
CNC Deep Hole Tube Honing Machine for Deep Hole Cylinder Manufacturing Horizontal Honing Type Tube Honer
This deep hole honing machine is specialized to process cylindrical deep hole parts.It can drill holes,bore holes and honing.
Inner chip removal method(BTA),which means,oil feeder supplies oil,oil flows through cutting area and brings chips(which is inside boring bar) to the back conveyor of machine.
When boring,it adopts push boring method,oil feeder supplies oil,cooling liquid conveys chips to the head of machine.
This machine can be also equipped with hydraulic harmomegathus honing head.
Machine has associated hydraulic system,cooling system and chip-removal system.
Inner chip removal method(BTA),which means,oil feeder supplies oil,oil flows through cutting area and brings chips(which is inside boring bar) to the back conveyor of machine.
When boring,it adopts push boring method,oil feeder supplies oil,cooling liquid conveys chips to the head of machine.
This machine can be also equipped with hydraulic harmomegathus honing head.
Machine has associated hydraulic system,cooling system and chip-removal system.
Product Parameters
|
1
|
Honing diameter
|
Φ60~200mm
|
|
2
|
Center height
|
400mm
|
|
3
|
Process depth
|
600~8000mm
|
|
4
|
3-jaw chuck diameter
|
Φ500mm
|
|
5
|
Clamping range of center rest
|
Φ50~400mm
|
|
6
|
Main motor
|
N=30kW,n=1460r/min
|
|
7
|
Spindle speed
|
50~800rpm,12 grades
|
|
8
|
Boring bar box motor
|
N=15kW,n=1460r/min
|
|
9
|
Boring bar box spindle speed
|
50~400rpm,12 grades
|
|
10
|
Feeding speed
|
5~5000mm/min(stepless)
|
|
11
|
CNC system
|
SIEMENS 808D
|
|
12
|
Feed motor
|
40N.M,SIEMENES servo motor
|
|
13
|
Oil feeder motor
|
32N.M,CTB servo motor
|
|
14
|
Cooling pump motor
|
N=5.5kW,n=1440r/min(4 groups)
|
|
15
|
Nominal pressure of cooling system
|
2.5MPa
|
|
16
|
Cooling system flow rate
|
100,200,300,400L/min
|
|
17
|
Cooling tank volume
|
4000L
|
|
18
|
Cooling pump flow rate of honing
|
50L/min
|
|
19
|
Cooling tank volume of honing
|
950L
|
Details Images
Workpiece
