Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Voltage:
-
220V(optional 110V)
-
Dimension(L*W*H):
-
141*111*150cm
-
Weight:
-
555 kg
-
Product name:
-
5010PX paper cutter machine
-
Keyword:
-
hydraulic paper cutter machine
-
Name:
-
Paper processing machinery
-
Item:
-
paper cutting machine automatic
-
Max.paper cutting width:
-
500*500mm
-
Max.paper cutting height:
-
100mm
-
Precision:
-
±0.3mm
-
Min.Cutting depth:
-
30mm
-
Table length infront knife:
-
400mm
-
Cutting length behind knife:
-
500mm
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
Other
-
Max. workable width:
-
500mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Voltage:
-
220V(optional 110V)
-
Dimension(L*W*H):
-
141*111*150cm
-
Weight:
-
555 kg
-
Product name:
-
5010PX paper cutter machine
-
Keyword:
-
hydraulic paper cutter machine
-
Name:
-
Paper processing machinery
-
Item:
-
paper cutting machine automatic
-
Max.paper cutting width:
-
500*500mm
-
Max.paper cutting height:
-
100mm
-
Precision:
-
±0.3mm
-
Min.Cutting depth:
-
30mm
-
Table length infront knife:
-
400mm
-
Cutting length behind knife:
-
500mm
Product Description
|

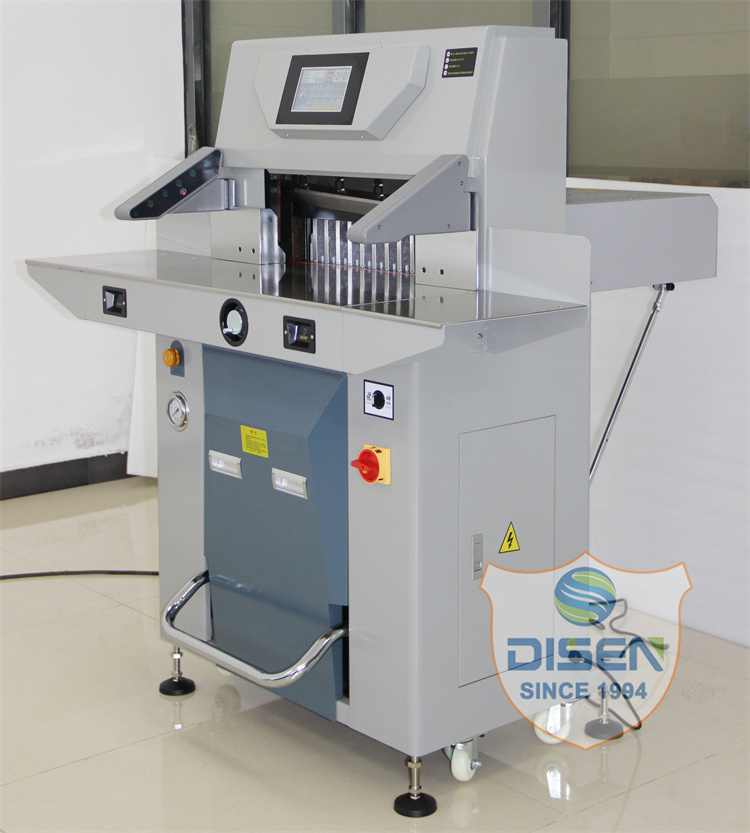

5010px hydraulic paper cutting machine
|
|
|
|
Max.cutting size(mm)
|
500mm
|
|
|
Precision
|
±0.3mm
|
|
|
Max.Cutting Thickness
|
100mm
|
|
|
Min Cutting Width
|
30mm
|
|
|
Motor power
|
AC 220V/2.2KW
|
|
|
Clamp paper
|
Hydraulic
|
|
|
Push paper
|
Hydraulic
|
|
|
Safety
|
Previous Infrared Safety Protection Design
|
|
|
Computer control
|
Touch Screen
|
|
|
N.W.
|
400KG
|
|
|
G.W.
|
430KG
|
|
|
Packing
|
147*112*102cm
|
|
|
1.Remember 100groups*21 cut times of data.
2.Foot pedal for pressing paper before cut 3.Chrome steel table 4.Big LCD screen 5.Double shaft to push paper avoid deviation 6.Unique design for change blade with button. 7.Professional design for infrared bar to protect your safe. |
|
|
|
SPECIFICATIONS FOR PAPER CUTTER
|
|
|
|
|||
|
Model
|
DSO-5010PX
|
DSO-5210TX
|
DSO-6710PX
|
|||
|
Max.cutting size
|
500*500*100mm
|
520*520*100mm
|
670*670*100mm
|
|||
|
Precision
|
±0.3mm
|
±0.3mm
|
±0.3mm
|
|||
|
Motor power
|
AC 110/220V,2.2KW
|
AC 220V/2.2KW
|
AC 220V/3KW
|
|||
|
Clamp paper
|
Hydraulic
|
|
|
|||
|
Push paper
|
Hydraulic
|
|
|
|||
|
Safty
|
Infrared bar
|
|
|
|||
|
Push Paper Guide
|
Double shafts
|
|
|
|||
|
Computer Control
|
7''touch screen
|
|
|
|||
|
G.W.
|
430KG
|
550KG
|
555KG
|
|||
|
N.W.
|
400KG
|
485kg
|
480KG
|
|||
|
Packing size
|
147*122*102cm
|
157*102*127cm
|
141*111*150cm
|
|||
