300W 500w 1kw 2kw 3kw 5kw 10KW Hybrid Solar Energy Electricity Generator Vertical Axis Wind Power system wind Turbine For Sale

300W 500w 1kw 2kw 3kw 5kw 10KW Hybrid Solar Energy Electricity Generator Vertical Axis Wind Power system wind Turbine For Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $626

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output Voltage (V):: 12V/24V/48V/96V/120V/220V/380V/480V/600V

Output Frequency:: 200w-100kw

Pre-sales project design:: Y

Product name:: Generator Vertical Axis Wind Power system wind Turbine

Wind generator:: 1KW/48V

Solar panel type:: 550W

Solar panel size:: 2279*1134*35mm

Wind power controller:: 1KW/DC48V

Photovoltaic controller:: 48V

Wind power off-grid inverter:: 5KW/220V inverter

Battery:: 200AH/12V

Battery size:: 530*245*245mm

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: DHC

Model Number:: ES-H5kw

Output Voltage (V):: 12V/24V/48V/96V/120V/220V/380V/480V/600V

Output Frequency:: 200w-100kw

Pre-sales project design:: Y

Product name:: Generator Vertical Axis Wind Power system wind Turbine

Wind generator:: 1KW/48V

Solar panel type:: 550W

Solar panel size:: 2279*1134*35mm

Wind power controller:: 1KW/DC48V

Photovoltaic controller:: 48V

Wind power off-grid inverter:: 5KW/220V inverter

Battery:: 200AH/12V

Battery size:: 530*245*245mm

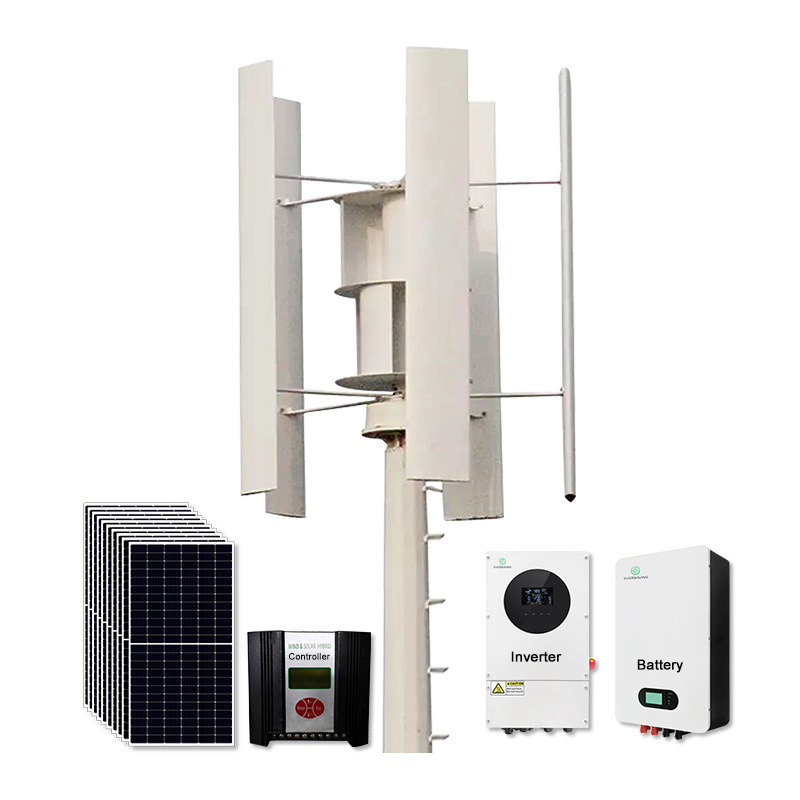

Solar Wind Hybrid Power System

5KW solar wind energy systems
Product	Model	Quantity	Description
Wind turbine generator	ES-H 1kw/48v	1	Generator, blade, tail rudder, hood hub
Solar energy panel	Single crystal solar panel 550w	8	Size: 2279113435mm
Solar energy support	550w stent	8	Customer choice
Wind power controller	1kw/DC48v	1	DC: 48v AC: 110v/220v single phase
Photovoltaic controller	48v	1	DC: 48v AC: 110v/220v single phase	DC: 48v; AC:110v/220v single phase
Wind power off-grid inverter	5kw/220v inverter	1	DC 48V input; MPPT intelligent control
Colloid cell	200ah/12v	12	Size：530245245mm

System connection scheme

Solar Wind Hybrid Power System

1. The solar wind hybrid system is mainly composed of wind turbines, solar photovoltaic cells, controllers, batteries, inverters, AC and DC loads and other parts. The system is a composite renewable energy power generation system integrating wind energy, solar energy, battery and other energy power generation technologies and system intelligent control technology.

2. Utilizing the complementarity of wind energy and solar energy, a relatively stable output can be obtained, and the solar wind hybrid system has high stability and reliability.

Wind Turbine

> 3 years warranty, 20+ year service life

> Advantage: light weight, small volume > Starting wind speed: 2m/s > Rated wind speed: 12m/s > Security wind speed: ≤50m/s

The wind power generation part is to use the wind turbine to convert the wind energy into mechanical energy, convert the mechanical energy into electrical energy through the wind generator, then charge the battery through the controller, and supply power to the load through the inverter.

Solar Panel

> Max power: 550w > Size: 2279*1134*35 mm > Glass: 3.2mm Tem pered > 25 years power output guarantee

The photovoltaic power generation part uses the photovoltaic effect of the solar panel to convert light energy into electrical energy, then charges the battery, and converts direct current into alternating current through the inverter to supply power to the load.

Inverter

> Pure sine wave output

> IP65 waterproof and dust proof makes the inverter suitable for various working environments

The inverter converts the direct current in the battery into a standard 220v alternating current to ensure the normal use of alternating current load equipment. At the same time, it also has an automatic voltage stabilization function, which can improve the power supply quality of the wind-solar hybrid power generation system.

Battery

> Wall-mounted to save space > Standard equipped with LED display, real-time understanding of battery status

The battery part is composed of multiple batteries, which play two roles of energy regulation and load balance in the system at the same time.

It converts the electrical energy output by the wind power generation system and the photovoltaic power generation system into chemical energy and stores it for use when the power supply is insufficient.

Controller

> DC 48V input; MPPT intelligent control > Protection Function: Solar reverse charge > protection: Solar reverse connection protection, > Battery-over-charge-protection > Battery-reverse connection protection

The control part continuously switches and adjusts the working state of the battery pack according to the changes in the intensity of sunshine, wind force and load.

Cables

> 3 pcs 16mm2*35CM battery cable 4 pcs 16mm2*2M battery connect cable > 4mm2 PV cable 20M

6mm2 wind cable 50M > terminals and MC4 + 1P63A Battery switch

Wind Turbine

Model

ES-HQ1-1KW

ES-HQ1-2KW

ES-HQ1-3KW

ES-HQ1-4KW

ES-HQ1-5KW

ES-HQ1-10KW

Rated power

1KW

2KW

3KW

4KW

5KW

10KW

Max power

1.5KW

2.5KW

3.5KW

5KW

6KW

12KW

Nominal voltage

96V/120V

120V/220V

220V/380V

Start-up wind speed

2.5m/s

Rated wind speed

12m/s

Survival wind speed

40m/s

45m/s

Top net weight

120KG

180KG

220KG

280KG

350KG

960KG

Wind wheel diameter

1.5m

1.67 m

2.1 m

2.3 m

2.63 m

4.8 m

Number of blades

3 pieces/5pieces

Blades material

aluminium alloy

Fuselage material

8A3 carbon steel

Generator

Three phase ac permanent magnet generator/Maglev generators

Control System

electric eddy brake

Yaw Mode

The wind Angle automatically

Lubrication mode

self-lubricating

Tower form

Cable/free-standing tower

Working temperature

-40℃-80℃

Project Cases

Recommend Products

All types of our wind generator

We mainly have several types of wind turbine generator above, as well as solar wind turbine system. The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
