Quick Details
-
After-sales Service Provided:
-
Online support
-
Steel Wire Ring inner diameter:
-
65-850mm
-
Power:
-
1.5-3KW
-
Wire diameter:
-
2-6MM,2-8MM,2-10MM
-
Speed:
-
35m/min
-
Manufacturing experience:
-
10 years
-
Exported country:
-
more than 20
-
Name:
-
steel bar/rebar ring making machine
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Amitycare
-
Weight (KG):
-
1000
-
After-sales Service Provided:
-
Online support
-
Steel Wire Ring inner diameter:
-
65-850mm
-
Power:
-
1.5-3KW
-
Wire diameter:
-
2-6MM,2-8MM,2-10MM
-
Speed:
-
35m/min
-
Manufacturing experience:
-
10 years
-
Exported country:
-
more than 20
-
Name:
-
steel bar/rebar ring making machine
|
code |
wire Dia (mm) |
ring inner Dia (mm) |
power (kw) |
speed (m/min) |
size(mm) |
|
DQΦ2-Φ6 |
2—6 |
65-850 |
1.5 |
35 |
800*1300*1400 |
|
DQΦ2-Φ8 |
2—8 |
65-850 |
2.2 |
35 |
900*1300*1600 |
|
DQΦ3-Φ10 |
2--10 |
100-850 |
3 |
35 |
1000*1300*1800 |
|
speacial requirements ,we can customize for you |
|||||

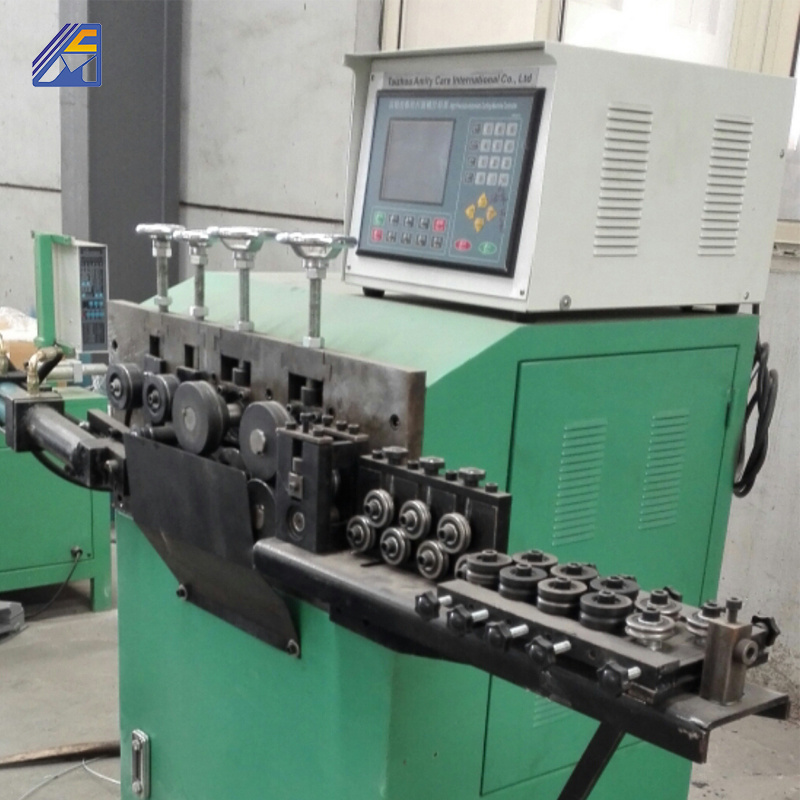

Circle steel wire ring making machine/round bending machine alternate name roll machine, the circle machine, fully automatic digital looped machine, knitting machine is the present domestic most advanced, combines the advantages of Japan, Taiwan and the domestic product, seiko produced beautiful;Advanced control technology, stable performance;Production speed, high accurate product size precision;Have manual slow and reversing function, easy operation, power saving, high yield, low production cost, is popular among customers at home and abroad.
1. Save power, only one set of three-phase motor
2. Smooth and steady: Adopts hydraulic transmission, speed is adjustable,
3. Fast: Transmission is direct, double-gear and double-drive device makes it more powerful
4. Good rigidity,
5. Control system is with the select keys of fast feeding, slow feeding, backward, cutting, auto and manual.
6. With water cycle system, which can cool the machine directly to prevent temperature rise and ensue the looping precision.
