Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
4.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue elephant
-
Voltage:
-
AC380V/50/60Hz,3PH (Option: 220V)
-
Weight (KG):
-
1500
-
Application:
-
Processing complicated work pieces like 3D or 4D
-
Feature:
-
Designed with rotary device
-
Working area:
-
1300*2500*200mm
-
Spindle:
-
9.0KW Italy ATC air cooling spindle
-
Motor and drive:
-
Stepper motor FL118 model and YAKO 2811 bigger driver
-
Inverter:
-
11kw Delta inverter
-
Reducer:
-
Japan Shimpo reducer
-
Rotary:
-
rotary axis fixed at the side of router table
-
Pump and dust collector:
-
option
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Spindle Motor Power(kW):
-
4.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue elephant
-
Voltage:
-
AC380V/50/60Hz,3PH (Option: 220V)
-
Weight (KG):
-
1500
-
Application:
-
Processing complicated work pieces like 3D or 4D
-
Feature:
-
Designed with rotary device
-
Working area:
-
1300*2500*200mm
-
Spindle:
-
9.0KW Italy ATC air cooling spindle
-
Motor and drive:
-
Stepper motor FL118 model and YAKO 2811 bigger driver
-
Inverter:
-
11kw Delta inverter
-
Reducer:
-
Japan Shimpo reducer
-
Rotary:
-
rotary axis fixed at the side of router table
-
Pump and dust collector:
-
option
-
After-sales Service Provided:
-
Video technical support
Product Description

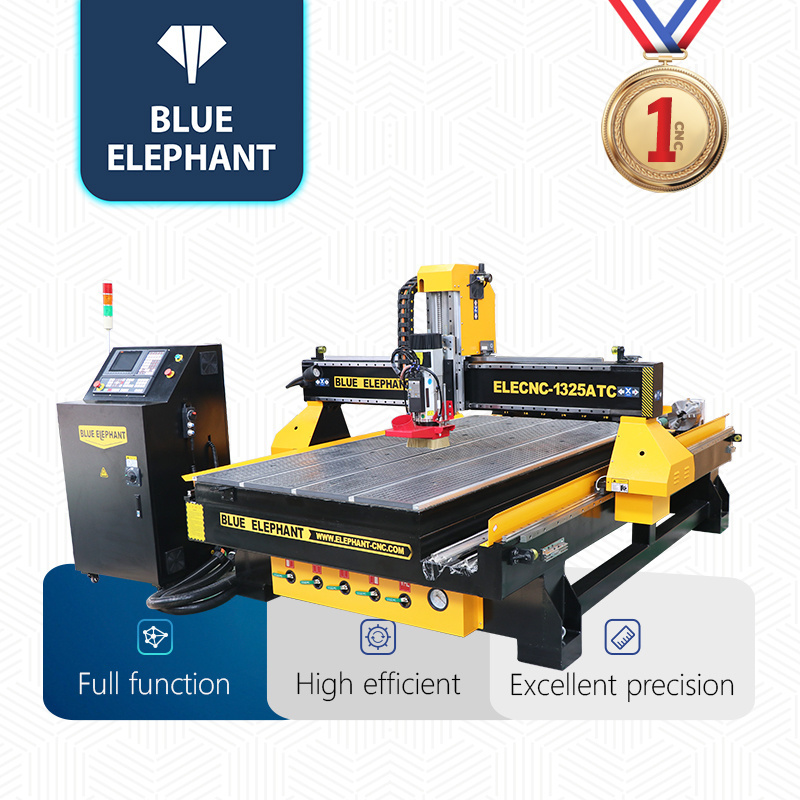

Furniture making machine 1212 1530 1325 rotary woodworking cnc atc axis wood router machine for cylindrical workpiece
Features
1. High-performance machine with extraordinary value, but at a very economical price;
2. Removable rotary device: its diameter and length can be made according to your requirements;
3. The machine is equipped with Italy HSD ATC air cooling spindle, and its speed can be reached to 24000RPM;
4. Rigid vacuum table with grids and T-slots, maximize the vacuum hold-down power and also enables you to clamp the workpiece in place;
2. Removable rotary device: its diameter and length can be made according to your requirements;
3. The machine is equipped with Italy HSD ATC air cooling spindle, and its speed can be reached to 24000RPM;
4. Rigid vacuum table with grids and T-slots, maximize the vacuum hold-down power and also enables you to clamp the workpiece in place;
|
Description
|
Parameter
|
|
Lubrication system
|
Automatic Lubrication system
|
|
X,Y,Z Working Area
|
1300x2500x200mm
|
|
Structure
|
Welded Structure
|
|
Working voltage
|
380v, 3 phase, 50/60HZ(Option）
|
|
Table Surface
|
Vacuum and T-slot working table
|
|
Spindle
|
9kw Italy HSD atc air cooling spindle
|
|
Spindle speed
|
0-24000RPM
|
|
X, Y Structure
|
Rack and Pinion Drive, Hiwin Rail Linear Bearings
|
|
Z Structure
|
Hiwin Rail Linear Bearings and Ball Screw
|
|
Rotary device
|
300mm diameter*2500mm length
|
|
Drive Motors
|
Japan YASKAWA servo motor
|
|
Software Compatibility
|
Artcam Software
|
|
Tool sensor
|
Auto tool sensor calibration
|
Product Details
Control system
The control system of CNC router adoptsthe more advanced Taiwan Syntec system , which is widely acclaimed internationally and can perfectly control 3axis ,4 , 5 , 6 , axis . The Syntec system can work online and Wifi links , greatly increasing the intelligence of the device.
CNC head
ATC CNC router selects Italian HSD air-cooled spindle , power : 9.5KW.Choose from manual , quick-release ,high-power and high-speed spindles for optimum processing of rigid sheet materials.
Carousel automatic tool changer
The number of tools in the carousel magazine can be customized according to the user's processing requirements. The tool changer can be placed next to the spindle or on the side of the gantry.This carousel tool change method has the feature of faster tool change speed, so the production efficiency is higher.
Safety System
ATC CNC router has the unique safety protection system and provides external emergency stop function for equipment users.This function can effectively protect the personal safety of the equipment users,meet the European safety CE standards, and is very popular among users .
