Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
xinhailong
-
Model Number:
-
1020, 1020
-
Torque:
-
96 g.cm, 96g.cm
-
Output Power:
-
2.1-5.2
-
Rated voltage:
-
12V
-
Stall current:
-
1800mA
-
Keywords:
-
12V coreless dc motor
-
Motor Diameter:
-
10mm
-
Noise:
-
Low Noise Level
-
Weight:
-
7.5g
-
Shaft diameter:
-
1-1.4mm
Quick Details
-
Speed(RPM):
-
21000rpm
-
Continuous Current(A):
-
10mA~20mA
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
xinhailong
-
Model Number:
-
1020, 1020
-
Torque:
-
96 g.cm, 96g.cm
-
Output Power:
-
2.1-5.2
-
Rated voltage:
-
12V
-
Stall current:
-
1800mA
-
Keywords:
-
12V coreless dc motor
-
Motor Diameter:
-
10mm
-
Noise:
-
Low Noise Level
-
Weight:
-
7.5g
-
Shaft diameter:
-
1-1.4mm
Product Description
1020 motor applications: remote control toys, aircraft, small household appliances, medical equipment, electronic tools, beauty instruments, etc.
Specification
|
item
|
Specifcation
|
Specifcation
|
|
Rated voltage
|
12V
|
12V
|
|
No load speed
|
21000rpm
|
13000rpm
|
|
No load current
|
20mA
|
10mA
|
|
Terminal resistance
|
6.7Ω
|
16.3Ω
|
|
Stall current
|
1800mA
|
740mA
|
|
Weight
|
7.5g
|
7.5g
|
|
Model Number
|
1020
|
1020
|
|
Output Power
|
5.2W
|
2.1W
|
|
Torque
|
96g.cm
|
63g.cm
|
|
Keywords
|
12v coreless dc motor
|
12v coreless dc motor
|
|
Motor Diameter
|
10mm
|
10mm
|
|
Noise
|
Low Noise Level
|
|
|
Shaft diameter
|
1.2mm
|
1.4mm
|
|
Torque constant
|
54.5g.cm/A
|
86.5g.cm/A
|

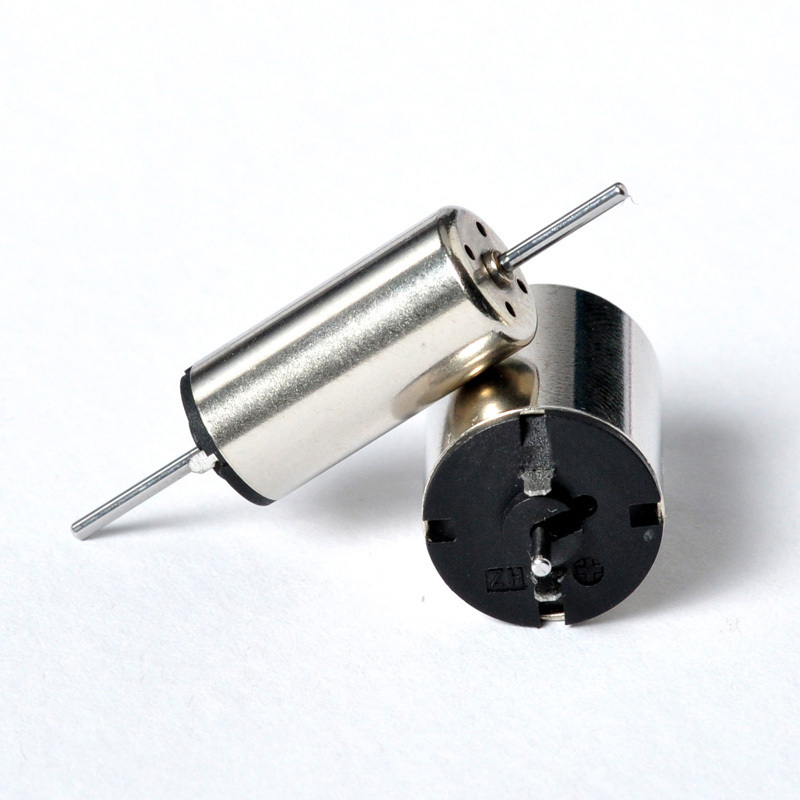

Details Images
