Quick Details
-
Brand Name:
-
DSDST
-
Product name:
-
brass ball valve
-
Connection:
-
Thread
-
Valve Type:
-
Two-Way, On / Off
-
Valve Style:
-
Two-Piece Body - Standard Port
-
Working pressure:
-
Cold Working Pressure
-
Valve Operator:
-
manual
-
Body material:
-
Brass
-
Size:
-
1/2"-2"
-
Medium:
-
water
-
Working Temperature:
-
120
Quick Details
-
Port Size:
-
1/4" NPT female
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
DS-BV01
-
Brand Name:
-
DSDST
-
Product name:
-
brass ball valve
-
Connection:
-
Thread
-
Valve Type:
-
Two-Way, On / Off
-
Valve Style:
-
Two-Piece Body - Standard Port
-
Working pressure:
-
Cold Working Pressure
-
Valve Operator:
-
manual
-
Body material:
-
Brass
-
Size:
-
1/2"-2"
-
Medium:
-
water
-
Working Temperature:
-
120

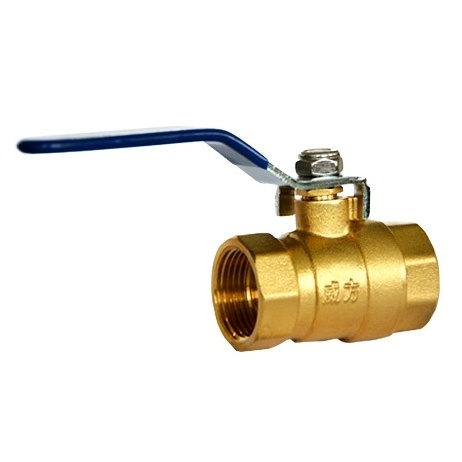

high pressure brass ball gas valve internal thread high temperature copper ball valve switch for water
General Industrial Series two piece standard port brass bar stock body with 316 stainless steel ball and stem ball valve. Seats and Stem Seal are glass reinforced P.T.F.E. (Teflon®).
Pipe connections are NPT (National Pipe Taper) female screwed end. Valve Body Pressure Rating 720 psi C.W.P. (Cold Working Pressure), Maximum Pressure Differential 400 psi – also see Differential Pressure Temperature Chart), Saturated Steam 150 PSI and a vacuum rating of 20 Microns. Self-compensating stem seal design.
WARNING: Attention California Product Users: Brass raw materials used to produce this valve contains a small percentage of lead. Cancer or Reproductive Harm. See California Product Specifications which can be found at www.geminivalve.com Products are marketed per Gemini Valve Standard Terms & Conditions. All Gemini Valve Products MADE IN USA.
Valve operator is manual Lever style handle with vinyl grip secured with locking stem nut.
