Quick Details
-
Brand Name:
-
BOVE
-
Model Number:
-
B97 VPW
-
Communication:
-
Mbus, RS485, Lora, NB,
-
Certification:
-
MID
-
Size:
-
DN15-DN20
-
Power supply:
-
Lithium Battery
-
Material:
-
Brass Material
-
Protection class:
-
IP68
-
Type name:
-
B97 VPW
-
Standard:
-
ISO 4064 ClassB
-
Output:
-
LoRaWAN, NB, Modbus
-
Temperature:
-
0-50
Quick Details
-
Warranty:
-
3 years
-
Type:
-
Prepaid water meters
-
Place of Origin:
-
China
-
Brand Name:
-
BOVE
-
Model Number:
-
B97 VPW
-
Communication:
-
Mbus, RS485, Lora, NB,
-
Certification:
-
MID
-
Size:
-
DN15-DN20
-
Power supply:
-
Lithium Battery
-
Material:
-
Brass Material
-
Protection class:
-
IP68
-
Type name:
-
B97 VPW
-
Standard:
-
ISO 4064 ClassB
-
Output:
-
LoRaWAN, NB, Modbus
-
Temperature:
-
0-50
Products Description

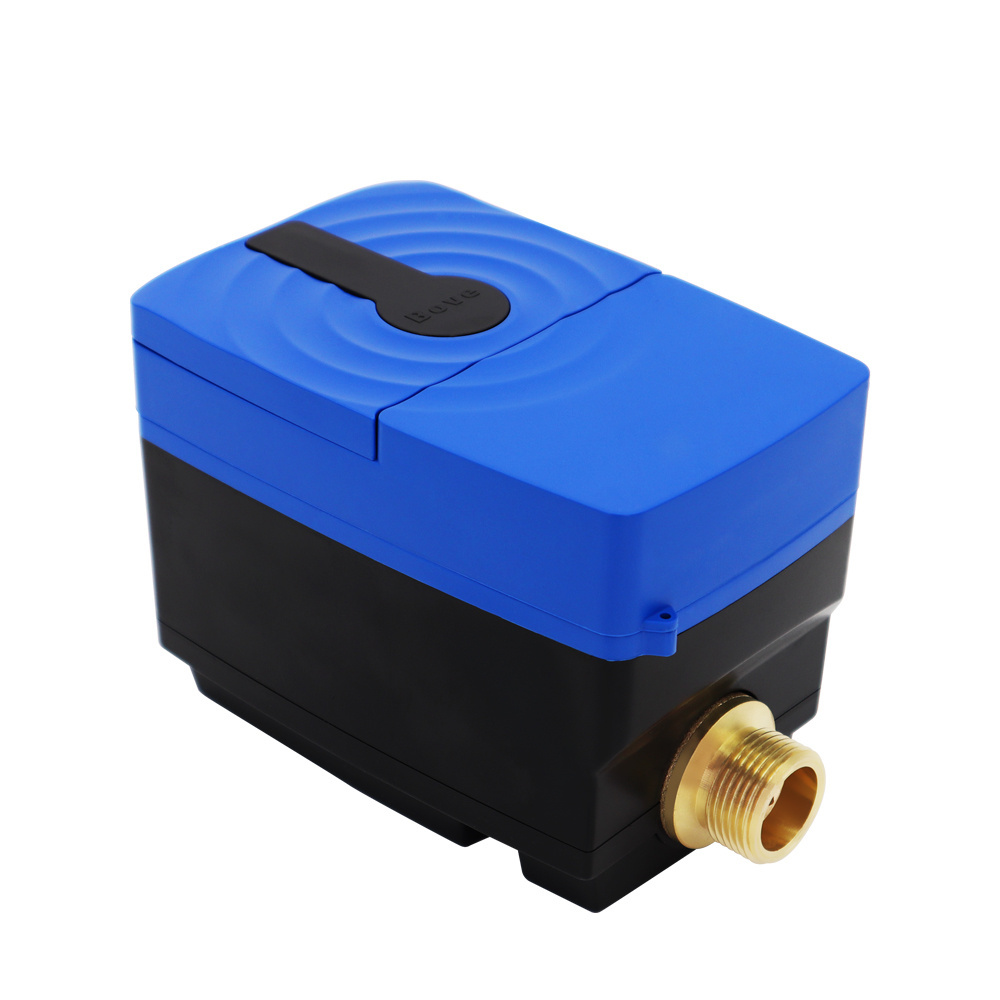

Valve Control /Prepaid
Ultrasonic Water Meter
B97 VPW
Specification
|
Pipe Diameter
|
DN15
|
DN20
|
|
|
Minimum Flow Rate Q1 (m3/h) @R400
|
0.00625
|
0.01
|
|
|
Permanent Flow Rate Q3 (m3/h)
|
2.5
|
4
|
|
|
Overload Flow Rate Q4 (m3/h)
|
3.125
|
5
|
|
|
End Connection
|
G¾ ’
|
G1’
|
|
|
Length (mm)
|
165
|
195
|
|
|
Width (mm)
|
90
|
100
|
|
|
Height (mm)
|
103
|
100
|
|
|
Temperature
|
Medium Range: 0.1℃…...30/ 50℃ (T30 / T50)
Ambient temperature: 5~55 ℃
Storage temperature: -20~60 ℃
|
|
|
|
Pipe Materials
|
Brass 59-1
|
|
|
|
Metrological Class
|
Class 2
|
|
|
|
Ratio (Q3/Q1) (optional)
|
R160, R250, R400
|
|
|
|
Maximum Admissible Pressure
|
1.6 MPa
|
|
|
|
Pressure Loss
|
△P < 40 kPa
|
|
|
|
Pressure Stage
|
PN16
|
|
|
|
Installation Position (optional)
|
U5 / D3, U10 / D5
|
|
|
|
Protection Class (optional)
|
IP65 / IP68
|
|
|
|
Battery Lifespan (optional)
|
3.6 VDC lithium battery, 6 / 10 / 16 years lifetime
|
|
|
|
Data Storage (optional)
|
24/120 logs, daily / weekly / monthly
|
|
|
|
Electromagnetic Environmental Class
|
E1
|
|
|
|
Mechanical Environmental Class
|
M1
|
|
|
|
Mechanical Environmental Conditions
|
B
|
|
|
|
Interface & Communication (optional)
|
IrDA, LoRaWAN, Sigfox, NB-IoT, RS485, MBus
|
|
|
|
Assembly Orientation
|
H, V, H/ V
|
|
|
|
Display and Indication
|
Unit: m3 / Gallon (optional) LCD: 8-digits
|
|
|
