Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-

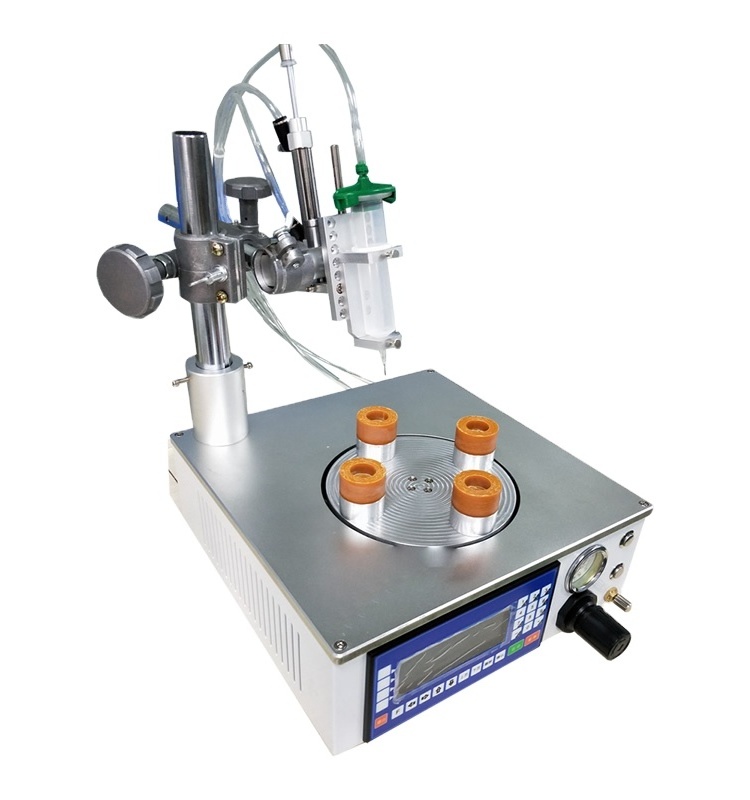

glue dispensing machine
-
Voltage:
-
220V
-
Weight:
-
25KG
-
Color:
-
White
-
Usage:
-
LED/buzzer
-
Dispensing time adjustment:
-
60s
-
Dimensions:
-
300mm*300mm*110mm
-
LCD display:
-
English display
-
Advantage:
-
dispensing glue
-
Used for:
-
LED Bulb
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIUJIANG
-
Weight (KG):
-
26
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
glue dispensing machine
-
Voltage:
-
220V
-
Weight:
-
25KG
-
Color:
-
White
-
Usage:
-
LED/buzzer
-
Dispensing time adjustment:
-
60s
-
Dimensions:
-
300mm*300mm*110mm
-
LCD display:
-
English display
-
Advantage:
-
dispensing glue
-
Used for:
-
LED Bulb
1.parameter
Dimensions: 550 * 650 * 750(mm)
Weight: 20KG
Power supply voltage : 220 (V)
Power : 150 (W)
Air source : 0.7
Spit time adjustment : 0.1 (S)
Spit out the frequency of 60 (times / min)
The minimum amount of discharge 0.1 (ml)
This product is two-axis, with a foot switch.
Differences: with a syringe with a pressure barrel(10L)
Automatic: automatic operation, air operation, single step operation
Manual: Positive and negative motor, back to the program zero, back to mechanical zero, output control .
2. System composition
Control system consists of the following components:
High-performance, high-speed 32-bit
LCD (resolution: 192 × 64)
Special motion control chip (signal output: 5V pulse + direction)
Input and output (14 photoelectric isolation 24V input, 8 photoelectric isolation 24V output, single channel rated 500mA)
The maximum program line 480 lines
Contact key array (28 keys) .\
3 technical indicators
Minimum data unit: 0.001mm
Maximum data size: ± 99999.999mm
Fast motion speed limit: 9000mmmin (when pulse equivalent is 0.001mm)
Maximum processing speed limit: 9000mmmin (when the pulse equivalent is 0.001mm)
The maximum pulse output frequency: 150KHz
System main functions: automatic, manual, program, parameters, self-test, settings and so on.
Work table rotary diameter 250
Drive precision stepper motor
Motor speed 0 ~ 200 rpm
Mechanical repeat ability ± 0.01mm
Up and down the action frequency is greater than 60 times
I / O signal input - No contact or contact
Output Dispensing ends standard level signal output
Provide air pressure 0.3MPa above
Power supply AC100V-110V, 60Hz
AC220V-240V, 50Hz, 50W
Dimensions 300mm × 300mm × 110mm
Weight 6kg
4.for glue
For colloids: red plastic, yellow plastic, silver paste, UV curable plastic, lubricants, epoxy resin, fast curing plastic, silicone resin and other materials
Product use: speakers, sound film, buzzer, bearings, micro-motors, watches, voice coil, bald, such as circular glue operation.
Packaging :wooden
Shipping:3 to 8 days afer payment
