Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Deye
-
Model Number:
-
SUN-7.6/8/10/12K-SG02LP1-EU-AM3
-
Input Voltage:
-
500V
-
Output Voltage:
-
370
-
Size:
-
420*670*233
-
Certificate:
-
EVDE4105, IEC61727/62116
-
Warranty:
-
5 Years/10 Years
-
Weight:
-
35.6
-
Battery Type:
-
Lead-acid or Lithium-ion
-
Battery Voltage Range(V):
-
40-60
-
Charging Strategy for Li-ion Battery:
-
Self-adaption to BMS
-
Number of battery input:
-
1
-
Operating Temperature Range:
-
-40 to +60℃, >45℃ Derating
-
Permissible Ambient Humidity:
-
0~100%
-
Permissible Altitude:
-
2000m
-
Noise:
-
<45
-
Ingress Protection(IP) Rating:
-
IP 65
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
96.5%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Deye
-
Model Number:
-
SUN-7.6/8/10/12K-SG02LP1-EU-AM3
-
Input Voltage:
-
500V
-
Output Voltage:
-
370
-
Size:
-
420*670*233
-
Certificate:
-
EVDE4105, IEC61727/62116
-
Warranty:
-
5 Years/10 Years
-
Weight:
-
35.6
-
Battery Type:
-
Lead-acid or Lithium-ion
-
Battery Voltage Range(V):
-
40-60
-
Charging Strategy for Li-ion Battery:
-
Self-adaption to BMS
-
Number of battery input:
-
1
-
Operating Temperature Range:
-
-40 to +60℃, >45℃ Derating
-
Permissible Ambient Humidity:
-
0~100%
-
Permissible Altitude:
-
2000m
-
Noise:
-
<45
-
Ingress Protection(IP) Rating:
-
IP 65
Product Description

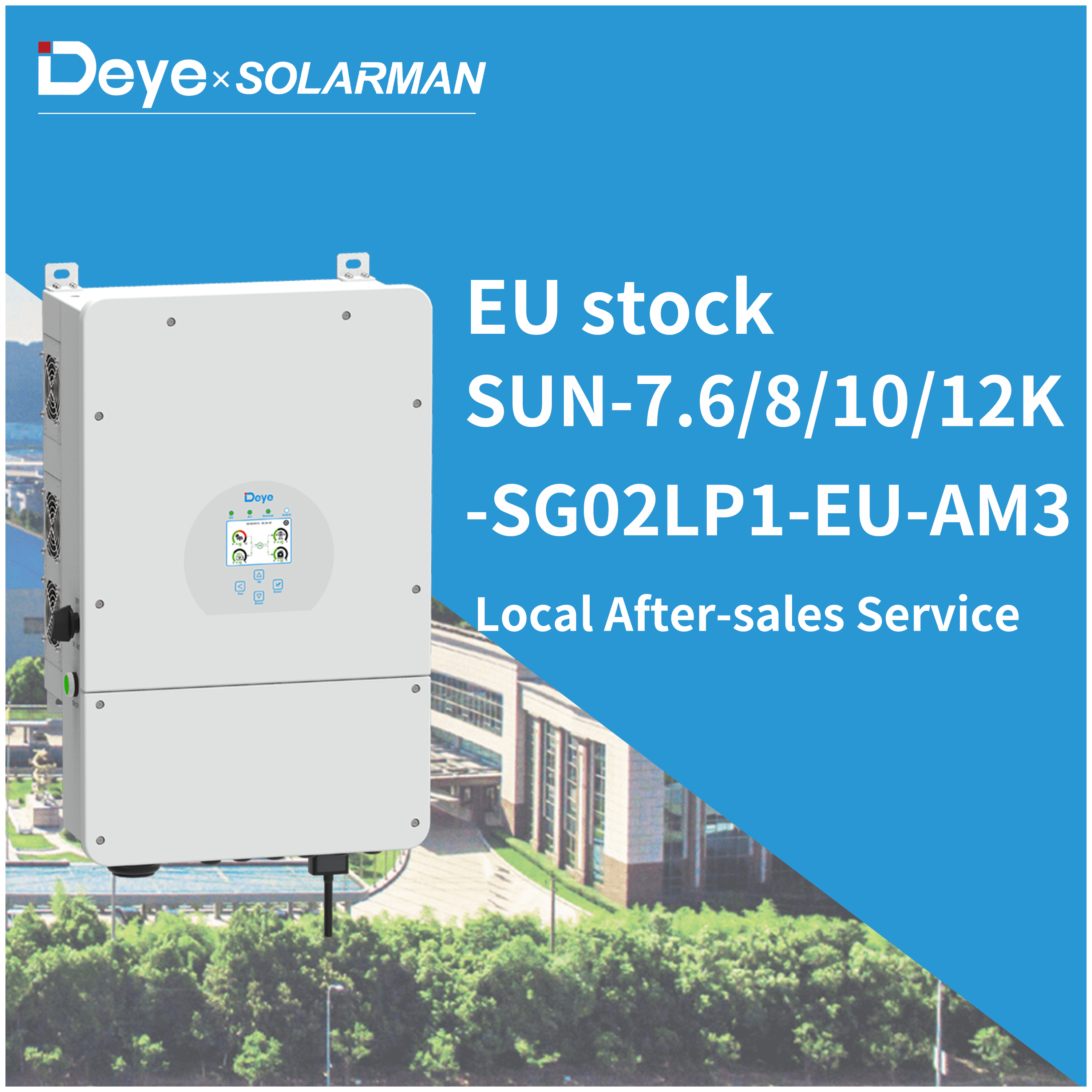

Deye hybrid inverter,
SUN-7.6/8/10/12K-SG02LP1-EU-AM3
,
is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via
SUN-7.6/8/10/12K-SG02LP1-EU-AM3
.
Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication
Specification
|
Model
|
SUN-7.6K-SG02LP1-EU-AM2
|
SUN-8K-SG02LP1-EU-AM2
|
SUN-10K-SG02LP1-EU-AM3
|
SUN-12K-SG02LP1-EU-AM3
|
||||
|
Battery Input Data
|
|
|
|
|
||||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
|
|
||||
|
Battery Voltage Range(V)
|
40-60
|
|
|
|
||||
|
Max.Charging Current(A)
|
190
|
190
|
220
|
250
|
||||
|
Max.Discharging Current(A)
|
190
|
190
|
220
|
250
|
||||
|
Charging Strategy for Li-ion Battery
|
Self-adaption to BMS
|
|
|
|
||||
|
Number of battery input
|
1
|
|
|
|
||||
|
PV String Input Data
|
|
|
|
|
||||
|
Max DC Input Power（W）
|
9880
|
10400
|
13000
|
15600
|
||||
|
Max DC Input Voltage（V）
|
500
|
|
|
|
||||
|
Start-up Voltage（V）
|
125
|
|
|
|
||||
|
MPPT Voltage Range（V）
|
150-425
|
|
|
|
||||
|
Rated DC Input Voltage(V)
|
370
|
|
|
|
||||
|
Max. Operating PV Input Current (A)
|
26+26
|
|
26+26+26
|
|
||||
|
Max. Input Short-Circuit Current (A)
|
44+44
|
|
44+44+44
|
|
||||
|
No.of MPP Trackers/No.of String Per MPP Tracker
|
2/2+2
|
|
3/2+2+2
|
|
||||
|
General Data
|
|
|
|
|
||||
|
Operating Temperature Range
|
-40 to +60℃, >45℃ Derating
|
|
|
|
||||
|
Permissible Ambient Humidity
|
0~100%
|
|
|
|
||||
|
Permissible Altitude
|
2000m
|
|
|
|
||||
|
Noise
|
＜45
|
|
|
|
||||
|
Ingress Protection(IP) Rating
|
IP 65
|
|
|
|
||||
|
Inverter Topology
|
Non-Isolated
|
|
|
|
||||
|
Over Voltage Category
|
OVC II(DC),OVC IV(AC)
|
|
|
|
||||
|
Cabinet size（W*H*D）[mm]
|
420×670×233（Excluding connectors and brackets）
|
|
|
|
||||
|
Weight[kg]
|
35.6
|
|
|
|
||||
|
Warranty
|
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
|
|
|
|
||||
|
Type Of Cooling
|
Intelligent air cooling
|
|
|
|
||||
|
Grid Regulation
|
EVDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
G98, G99, C10-11, UNE217002, NBR16149/NBR16150
|
|
|
|
||||
|
Safety EMC/Standard
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
|
|
|
||||
Basic System Architecture
The following illustration shows basic application of this inverter
.
It is a complete power generation operation system.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.
Consult with SOLARMAN for other possible system architectures depending on your requirements.
