Quick Details
-
Model Number:
-
HLT
-
Product Name:
-

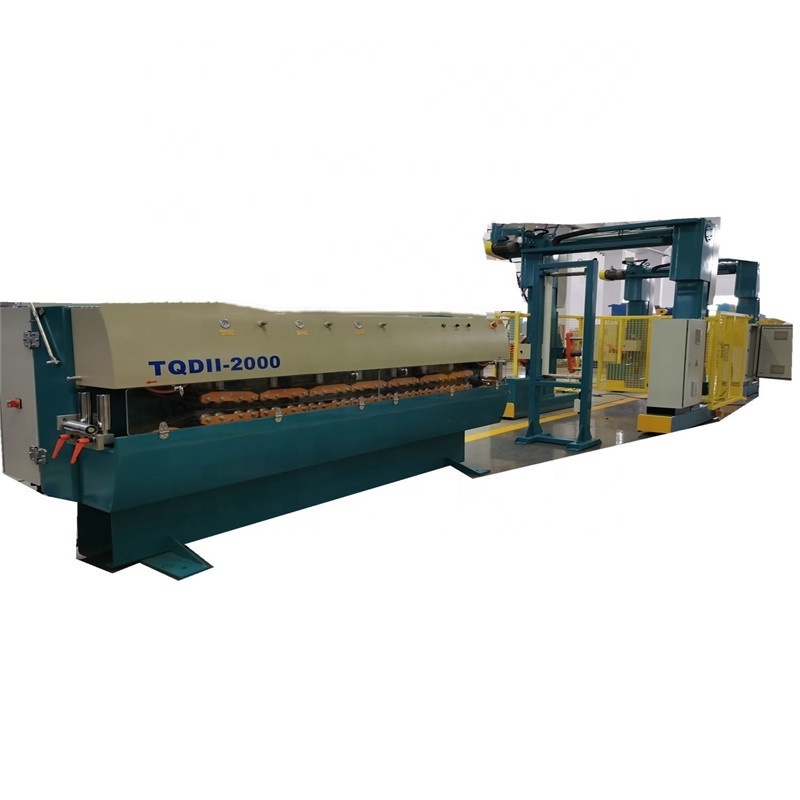

2000KG/2500KG Wire and Cable Puller Machine
-
Cable Od:
-
2-300mm
-
Tractive Force:
-
200~15000kg
-
Speed:
-
20-150m/Min
-
The Bearings of Main Parts:
-
Hrb / Zwz/ Lyc
-
Belt Grip Length:
-
520-5000mm
-
Belt Width:
-
70-240mm
-
No. of Cylinder:
-
3-14pairs
-
Motor Power:
-
3-55kw
-
Motor Speed:
-
1500rpm
Quick Details
-
Use:
-
Extruding
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HLT
-
Model Number:
-
HLT
-
Product Name:
-
2000KG/2500KG Wire and Cable Puller Machine
-
Cable Od:
-
2-300mm
-
Tractive Force:
-
200~15000kg
-
Speed:
-
20-150m/Min
-
The Bearings of Main Parts:
-
Hrb / Zwz/ Lyc
-
Belt Grip Length:
-
520-5000mm
-
Belt Width:
-
70-240mm
-
No. of Cylinder:
-
3-14pairs
-
Motor Power:
-
3-55kw
-
Motor Speed:
-
1500rpm
1. The whole frame is made of high-quality steel plate after bending and splicing, and the appearance is novel.
2. The equipment adopts the motor-transmission gearbox, a reduction gearbox, and a hard drive structure of the upper and lower helical gears, a crawler wheel, stable transmission, large carrying capacity and convenient maintenance.
3. The whole series has more than ten specifications of 200kg-15000kg, and there are two kinds of speed regulation structures of Z4 DC motor or variable-frequency motor for users to choose.
4. With electronic meter, it can display the line speed and meter length in time.
5. It is equipped with a ground shaft transmission structure for users to use in cable, armor, copper tape shielding and winding production lines.
6. The tension tractor adopts magnetic powder tension control, which is used for the traction of the insulation and sheath extrusion production line. The tension is instantaneously adjustable, preventing the abrasion of the cable in the sink after the extrusion, and effectively solving the synchronization problem. And the effect of uneven tension on the wire diameter.
7. The small tractor has an overall moving or upper frame moving structure, which is convenient for users to use in special processes and effectively improve the repeated service life of the track
Machine details
| Model | Type 200 | Type 300 | Type 500 | Type 800 | Type 1250 | Type 1600 | Type 2000 |
| Cable through the outer diameter(mm) | 2~20 | 5~25 | 5~40 | 8~60 | 10~80 | 15~100 | 20~120 |
| Max. traction force(kg) | 200 | 300 | 500 | 800 | 1250 | 1600 | 2000 |
| Speed(m/min) | 150 | 150 | 100 | 100 | 80 | 80 | 60 |
| Track contact length(mm) | 520 | 620 | 750 | 1200 | 1500 | 1900 | 2100 |
| Track width(mm) | 70 | 70 | 80 | 100 | 120 | 120 | 135 |
| Number of cylinder(pair) | 3 | 3 | 3 | 5 | 5 | 6 | 7 |
| Motor power(kw) | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 | 11 |
| Motor speed(rpm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Center height(mm) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Overall dimension (LxWxH) | 1450x720x1500 | 1500x720x1500 | 1800x1000x1600 | 2500x1150x1650 | 2750x1150x1700 | 3100x1150x1700 | 3450x1200x1750 |
Cable pulling machine
IV. Related Equipment
Cable extrusion machine
The unit comfortable soft PVC, such as poly(PVC by hot press method to be extruded insulation wire core)
Cable take-up and pay-off machine
Mainly used for winding various signal cables and optical cables.
Cable strander
V. Package
VI. Company profile
Wuxi Longterm Machinery Technologies Co., Ltd
is a collection of scientific research and development and production of wire and cable equipment and a variety of efficient energy-saving extrusion production line of key enterprises, so far, the main product including wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
Factory show
VII.Customer
Customer visiting
Cable extrusion production line in the USA
Customers from the Philippines DOGE came to our factory for cable extrusion machine inspection
VIII.FAQ
− Q: Are you the manufacturer or trading company?
A: We are the manufacturer. We have a group of highly qualified engineers and experts, who have been working in the field of OFC equipment for more than 20 years.
− Q: What is your company's main production?
A: We specialized in all types of cable machine researching and manufacturing. Our products include wire and cable Insulation and Sheathing production Line, TQD series Pneumatic Type belt Caterpillar, LF series Portal Type Pay-off, LSP series Portal Type Take-up, Various Wire Accumulator, Capstan Haul-off, Pay-off & Take-up, Cooling Water Trough, and Optical Fiber Equipment, Communication Cable Equipment, Signal Cable Equipment.
− Q: What can we offer our customers?
A: Our professional production and technical personnel can train our customers' employees and ensure the smooth production of customers. And will provide our customers with after-sales service.
− Q: How long is the machine warranty?
A: Warranty period of one year (since the completion of mechanical debugging at the buyer's factory)
−
Q:
Why do I choose your company?
A: We have more than 10 years of professional experience in the production of cable machinery, providing high-quality, high-security products.
We have an experienced team of skilled workers and engineers.
We can support overseas training engineers.
We can customize the design, to accept the customer's sample design.
We can provide customers with after-sales service.
Enable us to make a quotation for you. pls kindly revert to us for the below information:
2. Reel/Flange Diameter, we need to quote correct take-up and pay off machine
3. Could you please send us a picture of your cable structure?
4. Extrusion material, I mean cable sheath material? Cable sheath thickness?
5.Cable size?
6.Cable pulling speed?
