Quick Details
-
Brand Name:
-
JNDO
-
Fork Length:
-
1060mm
-
Fork Width:
-
680mm
-
Overall Dimensions:
-
3CBM
-
Weight (KG):
-
175 kg
-
Type:
-
Manual Pallet Truck
-
After-sales Service Provided:
-
No overseas service provided
-
Color:
-
red, blue or customized
-
Lifting height:
-
1.6m-4.5m
-
Name:
-
Hydraulic High Lift Hand Pallet Truck/ Hand stacker
-
Waranty:
-
1 Year
-
Power type:
-
AC Power
-
Keywords:
-
Forlift
-
Loading Capacity:
-
1000-3000 (kg)
Quick Details
-
Min. Lifting Height:
-
80mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JNDO
-
Fork Length:
-
1060mm
-
Fork Width:
-
680mm
-
Overall Dimensions:
-
3CBM
-
Weight (KG):
-
175 kg
-
Type:
-
Manual Pallet Truck
-
After-sales Service Provided:
-
No overseas service provided
-
Color:
-
red, blue or customized
-
Lifting height:
-
1.6m-4.5m
-
Name:
-
Hydraulic High Lift Hand Pallet Truck/ Hand stacker
-
Waranty:
-
1 Year
-
Power type:
-
AC Power
-
Keywords:
-
Forlift
-
Loading Capacity:
-
1000-3000 (kg)

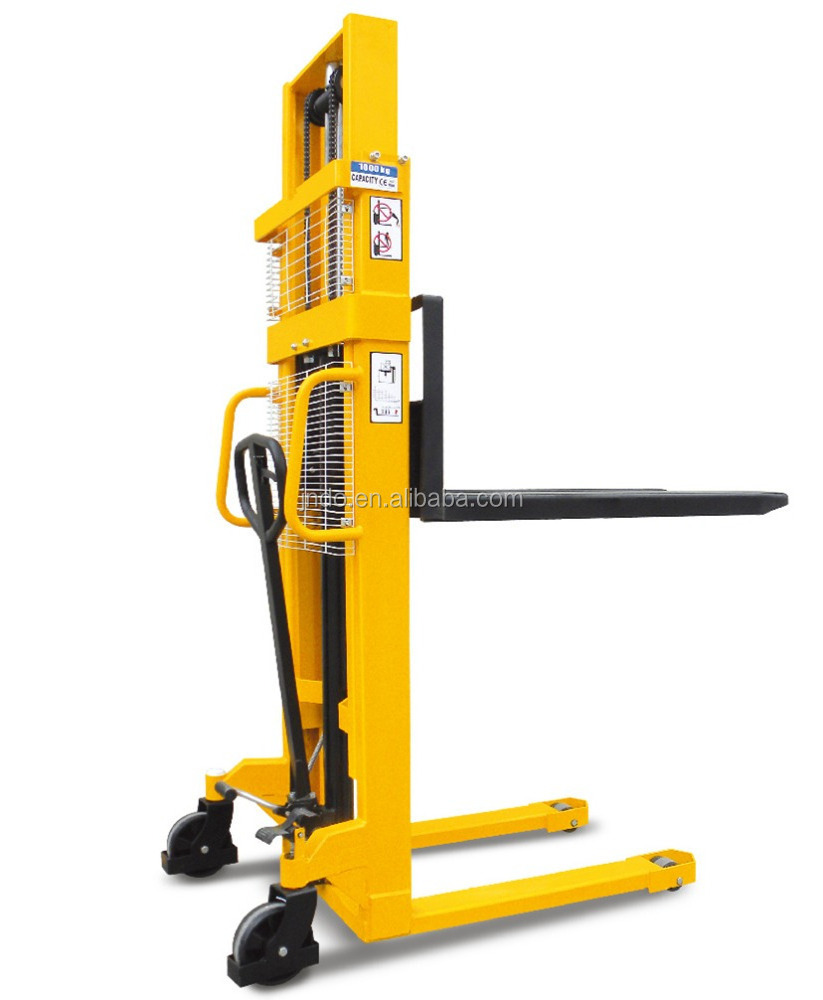

Hydraulic High lift hand pallet truck/ jack
Advantages of Hydraulic High lift hand pallet truck/ jack :
1. Robust Steel profile construction.
2. An economical lift to handle tasks from transporting dies and moulds skids and pallets.
3. Sturdy and compact enough to fit through standard doors and to operate in congested areas.
4.engineered for smooth performance and exceptional durability.
5. Lifting function operated by foot and hand controls.
|
Specification of Hydraulic High lift hand pallet truck/ jack |
||||||
|
Model |
Loading capacity |
Lifting Height |
H. of Mast |
Forks Height |
Fork Type |
Weight |
|
MS-100/16 |
1000Kg |
1600mm |
2080mm |
85mm |
Fixed 550x1150mm |
180kg |
|
MS-100/20 |
1000Kg |
2000mm |
1580mm |
85mm |
Fixed 550x1150mm |
200kg |
|
MS-100/25 |
1000Kg |
2500mm |
1830mm |
85mm |
Fixed 550x1150mm |
220kg |
|
MS-100/30 |
1000Kg |
3000mm |
1830mm |
85mm |
Fixed 550x1150mm |
240kg |
|
MS-150/16 |
1500Kg |
1600mm |
1830mm |
85mm |
Fixed 550x1150mm |
210kg |
|
MS-150/20 |
1500Kg |
2000mm |
1830mm |
85mm |
Fixed 550x1150mm |
230kg |
|
MS-150/25 |
1500Kg |
2500mm |
1830mm |
85mm |
Fixed 550x1150mm |
250kg |
|
MS-150/30 |
1500Kg |
3000mm |
2080mm |
85mm |
Fixed 550x1150mm |
270kg |
|
MS-200/16 |
2000Kg |
1600mm |
2080mm |
85mm |
Fixed 550x1150mm |
240kg |
|
MS-200/20 |
2000Kg |
2000mm |
1580mm |
85mm |
Fixed 550x1150mm |
260kg |
|
VR-MS-200/25 |
2000Kg |
2500mm |
1830mm |
85mm |
Fixed 550x1150mm |
280kg |
