18L 20L Two Nozzles Grease Lubricant Plastic Barrel Drum Tub Cartridge Weighing Filling Machine
18L 20L Two Nozzles Grease Lubricant Plastic Barrel Drum Tub Cartridge Weighing Filling Machine
18L 20L Two Nozzles Grease Lubricant Plastic Barrel Drum Tub Cartridge Weighing Filling Machine
18L 20L Two Nozzles Grease Lubricant Plastic Barrel Drum Tub Cartridge Weighing Filling Machine
18L 20L Two Nozzles Grease Lubricant Plastic Barrel Drum Tub Cartridge Weighing Filling Machine
18L 20L Two Nozzles Grease Lubricant Plastic Barrel Drum Tub Cartridge Weighing Filling Machine
18L 20L Two Nozzles Grease Lubricant Plastic Barrel Drum Tub Cartridge Weighing Filling Machine
18L 20L Two Nozzles Grease Lubricant Plastic Barrel Drum Tub Cartridge Weighing Filling Machine

18L 20L Two Nozzles Grease Lubricant Plastic Barrel Drum Tub Cartridge Weighing Filling Machine

FOB Reference Price: Get Latest Price
≥1 Pieces
US $3650
≥2 Pieces
US $3550
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Filling Accuracy:
≤0.5%, ≤0.5%
Driven Type:
Pneumatic and electric
Voltage:
AC Single-Phase 220V /110V
Place of Origin:
China
Dimension(L*W*H):
2000*1100*1300mm
Weight:
200 KG
Product Name:
HLT-CDCZ-1 Weighing Filling Machine
Filling Head:
1 Head/ 2heads
Filling Speed:
100 to 200 pcs/hour
Filling Range:
Mini.5 kg /Max.50 kg
Air Pressure:
0.5~0.7 Mpa
Power Supply:
Standard 220V/50HZ (110V customized)
Horsepower:
4.0kw
Material:
Stainless Steel (Meet GMP Standard)
Advantage:
Single nozzle single pump/independent control

Quick Details

Machinery Capacity:
100BPH, 200BPH
Packaging Material:
Plastic, Metal, Wood
Filling Material:
Water, Oil, Cream
Filling Accuracy:
≤0.5%, ≤0.5%
Driven Type:
Pneumatic and electric
Voltage:
AC Single-Phase 220V /110V
Place of Origin:
China
Dimension(L*W*H):
2000*1100*1300mm
Weight:
200 KG
Product Name:
HLT-CDCZ-1 Weighing Filling Machine
Filling Head:
1 Head/ 2heads
Filling Speed:
100 to 200 pcs/hour
Filling Range:
Mini.5 kg /Max.50 kg
Air Pressure:
0.5~0.7 Mpa
Power Supply:
Standard 220V/50HZ (110V customized)
Horsepower:
4.0kw
Material:
Stainless Steel (Meet GMP Standard)
Advantage:
Single nozzle single pump/independent control
Products Description

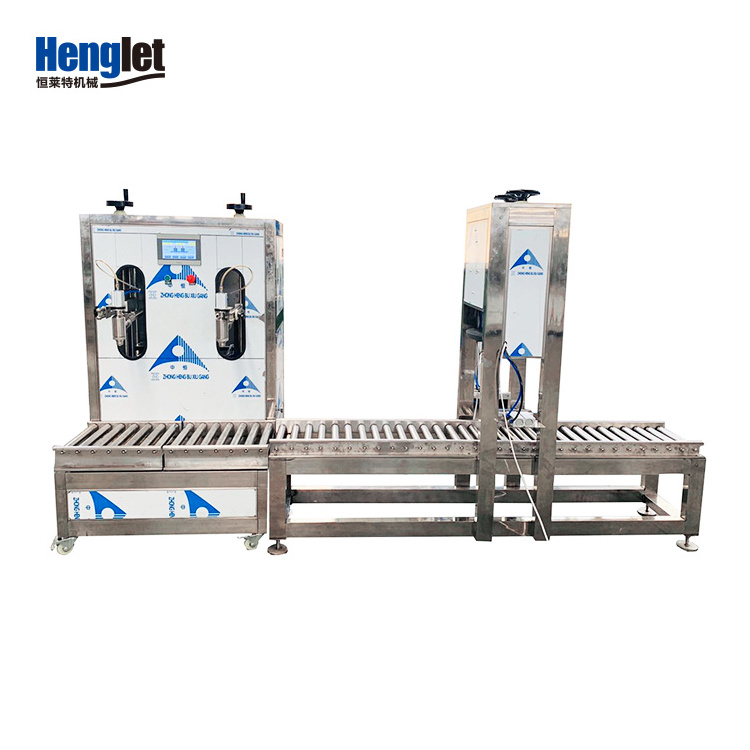

HLT-CDCZ-1 Weighing Filling Machine With Capping Function
Famous electrical and pneumatic components, it has low failure rate, stable performance, and long service life.
The materials to touch with product is stainless steel, all parts disassemble/assemble simply.
The filling volume & speed are easy to adjust, with function no filling without any container, liquid level is
controlled automatically.
❖ For different shape/specification container, it can be adjusted quickly, no need replace any parts.
❖ It has anti-drip filling nozzle to avoid to string or drip during filling.
Optional submersible/lift filling head, which can prevent product from foaming or splashing.
Work system including: feeding, weighing, body, pneumatic control, PLC control and conveyor belt.
Parameter Sheet
Item No.
Model
HLT-CDCZ-1 Weighing Filling Machine
01
Filling Speed
80 ~ 140 pcs/hour/filling head (as per 18L)
02
Filling range
5~50kg
03
Diameter/Height for container
No limited
05
Filling Accuracy
≤ 0.5 %
06
Power Supply
220V, 50HZ (110V could be customized)
07
Motor for Mixer (Watt)
4.0 KW (one filling head)
08
Work Air Pressure
0.5 ~0.7 Mpa
09
Dimension(LxWxH)
2000 x1100 x 1300mm (1 filling head)
10
Net.Weight
180kg
Details Images
After-sales Service
* 7 x 24 hours time for after-sales service, online guide etc.
* Online guide to installation and commission; On-site service available if need and will send professional engineer to
your office/factory to install and test the machine and train your worker for free.
* Warranty period for all machines is one (1) year.
* Out of warranty one year, guide and help you to maintain the machines in free charges.
* Every 2 years, we will help customers to overhaul the complete machines in free charges.
