High density hard board suit for pipe 0.45mm thickness aluminum sheet Water heating system accessories

High density hard board suit for pipe 0.45mm thickness aluminum sheet Water heating system accessories

FOB Reference Price: Get Latest Price

≥200 Pieces

US $3.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Hotel

Design Style:: Modern

Floor Heating Valve:: XPS

Material:: XPS, XPS, aluminum foil & aluminum panel

Place of Origin:: Zhejiang, China

Brand Name:: TYCO

Model Number:: UHP

Function:: Waterproof, Sound and thermal Insulation

Thermal conductivity of XPS:: 0.028~0.036W/(M.K)

Characteristics of XPS:: Free of CFC and HCFC

Compressive Strength:: 250~300Kpa

Color of XPS:: Blue

Certificate:: CE/ISO/Reach

Accessories:: Aluminum tape, PEX-al-PEX

Quick Details

Warranty:: Lifetime

After-sale Service:: Online technical support

Project Solution Capability:: NONE

Application:: Hotel

Design Style:: Modern

Floor Heating Valve:: XPS

Material:: XPS, XPS, aluminum foil & aluminum panel

Place of Origin:: Zhejiang, China

Brand Name:: TYCO

Model Number:: UHP

Function:: Waterproof, Sound and thermal Insulation

Thermal conductivity of XPS:: 0.028~0.036W/(M.K)

Characteristics of XPS:: Free of CFC and HCFC

Compressive Strength:: 250~300Kpa

Color of XPS:: Blue

Certificate:: CE/ISO/Reach

Accessories:: Aluminum tape, PEX-al-PEX

Product Description

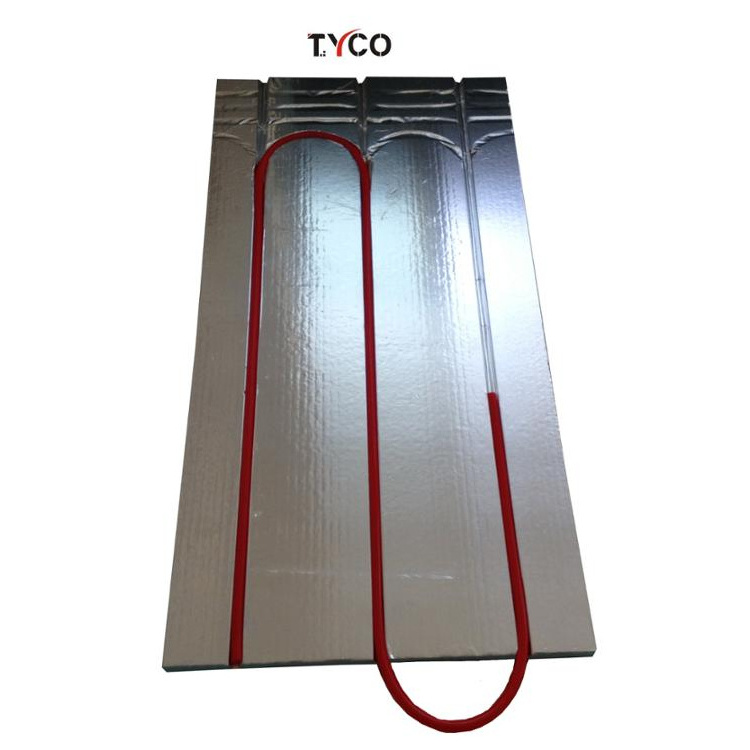

TYCO underfloor heating panel is made by grooved XPS/EPS foam board for heat insulation and covered with aluminum layer for

thermal conductivity.

TYCO underfloor heating panel is

● Raw material free of CFC, HCFC, HBCD, approved by REACH and EN13164

● High compressive strength at least 350 kpa (1 SQM hold 30 tons weight)

● Waterproof, fireproof, soundproof

● Various insulation board thickness and aluminum layer thickness for different budget

● Do small influence to room space

● Dry installation, support DIY cutting

● Quick handle, two women can finish 1000 SQM room within two hours

Technical Data

Tyco underfloor heating panel specification data

Density	kg/cbm	32~35
Thermal conductivity, 90days, 10℃	w/mk	0.027~0.03
Compressive strength at 10% deflection or yields, (vertical)	kpa	≥300
Tensile strength	kpa	≥300
Water absorption	vol-%	≤1%
Capillarity	nil	nil
Coefficinet of linear thermal expansion	mm/mk	0.07
Temperature limits	℃	-50℃~+75℃

Specification

For tile finished floor

Item No.	Size of the Panel	Pipe OD	Chanel distance	Thickness of AL
UHP-AL20	120060020mm	12/16mm	150/200mm	100/200micron
UHP-AL25	120060025mm	16mm	150/200mm	100/200micron
UHP-AL30	120060030mm	20/16mm	150/200mm	100/200micron

For wood finished floor

Item No.	Size of the panel	Pipe OD	Chanel distance
UHP25-16	120060025mm	16mm	15/20cm
UHP30-20	120060030mm	20mm	15/20cm
AL Sheet	10003900.45mm	16/20mm	15/20cm

EPS400 both for tile and wooden floor

Item No.	Size of the Panel	Pipe OD	Chanel distance	Thickness of AL	Compressive Strength
EPS 400-2016-0.2	120060020mm	16mm	150mm	0.2mm	400kpa
EPS 400-2016-0.1	120060020mm	16mm	150mm	0.1mm	400kpa

Who We Are

Packing & Delivery

Underfloor heating panel normally pack by pp bag, 10pcs/bag

Aluminum sheet pack by carton, 40pcs/ctn, finally with pallet

Certifications

FAQ

Q: Are you manufacturer or trading company? A: We are manufacturer over 20years and we export to whole world over 10years. Q: How does your factory control quality? A: We do quality control from the very beginning of raw material to the end of production. Each batch of products will be tested with caution before packing and delivery. We have testing equipment and staff in our QC department.

Q: Can do you layout design for personal house floor heating plan?

A: Layout is available, and its not free, cost depends on heating area, our advice is you calculate total heating area in square meter then notice us, we will check what quantity you need, for detailed layout plan, as long as your floor is clean and even, you can put board on floor directly, and do DIY.

Q: My floor is tile/wooden floor/carpet/concrete, what kind of board do you recommend?

A: Towards different floor and budget, we offer different heating solutions for you, welcome to send inquiry for more information.

Q: My floor heating plan is floating keels, 600mm wide board not suitable for me, can you do specific board for me?
A: Sure, OEM and ODM is supportive, we can make specific size board to fit your floor very well.

Q: Can I get samples before ordering?

A: Yes, small size sample is free, and express fee need to be bear in your side.

Q: How about MOQ and delivery?

A: Here is no MOQ if we have enough stock of standard board.

Delivery time will be 15~20days for LCL order(less than full container load), and 30days for FCL order(full of container load).

Q: Do you support to door delivery service?

A: Yes, we can handle whole delivery service to your door, and first please notice us if you have personal or company tile which can be used for customs clearance after goods arrive destination seaport.

Welcome to send us inquiry to get more help!
