Quick Details
-
Max Sewing Thickness:
-
1200gsm
-
Voltage:
-
220V
-
Power:
-
2000w, 2000W
-
Dimension(L*W*H):
-
3000*3100*1150mm
-
Weight:
-
600
-
Product name:
-
quilting machine
-
Maximum production size:
-
2400*2600mm
-
Maximum needle drop size:
-
2200*2400mm
-
Spindle speed:
-
1500-2000r/min
-
Application:
-
Comforter Quilt Blanket Mattress
-
Function:
-
Fabric Layers Quilting
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
KELLEN
-
Max Sewing Speed:
-
2000r/min
-
Max Sewing Thickness:
-
1200gsm
-
Voltage:
-
220V
-
Power:
-
2000w, 2000W
-
Dimension(L*W*H):
-
3000*3100*1150mm
-
Weight:
-
600
-
Product name:
-
quilting machine
-
Maximum production size:
-
2400*2600mm
-
Maximum needle drop size:
-
2200*2400mm
-
Spindle speed:
-
1500-2000r/min
-
Application:
-
Comforter Quilt Blanket Mattress
-
Function:
-
Fabric Layers Quilting
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
▶Product Descripition

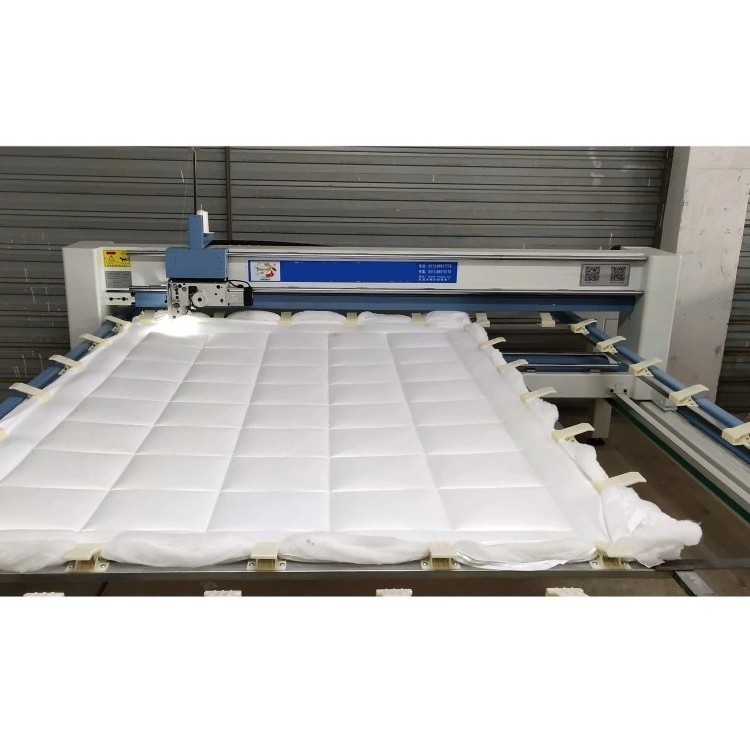

Hot sale automatic commercial Mattress Quilting Machine
KL-5I :
----KL-5I-2426's area is only 3/5 size of other machine, suitable for facade room.
----High precision: the mechanical structure abandoned the traditional operation way and realize absolutely still during quilting with only head moving.This head moving already reached top technical level of global quilting industry.
----Adopt the long route head to improve the stability of super thick quilting,apply with precision square axis guide rail and steel core polyurethane synchronous belt to optimize the machine combination.
KL-5III :
----On the basis of KL-5I, the mechanical structure is simplified which abandoned the traditional frequency conversion system.
----Adopt high precision servo synchronization system, so as to achieve high stability and less noise but high-speed quilting;
----The area is only 3/5 size of other machine,suitable for facade room and the mall.
----Adopt high precision servo synchronization system, so as to achieve high stability and less noise but high-speed quilting;
----The area is only 3/5 size of other machine,suitable for facade room and the mall.
▶Product Application
▶Product Paramenters
|
Model
|
KL-5I
|
|
Maximum production size
|
2200×2400mm
|
|
Maximum needle drop size
|
2000×2200mm
|
|
Size
|
3000*3100*1220mm
|
|
Weight
|
600kg
|
|
The thickness of the quilting
|
≈1200gsm
|
|
Spindle speed
|
1500-2000r/min
|
|
Voltage
|
220V/50HZ
|
|
Power
|
2000w
|
|
Model
|
KL-5III
|
|
Maximum production size
|
2200×2400mm
|
|
Maximum needle drop size
|
2000×2200mm
|
|
Size
|
3000*3100*1220mm
|
|
Weight
|
600kg
|
|
The thickness of the quilting
|
≈1200gsm
|
|
Spindle speed
|
1500-2000r/min
|
|
Voltage
|
220V/50HZ
|
|
Power
|
2000w
|
▶Details Display
KL-5I
Steel-core polyurethane
synchronous belt
synchronous belt
Smooth operation, good transmission effect.
Long stroke head
Improves the stability of ultra-thick joint material during quilting
Control System
Two control system control cabinets are available.
Precise square axis linear guide rail is adopted
Make the machine run more stable and smooth.
Customized "Tank Chain"
As a flexible and durable cable protection device, it not only ensures stable operation, but also extends the service life of
the cable.
the cable.
KL-5III
Driven directly by the motor
Driven directly by the motor, high speed silence.
Control system
The touch-tone control system makes the operation more convenient, intuitive and simple, and greatly improves the operation efficiency.
Using precision guide
Make the machine run more stable and smooth, not easy to jump stitches and disconnection.
Customized "Tank Chain"
As a flexible and durable cable protection device, it not only ensures stable operation, but also extends the service life of the cable.
Cloth timing belt
Not only reduces noise, but also increases the wear resistance of the belt.
Anti-collision pad
Protection of running machine beams.
▶Product Display
KL-5I
KL-5III
▶Packing & Delivery
▶Company Introduction
Henan Kellen Machinery Equipment Co.,Ltd
Our company mainly manufactures the fruit and vegetable juice machine, vegetable dicing machine, ice cube making machine, popcorn
machine, dumpling maker machine, straw crushers, peanut shellers, dryer machine, flower refrigerator displayer, oil fryer and so on. We adopt the advanced technology and our machines are complied with international standard. These machines are made of high quality stainless steel with competitive price.
Many products are exported to America, Australia, France, Netherlands, Ireland and other 20 countries and regions. We have gotten a lot of good feedbacks from clients. Our principle is "High Reputation, Competitive Price, Efficient Delivery Speed and Good After-sell Service".
We are looking forward to cooperating with friends from all over the word. Welcome to contact us at any time! We will be here all the time!
Warehouse
Certificates
▶FAQ
♦ Project Design
Assist you to choose equipment, design production process flow According to the customer actual production environment and production requirements.
♦ Installation Training
Provide telephone guidance for equipment installation and debugging; or send technician to install and debug machine and train your workers if needed.
Provide free relevant training as customer required.
Long-term technical support.
♦ After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ One year warranty time
From the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be paid by buyer.Engineers available to service machinery overseas. We value every inquiry sent to us, ensure quick competitive offer within 24 hour.
♦ Payment way
We accept multiple terms of payment, such as L/C, T/T, western Union, Money Gram, Alibaba Trade Assurance.
