Centralized control and easy operation
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
30KW+5.5KW+2.2KW+3KW
-
Dimension(L*W*H):
-
5200X1820X3004mm
-
Weight:
-
3500kg
-
Certification:
-
CE ISO
-
Control system:
-
30KW Diesel Gererator
-
Charging Motor::
-
3kw
-
Mixing Type:
-
Drum Continuous Mix
-
Capacity:
-
6-7ton/hr
-
Application:
-
Road Pits Repair
-
Product name:
-
Mobile Mini Hot Mix Asphalt Plant Price for Sale
-
Mixing Volume:
-
first time 20 minute,then 4-5 times/hour
-
Name:
-
Mobile Asphalt Hot Mix Plants
-
Asphalt Temperature:
-
120-184
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
zhengda
-
Voltage:
-
380V50HZ
-
Power:
-
30KW+5.5KW+2.2KW+3KW
-
Dimension(L*W*H):
-
5200X1820X3004mm
-
Weight:
-
3500kg
-
Certification:
-
CE ISO
-
Control system:
-
30KW Diesel Gererator
-
Charging Motor::
-
3kw
-
Mixing Type:
-
Drum Continuous Mix
-
Capacity:
-
6-7ton/hr
-
Application:
-
Road Pits Repair
-
Product name:
-
Mobile Mini Hot Mix Asphalt Plant Price for Sale
-
Mixing Volume:
-
first time 20 minute,then 4-5 times/hour
-
Name:
-
Mobile Asphalt Hot Mix Plants
-
Asphalt Temperature:
-
120-184
Product Description

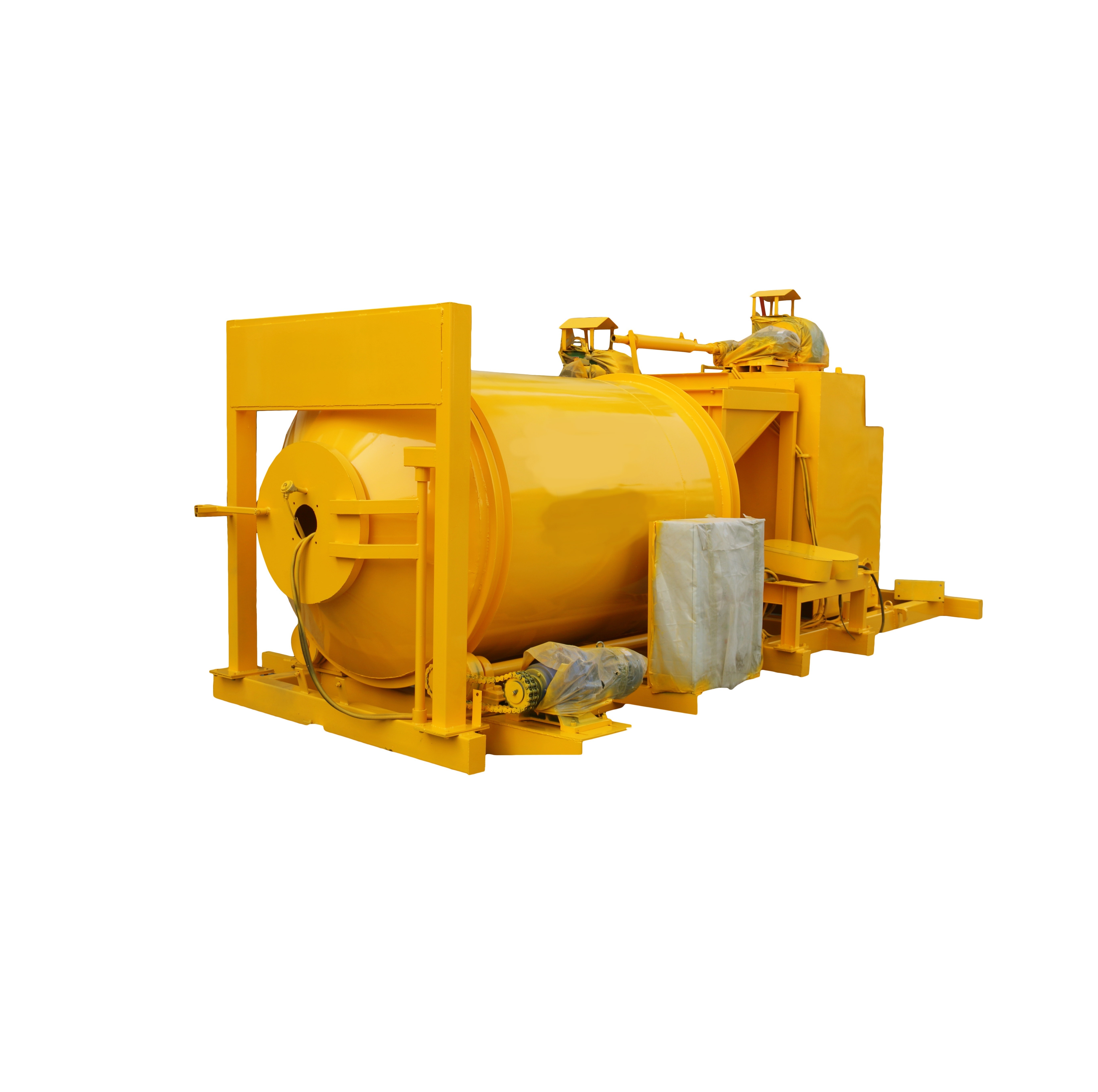

Portable Hot Asphalt Mixer Mobile Mini Asphalt Plant Price
Product Specification
|
Model
|
|
TLB1.0-30
|
|
||
|
Capacity
|
|
1ton/batch,10-15min/times
|
|
||
|
Insulation roller volume
|
|
3.88 M3
|
|
||
|
Burner
|
|
Italian brand Riyalu/RG5S
|
|
||
|
|
|
0.3 M3(350KG)
|
|
||
|
|
|
Feeding method: hoisting and unloading
|
|
||
|
|
|
Cyclone and Y80M2-2
|
|
||
|
|
|
|
|
||
|
|
|
Centrifugal fan and water dust removal
|
|
||
|
Generator power
|
|
30 KW/TFS-30
|
|
||
|
Asphalt tank volume
|
|
800L
|
|
||
|
Heat transfer oil volume
|
|
200L
|
|
||
|
Actual drum agitating amount
|
|
0.7-0.8 M3
|
|
||
|
Mixer drum material
|
|
Double-layer manganese plate
|
|
||
|
Mixer drum material thickness
|
|
Single layer thickness:5.75MM
|
|
||
|
Rock wool thickness
|
|
5CM
|
|
||
|
|
|
Four layers
|
|
||
|
|
|
Each layer: 5 cm apart
|
|
||
|
|
|
|
|
||
|
|
|
From the inside to the outside: Asphalt oil layer, heat transfer oil layer, fire layer, rock wool layer.
|
|
||
|
|
|
Main burner: type 44
|
|
||
|
|
|
|
|
||
|
|
|
Auxiliary burner: type 40
|
|
||
|
Discharging temperature
|
|
130-170degree (adjustable)
|
|
||
|
Overall dimension(L*W*H)
|
|
5250 x 2100 x 2750mm
|
|
||
|
Weight
|
|
4500Kg
|
|
||
Product details
electric concrol box
Product application
Packing And Transport
We use three-layer protective packaging products, first covered with plastic bags, and then re protected with recycled cotton to prevent paint damage, and finally put them into wooden or iron boxes to better ensure product safety.
Our company can ship at many export ports, such as Shanghai, Qingdao and Guangzhou, to provide more convenient services for your product transportation.
Our company
Zhengzhou Yuandong
Machinery Manufacturing Co., Ltd.
We has been focusing on the construction machinery design and manufacturing industry for more than 20 years.Our company has an independent R&D and design team.
Our company's main varieties include: road machinery, reinforced machinery concrete
machinery.Our products are produced in strict accordance with the requirements of ISO 9001 quality system and CE safety system.
machinery.Our products are produced in strict accordance with the requirements of ISO 9001 quality system and CE safety system.
At present, Our company develops partners all over the world.
The production workshop is equipped with professional automated production equipment. Rich experience can provide professional customization and foundry processing services.
Our Serves
1.We offer a one-year warranty. Once the claim occurs, we will send you free parts by express delivery such as DHL.
2.We'll give you a 20% discount on each sample.
3.We provide overseas installation and maintenance services for engineers, and you are required
to provide round-trip fees.
4. If you come to our company for field visits, we provide free pick-up and accommodation services.
5.If you have special requirements, we can provide custom services.
FAQ
1 Q: I haven't used this thing. What if I don't know how to use it?
We provide online technical guidance and video docking.
2 Q: Can you guarantee the quality of product?
Our company has welding robot, CNC machining center and other processing equipment, ISO9001 certification, production specifications, strict quality inspection.
3 Q: How to solve after-sales problems?
We provide a 1-year warranty, free of charge for non consumable parts.
