- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Cummins, 750kw Big Power Station Generator 750 Kw Electric Generator
-
Model Number:
-
FF-750GF
-
Speed:
-
1500/1800RPM
-
Certification:
-
CE, CE
-
Power:
-
750kw
-
engine model:
-
KTA38-GA
-
Type:
-
Silent type
-
Bore/Stroke:
-
159/190
-
Fuel consumption:
-
198g/kwh
-
Size:
-
4350*1770*2300
-
Weight:
-
7850kgs
Quick Details
-
Rated Voltage:
-
110/220V, 220/380V, 230/400V
-
Rated Current:
-
1080A
-
Frequency:
-
50/60HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Cummins, 750kw Big Power Station Generator 750 Kw Electric Generator
-
Model Number:
-
FF-750GF
-
Speed:
-
1500/1800RPM
-
Certification:
-
CE, CE
-
Power:
-
750kw
-
engine model:
-
KTA38-GA
-
Type:
-
Silent type
-
Bore/Stroke:
-
159/190
-
Fuel consumption:
-
198g/kwh
-
Size:
-
4350*1770*2300
-
Weight:
-
7850kgs

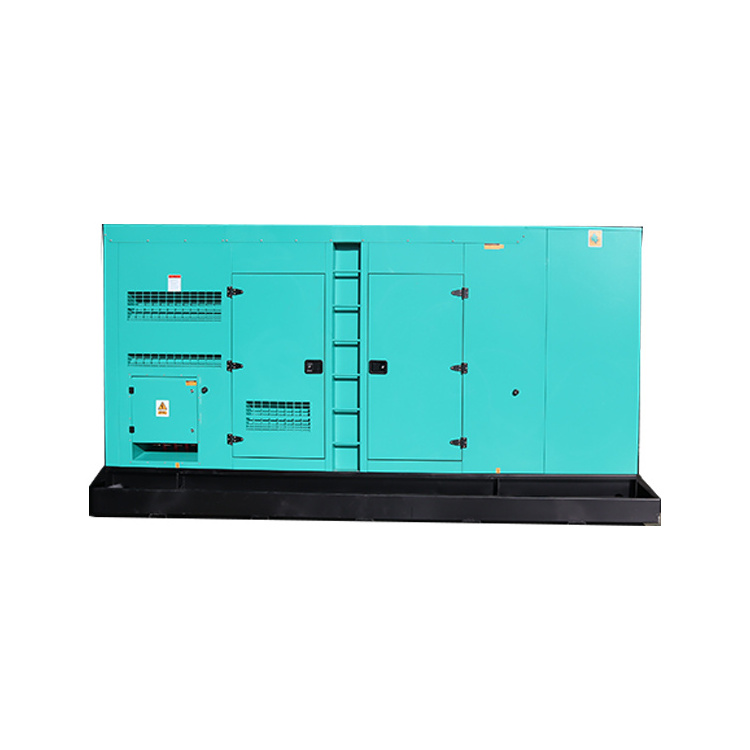

Industrial Use Diesel Generator 750kw Big Power Station Generator 750 Kw Electric Generator
|
Generator information
|
|
|
|
genset model
|
FFDL-750GF
|
|
|
Type
|
open/sound proof/weather proof
|
|
|
Genset output power range
|
750KW
|
|
|
Rated voltage
|
220/380V,230/400V,240/415V,120/240V
|
|
|
Frequency
|
50/60HZ
|
|
|
Power factor
|
0.8
|
|
|
Rated speed
|
1500/1800rpm
|
|
|
output type
|
AC three phase/single phase
|
|
|
Motor
|
brushless
|
|
|
Frequency
|
<3%
|
|
|
Frequency at stable state:
|
<0.5%
|
|
|
Frequency deviation at instantaneous state
|
≤+10%
|
|
|
Frequency return time
|
≤3s
|
|
|
Voltage deviation at stable state
|
≤±1%
|
|
|
Voltage deviation at instantaneous state
|
≤+20%
|
|
|
Voltage return time
|
≤4s
|
|
|
Voltage modulation
|
≤0.3%
|
|
|
Engine information
|
|
|
|
Engine model
|
KTA38-G2A
|
|
|
Engine brand
|
CUMMINS
|
|
|
Engine rated power
|
915KW/1143.75KVA
|
|
|
Engine standby power
|
1007KW/1258.75KVA
|
|
|
Engine speed
|
1800RPM
|
|
|
Bore & Stroke
|
159 × 159 mm
|
|
|
Displacement
|
38L
|
|
|
Compression ratio
|
14.5:1
|
|
|
Type
|
V-type,12 cylinders,4 stroke
|
|
|
Aspiration
|
Turbocharged, Aftercooled
|
|
|
Governor
|
Electronic
|
|
|
Cooling method
|
Water cooled by radiator
|
|
|
Alternator information
|
|
|
||
|
Alternator model
|
LVI 634D
|
TAL-A49-C
|
||
|
Alternator brand
|
Stamford
|
Leroy somer
|
||
|
Rated power
|
837KW/1046.25KVA
|
805KW/1006.25KVA
|
||
|
Frequency
|
50HZ/60HZ
|
|
||
|
Speed
|
1500RPM/1800RPM
|
|
||
|
Voltage
|
220/400V,230/380V
|
|
||
|
Power factor
|
0.8 (lagging)
|
|
||
|
Phase and wire
|
3 phase 4 wires
|
|
||
|
Excite type
|
Single Bearing, Close coupled. Brushless, self-exciting,AVR
|
|
||
|
Protection class
|
IP23
|
|
||
|
Insulation class
|
H
|
|
||
Taizhou Fengfa Power Equipment Co., Ltd. was founded in 2008, integrating the R&D and sale. Our company covers an area of above2000 square meters. With our abundant experience and industrious and hardworking staff members, we can meet various requirementsfrom different types of customers.
Our production capacity amounts to 1,000 sets per year. We are mainly engaged in diesel generator, Cummins generator, Volvo generator and our products sell well in Southwest Asia, the Middle East and Africa. We conductstrict quality inspections over each batch / product. We will try our best to serve you and hope to become one of yourfriends andbusiness partners.
Our production capacity amounts to 1,000 sets per year. We are mainly engaged in diesel generator, Cummins generator, Volvo generator and our products sell well in Southwest Asia, the Middle East and Africa. We conductstrict quality inspections over each batch / product. We will try our best to serve you and hope to become one of yourfriends andbusiness partners.
1. Who are we?
We are based in Jiangsu, China, start from 2008, sell to Domestic Market(10.00%),South Asia(10.00%),Central
America(10.00%),Eastern Asia(10.00%), Mid East(10.00%), Oceania(10.00%), Africa(10.00%), Southeast Asia(10.00%), North America(10.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Generator set, Diesel generator set, Generator, Cumins generator, Volvo generator.
4. Why should you buy from us not from other suppliers?
Taizhou Fengfa Power Equipment Co., Ltd. was founded in 2008, integrating the R&D and sale. Our company covers an area of above 20000 square meters. With our abundant experience and industrious and hardworking staff members, we can meet various requirements.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, PayPal, Western Union, Cash,Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese
We are based in Jiangsu, China, start from 2008, sell to Domestic Market(10.00%),South Asia(10.00%),Central
America(10.00%),Eastern Asia(10.00%), Mid East(10.00%), Oceania(10.00%), Africa(10.00%), Southeast Asia(10.00%), North America(10.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Generator set, Diesel generator set, Generator, Cumins generator, Volvo generator.
4. Why should you buy from us not from other suppliers?
Taizhou Fengfa Power Equipment Co., Ltd. was founded in 2008, integrating the R&D and sale. Our company covers an area of above 20000 square meters. With our abundant experience and industrious and hardworking staff members, we can meet various requirements.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, D/P, D/A, PayPal, Western Union, Cash,Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese
