Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Core Components:
-
IGBT
-
Working voltage:
-
342-430v
-
Maximum output power:
-
60kw
-
Max input current:
-
90A
-
Oscillation frequency:
-
30-50khz
-
Cooling water pressure:
-
0.5mpa
-
Water flow:
-
10L/min
-
Generator size:
-
850*430*900mm
-
Color:
-
Orange
-
Weight:
-
135
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhengzhou Gou's
-
Weight (KG):
-
135
-
Marketing Type:
-
Hot Product 2023
-
Core Components:
-
IGBT
-
Working voltage:
-
342-430v
-
Maximum output power:
-
60kw
-
Max input current:
-
90A
-
Oscillation frequency:
-
30-50khz
-
Cooling water pressure:
-
0.5mpa
-
Water flow:
-
10L/min
-
Generator size:
-
850*430*900mm
-
Color:
-
Orange
-
Weight:
-
135
-
Certification:
-
CE ISO

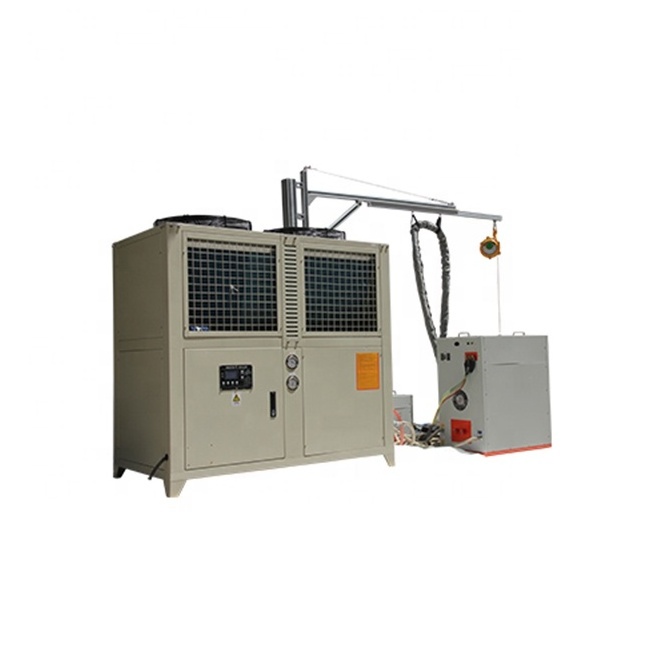

The handheld high frequency induction welding machines produced by Zhengzhou Gou's have various types such as dual power supply 60kw, 80kw, 100kw and so on. During the working process, the machine has the function of loading, preheating, welding, maintaining pressure and unloading parts simultaneously, which can save time and improve production efficiency. The handheld induction brazing machine has the advantages of fast heating, high productivity, stable operation, 24-hour continuous operation, and high welding quality. The machine can be equipped with infrared thermometer, temperature controller and other devices according to different application requirements. The control mode is equipped with automatic and manual welding functions, and the operation is simple and practical. It is the preferred brazing equipment for products with large output.
1. Fast welding speed
2. High cost performance
3. Stable performance
4. Safe and reliable
5. Flexible and convenient
* Welding of diamond cutter heads, welding of carbide saw blades and diamond cutting tools and grinding tools.
* Welding of carbide tools for machining. Welding of cutting tools such as turning tools, planers, milling cutters, reamers, etc.
* In the home appliance industry, welding of electric kettle heating plates, pots, frying pans, coffee pots and other electric cooking utensils.
* Welding of mining tools, such as "one" bits, column tooth bits, dovetail coal drill bits, rivet rod drill bits, various shearer picks, and various tunnel boring machine picks.
* Welding of carbide tools for machining. Welding of cutting tools such as turning tools, planers, milling cutters, reamers, etc.
* In the home appliance industry, welding of electric kettle heating plates, pots, frying pans, coffee pots and other electric cooking utensils.
* Welding of mining tools, such as "one" bits, column tooth bits, dovetail coal drill bits, rivet rod drill bits, various shearer picks, and various tunnel boring machine picks.
|
Model Technical Parameter
|
GP-36
|
GP-60
|
GP-80
|
GP-100
|
|
Working Power
|
Three Phase 380V/50-60HZ
|
Three Phase 380V/50-60HZ
|
Three Phase 380V/50-60HZ
|
Three Phase 380V/50-60HZ
|
|
Working Voltage
|
342V-430V
|
342V-430V
|
342V-430V
|
342V-430V
|
|
Maximum Output Power(kw)
|
36
|
60
|
80
|
100
|
|
Max Input Current(A)
|
54
|
90
|
120
|
150
|
|
Oscillation Frequency(khz)
|
30-80
|
30-50
|
30-50
|
30-50
|
|
Cooling Water Pressure(Mpa)
|
0.3
|
0.5
|
0.5
|
0.5
|
|
Cooling Water Flow(L/min)
|
6
|
10
|
12
|
12
|
|
Generator Size(mm)
|
620*250*540
|
850*430*900
|
900*450*1000
|
900*450*1000
|
|
Generator Weight(kg)
|
40
|
72
|
85
|
85
|
|
Transformer Size(mm)
|
500*270*450
|
870*420*490
|
950*450*500
|
950*450*500
|
|
Transformer Weight(kg)
|
32
|
63
|
70
|
70
|
1.What is your minimum order quantity?
Currently we do not have a strict policy on this, so any order is welcome.
2. Are you a manufacturer or a trading company?
Yes, you can rest assured that we are a manufacturer with extensive experience in doing business at home and abroad.
3. We are not good at the operation and installation of your machine
Our machine is easy to operate, does not require professional training, and will send you instruction manuals and videos. In addition, we have professional engineers who can solve all problems.
4. How about the packaging? ......What should i do if the machine is damaged?
Usually the machine is packed in wooden boxes, standard export cartons, plywood cartons, and can also be packed according to your requirements. In the event of damage, we will arrange a replacement.
5. We have never cooperated before, how can i trust your company and machine?
We have more than 20 years experience in induction heating field. We have our own factory and technical team and have no complaints about Alibaba and our machines. We have nearly 15 years of export experience. Our machines have been exported to more than 60 countries and have good feedback. If necessary, we can provide the company name and website for your reference.Welcome to visit our factory at any time!
