Quick Details
-
Place of Origin:
-
Netherland
-
Brand Name:
-
OEM
-
Model Number:
-
DSFDYR576
Quick Details
-
Moisture (%):
-
0.5%
-
Dimensions:
-
63 -160 mkm
-
TiO2 (Min):
-
95%
-
Place of Origin:
-
Netherland
-
Brand Name:
-
OEM
-
Model Number:
-
DSFDYR576
Chemical analysis
| Contents, % | STANDARD | GRADE “G” | NORMAL |
|---|---|---|---|
| TiO2 min | 94 | 94 | 95-96 |
| A 1203 | 0,6 | 0,6 | 0,3-0,5 |
| Fe203 | 2,8 | 1,5 | 1-1,5 |
| Si02 | 1,5 | 1,5 | 1,3 |
| Zr02 | 1,0 | 1,0 | 0,5-0,8 |
| P205 | 0,07 | 0,07 | 0,07 |
| S03 | 0,05 | 0,05 | 0,05 |
| Cr203 | 0,2 | ||
| V205 | 0,4 | ||
| CaO | 0,05 | ||
| U+Th | 70 PPm | 70 PPm | 70 PPm |
| Moisture | 0,5 | 0,5 | 0,1 |
Physical description and properties:

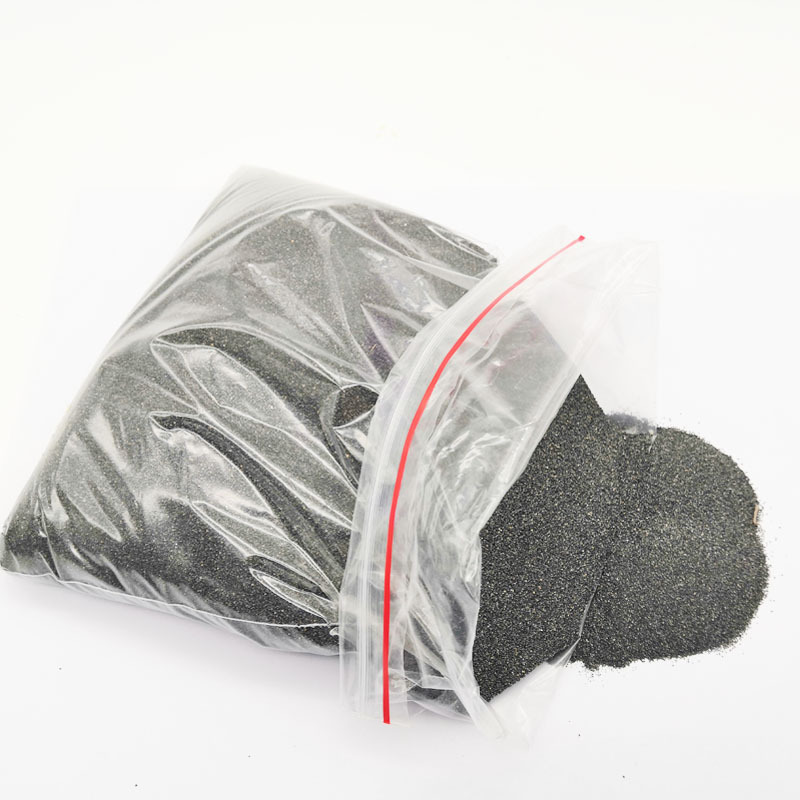

Appearance
:
Dark brown to black dry free running sand.
Grain shape: elongated, rolled.
Grain color: red (different tints), brown, black.
| Minerals | Contents, % |
|---|---|
| Rutile | 92-97 |
| Leucoxene: | 3-7 |
| Zircon: | 0,2 -1,5 |
| Ilmenite: | 0,5-5 |
| Kyanite: | 0,1 - 0,5 |
| Quartz: | 0,1 - 0,2 |
Storage
: in closed containers or bags, protect from physical damage.
Terms of storage unlimited.
| Melting point: | 1850 ° |
| Specific Gravity: | 4150 - 4300 kg/m3 |
| Bulk density: | 2300 - 2400 kg/m3 |
| Grain size: | 63 -160 mkm |
| Flammable: | Nonflammable |
| Solubility in Water: | Insoluble |
| Angle of friction: | 30° |
| Hardness: | 6 |
| Sieve Aperture (microns) | Cumulative retained, % |
|---|---|
| + 180 | 1 |
| + 150 | 4 |
| + 125 | 14 |
| + 106 | 46 |
| + 75 | 98 |
| - 75 | 100 |
Note
:
We can supply rutile flour. Usually Mesh Residue (100 micron) for flour is not less 5%. We are ready to consider the possibility of improved quality concentrate supplies. End use: Rutile concentrate is used in production of welding electrodes, pigment titanium dioxide, titanium sponge and metal titanium.
Shipment:
Bulk in railway cars or vessel holds
50 kg bags
Soft containers (big bag) 1 t net
| Name of Commodity | Titanium Ore MIN. 50% TiO2 |
| Quantity | 16,000+/-10% |
| Quality | mineral specifications |
| Iron (Fe) | 30% MAX |
| Silica (SiO2) | 4% MAX |
| Alumina (Al2O3) | 3% MAX |
| Phosphorus (P) | <0.1% |
| Sulphur (S) | <0.1% |
