Quick Details
-
Brand Name:
-
JMC
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Dimensions (L x W x H) (mm):
-
5995*2995*3000
-
Place of Origin:
-
Hubei, China
-
Horsepower:
-
122hp
-
WHEELBASE:
-
3360mm
-
Driving type:
-
4x2
-
Transmission:
-
5 Forward
-
specifications:
-
70K
-
rated voltage VDC:
-
24
-
Truck Mounted Attenuator Length(mm):
-
2055
-
Truck Mounted Attenuator Width(mm):
-
1650
-
Truck Mounted Attenuator Thickness(mm):
-
680
-
Warranty:
-
1 Year
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
EURO 5
-
Gross Vehicle Weight:
-
4495
-
Brand Name:
-
JMC
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Dimensions (L x W x H) (mm):
-
5995*2995*3000
-
Place of Origin:
-
Hubei, China
-
Horsepower:
-
122hp
-
WHEELBASE:
-
3360mm
-
Driving type:
-
4x2
-
Transmission:
-
5 Forward
-
specifications:
-
70K
-
rated voltage VDC:
-
24
-
Truck Mounted Attenuator Length(mm):
-
2055
-
Truck Mounted Attenuator Width(mm):
-
1650
-
Truck Mounted Attenuator Thickness(mm):
-
680
-
Warranty:
-
1 Year
Product Description

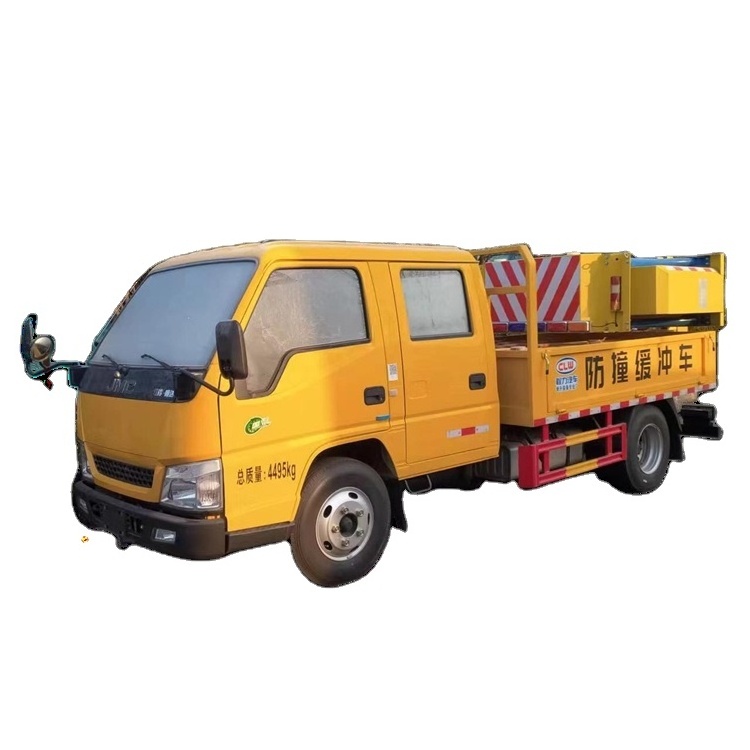

The anti-collision buffer vehicle is mainly used in highway construction, tunnel construction, expressway construction and other projects. The special device for the vehicle is composed of guide frame and buffer pad. The buffer pad can absorb the impact energy, make the collision kinetic energy evenly and gradually reduce, minimize the safety risk of construction vehicles, road maintenance workers and traffic police in handling accidents, and protect the safety of the personnel in the collision vehicle to the maximum extent.
The upper loading part is mainly composed of the cargo box, electronic screen, flash lamp, anti-collision buffer module, hydraulic system and electric control system. The lifting and lowering of the anti-collision buffer module is controlled by the oil circuit to achieve 180 ° turnover. In the working state, the anti-collision module is in the falling level state. The cargo box can be used to load tools, accessories and articles. The indicator lights can be used for left, right and both sides through different arrangement and combination.
Specification
|
item
|
value
|
|
Condition
|
New
|
|
Transmission Type
|
Manual
|
|
Emission Standard
|
EURO 5
|
|
Fuel Type
|
Diesel
|
|
Dimensions (L x W x H) (mm)
|
5995*2995*3000
|
|
Gross Vehicle Weight
|
4495
|
|
Place of Origin
|
China
|
|
|
Hubei
|
|
Brand Name
|
JMC
|
|
After-sales Service Provided
|
Video technical support, Online support, Free spare parts
|
|
Horsepower
|
122hp
|
|
WHEELBASE
|
3360mm
|
|
Driving type
|
4x2
|
|
Transmission
|
5 Forward
|
|
specifications
|
70K
|
|
rated voltage VDC
|
24
|
|
Truck Mounted Attenuator Length(mm)
|
2055
|
|
Truck Mounted Attenuator Width(mm)
|
1650
|
|
Truck Mounted Attenuator Thickness(mm)
|
680
|
|
Warranty
|
1 Year
|
The chassis configuration ：
Jiangling Shunda dual row chassis, with a national VI Jiangling 122 horsepower, a five speed transmission, 7.00R16LT, air conditioning, steering assistance, oil brakes, electric windows, and a wheelbase of 3360,Aluminum alloy paint, ABS.
Upper configuration:
Adopting Q235 national standard edge 3mm bottom plate pattern plate with a thickness of 4mm, the rear anti-collision buffer module package of the box adopts internationally renowned technology product 70K anti-collision buffer module, and the anti-collision buffer energy absorption module is mainly composed of car mounted anti-collision modules
Comprising a buffer pad and a guiding sign frame, it serves as a buffer guard behind construction vehicles. In the event of a rear end collision, a buffer zone can be constructed between the vehicle causing the accident and the construction work area ahead to facilitate communication
The deformation of the machinery structure absorbs the energy of impact, minimizing the probability of protected personnel and equipment being hit. High performance hydraulic system, capable of fast lifting and lowering operations, facilitating equipment transportation
Transition, one click start function, lifting and lowering anti-collision devices. When the anti-collision device is not fully lowered to the working position or lifted to the vertical transportation position, there will be an automatic warning sound prompt.
CONTACT US
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
