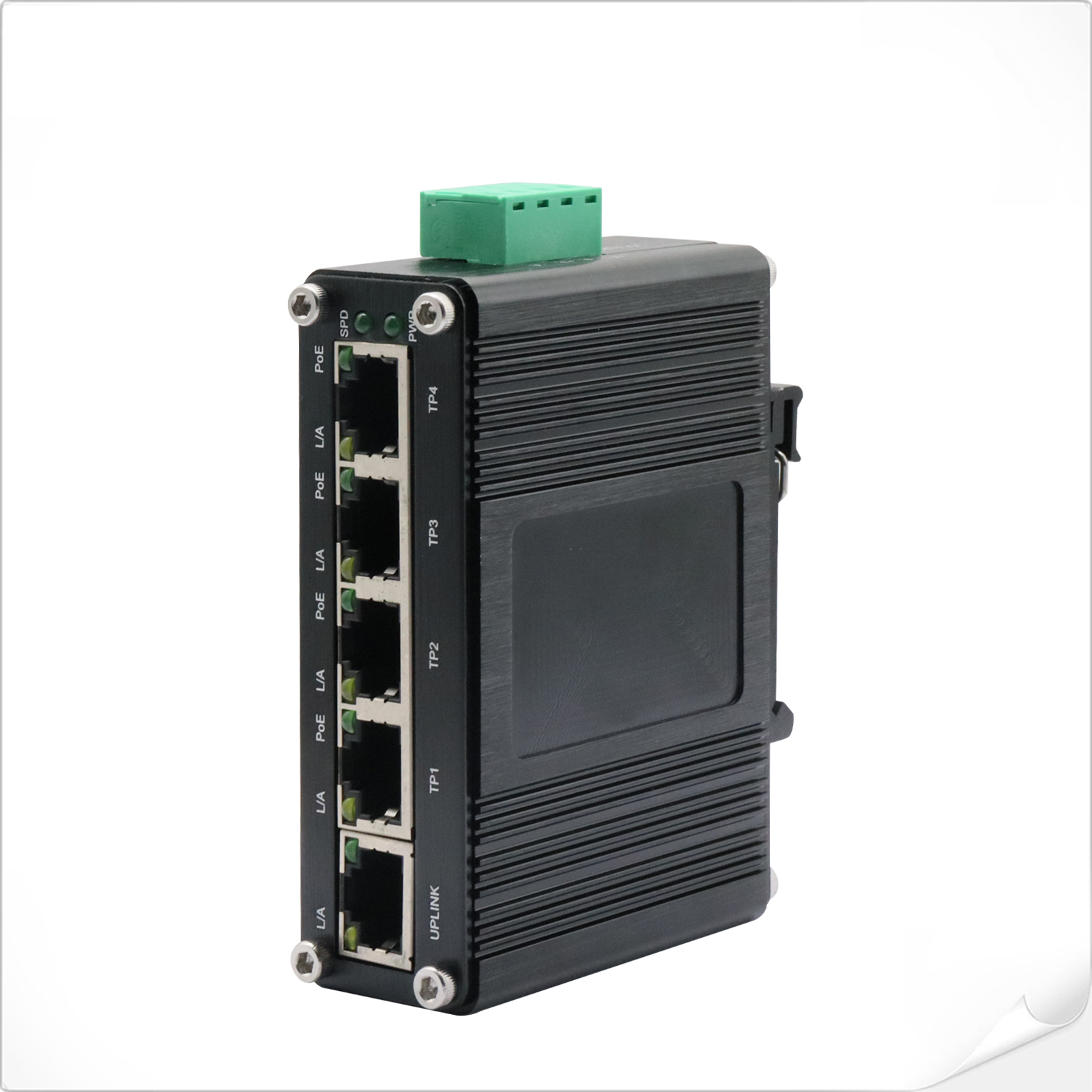

The LNK-IMC005GP-24 is a Industrial Passive 5-Port Gigabit Ethernet Switch with 12~24VDC wide range power input, 24V PoE Output. It allows you to connect the 24V passive PoE devices such as IP cameras, VoIP phone and Wireless access point. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch also complies with CE and FCC standards, and passed the 100% burning test. It is a good choice for an economical solution for industrial Ethernet connections.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Ethernet Switch
-
Model:
-
LNK-IMC005GP-24
-
Switch Fabric:
-
10Gbps
-
Backplane bandwidth:
-
10Gbps
-
Input Power::
-
12~24VDC (4pin Terminal Block)
-
Operating Temperature::
-
-40°C to 80°C (-40°F to 176°F)
-
Dimensions (WxDxH)::
-
95 x 70 x 30 mm
-
Weight::
-
0.3Kg
-
Casing:
-
Aluminum Case
-
Mounting Options:
-
DIN-Rail / Wall-mount
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Model Number:
-
LNK-IMC005GP-24
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Ethernet Switch
-
Model:
-
LNK-IMC005GP-24
-
Switch Fabric:
-
10Gbps
-
Backplane bandwidth:
-
10Gbps
-
Input Power::
-
12~24VDC (4pin Terminal Block)
-
Operating Temperature::
-
-40°C to 80°C (-40°F to 176°F)
-
Dimensions (WxDxH)::
-
95 x 70 x 30 mm
-
Weight::
-
0.3Kg
-
Casing:
-
Aluminum Case
-
Mounting Options:
-
DIN-Rail / Wall-mount
Product Description
|
Product Name
|
LNK-IMC005GP Series
|
|
Material
|
LNK-IMC005GP-24
|
|
Forward Filter Rate:
|
10/100/1000Mbps
|
|
Backplane bandwidth
|
10Gbps
|
|
Switch Fabric
|
10Gbps
|
|
Max Packet Length:
|
9K Bytes
|
|
Input Power:
|
12~24VDC (4pin Terminal Block)
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
-
Product performance description
Product Usage
-
-
Product usage introduction
-
Connect industrial equipment that needs to be connected to the network to the port of the switch through an Ethernet cable, and then connect the uplink port of the switch to the upper-level network device, such as a router or switch. Through simple configuration, devices can be interconnected to achieve fast and stable data transmission.
In addition, the switch also has plug and play, lightning protection, anti-static and other features to ensure the stable operation of equipment in industrial environments.
