Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANNENG/OEM
-
Model Number:
-
SN-NPCS20
-
Product Name:
-
China Manufacturer Solar Energy Product Non Pressure Solar System
-
Inner Tank Material:
-
SUS304-2B Imported Food-Grade Stainless Steel
-
Outer Tank Material:
-
galvalnized steel
-
Heat-Preserving Layer:
-
50-65mm polyester by wholly mechanical press technology
-
Support Material:
-
Stainless Steel, Aluminum, Galvanized steel
-
Color:
-
Any color is available
-
Vacuum Tube Type:
-
47*1500mm,58*1800mm,70*2000mm
-
Working temperature::
-
Anti-freezing -40 degree
Quick Details
-
Warranty:
-
More than 5 years
-
Application:
-
Outdoor, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANNENG/OEM
-
Model Number:
-
SN-NPCS20
-
Product Name:
-
China Manufacturer Solar Energy Product Non Pressure Solar System
-
Inner Tank Material:
-
SUS304-2B Imported Food-Grade Stainless Steel
-
Outer Tank Material:
-
galvalnized steel
-
Heat-Preserving Layer:
-
50-65mm polyester by wholly mechanical press technology
-
Support Material:
-
Stainless Steel, Aluminum, Galvanized steel
-
Color:
-
Any color is available
-
Vacuum Tube Type:
-
47*1500mm,58*1800mm,70*2000mm
-
Working temperature::
-
Anti-freezing -40 degree

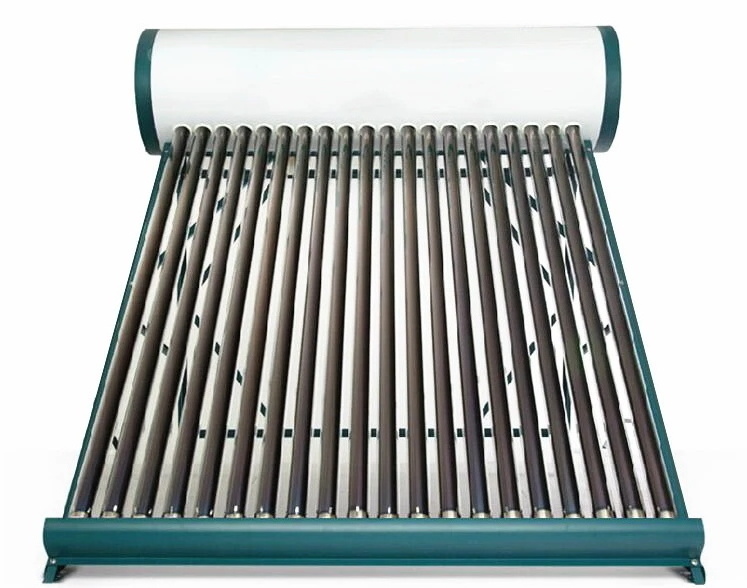

China Manufacturer Solar Energy Product Non Pressure Solar Water Heater System
|
Water Tank |
||
|
Material of outer tank: |
Galvanized Steel |
|
|
Material of inner tank: |
Food grade stainless steel 304-2B |
|
|
Tank insulating layer: |
50 mm thickness with high density polyurethane foam |
|
|
Welding: |
Argon arc welding |
|
|
Tank structure: |
Inlet, Outlet, Drainage & Air Vent or Customized |
|
|
Vacuum Tube |
||
|
Tube structure: |
All-glass double deck co-axial structure |
|
|
Glass material: |
High borosilicate 3.3 glass |
|
|
Outer tube diameter and glass thickness: |
Ø 58± 0.7mm; Glass thickness 1.6 ± 0.15mm |
|
|
Inner tube diameter and glass thickness: |
Ø 47± 0.7mm; Glass thickness 1.6 ± 0.15mm |
|
|
Tube size: |
58*1800mm |
|
|
Absorptive coating property: |
Structure |
Cu / SS-ALN(H) / SS-ALN (L) / ALN |
|
Sediment method |
Three targets magnetron sputtering plating |
|
|
Specific absorption |
0.93-0.96(AM1.5) |
|
|
Emission ratio |
0.04-0.06(800C± 50C) |
|
|
Solar irradiation for obtaining
|
Φ =58 H≤ 4.7MJ/m² |
H=3.7-4.2MJ/m² |
|
Vacuum tightness: |
5.0× 10 -3 Pa |
|
|
Idle sunning property parameters: |
260-300 m² . C/KW |
|
|
Average heat loss coefficient: |
ULT=0.4~0.6W/(M 2.0 C) |
|
|
Resistant Hail: |
≤ 25mm |
|
|
Life span: |
15 years |
|
|
Bracket |
||
|
Bracket material: |
Pre-Coated Galvanized Steel |
|
|
Bracket angle: |
22, 45, 52 degree optional |
|
|
Fastening pieces: |
Stainless Steel Nut Bolt |
|
|
Thickness |
1.5mm |
|
1 Working principle
1 . Solar vacuum tube was evacuated into the tank, the coating inside of tube can absorb heat energy from sunshine.
2. The cold water in water tank flows into the tube and become hot because of different density between cold and hot, there will be a natural circulation in the tube. Hot water will float back to tank.
3. The polyurethane heat insulation layer can keep the water warm about 3 days without any sunshine. Consumer can enjoy comfortable bathe anytime.
2 Features
1. Imported Stainless Steel.
2. Reliable and efficient.
3. CE Approved.
4. Stable solar conversion during the day.
5. Easy installation.
6. Ideal for many solar water heating applications.
7. Can be used for heating water, room and floor.8. Simple structure and working principle.
9. 5 years' warranty for the whole system.
10. Environmental.
3 Advantages of non-pressure vacuum tube solar water heater
Comparing with non-pressure flat panel solar water heater:
1. Higher efficiency collector, much lower heat loss;
2. Super anti-freezing performance for cold weather;
3. Convenience in parts carrying and installation;
4. Much lower maintenance cost for collector.
Comparing with heat pipe solar water heater :
1. More cost effective;
2. Lower maintenance cost;
4 Remarks
1.Lead-time: 7-15 working days after receiving payment
2.Payment Term: T/T, L/C, Western Union
3.Warranty: 5 Years for the full system, 15 Years for the vacuum tube, and 1 year for accessories
4.Trade Term: FOB, CFR and CIF
5. Contact: Ms. Vivian Zhang Mobile: (00)86-15868331299 Skype: vivian.zhang1016
