* Entrance, Privacy, Passage are available*Fit all standard doors form 1-3/8" to 1-3/4" (35mm to 45mm) thickness. Also can fit 2'' (50mm) thickness doors upon request .
*Brass knob, Stainless steel knob or Wooden knob are available.
* 65mm Rosette
*Fixed 2-3/8" or 2-3/4" (60mm or 70mm) backset latch.
*US3, US5, US10B, US15, US15A, US26, US26D or US10B finishes available.
*Brass cylinder with nickel plated brass keys and 5-pin tumbler mechanism.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IS
-
Model Number:
-
BY587
-
Material:
-
Zinc Alloy/stainle steel/SUS304/201, iron/brass
-
Finish:
-
SS/PB/AB/AC/ORB
-
Door thickness:
-
30-50mm
-
Key:
-
3 pcs brass / iron, common keys, computer keys
-
Function:
-
Entrance/Bathroom/Passage
-
Packing:
-
Double Blister/box
-
Logo:
-
Accept Customize LOGO
-
Weight:
-
370-850g
-
Certification:
-
CE,ISO,ANSI
Quick Details
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Entry
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IS
-
Model Number:
-
BY587
-
Material:
-
Zinc Alloy/stainle steel/SUS304/201, iron/brass
-
Finish:
-
SS/PB/AB/AC/ORB
-
Door thickness:
-
30-50mm
-
Key:
-
3 pcs brass / iron, common keys, computer keys
-
Function:
-
Entrance/Bathroom/Passage
-
Packing:
-
Double Blister/box
-
Logo:
-
Accept Customize LOGO
-
Weight:
-
370-850g
-
Certification:
-
CE,ISO,ANSI
Why Choose Us
Product Description
|
Door Prep
|
Cross bore 2-1/8"(54mm),Edge bore1"(25mm),Latch face 1"x2-1/4"(25x57mm)
|
|
Door Thick
|
Fit wood or metal doors from 1-3/8" (35mm) to 2"(50mm) thick as standard
|
|
Rose
|
65mm&75mm(3")
|
|
Backset
|
Standard 2-3/8"(60mm).,2-3/4"(70mm) and adjustable latch (2-3/8" or 2-3/4") also available per request.
|
|
Latch Bolt
|
1/2"(12mm)latch extension. 2-3/4"(70mm) curved lip strike as standard. 2-1/4"(57mm) strike available upon request.Dead locking for
keyed functions. |
|
Cylinder
|
5 pin tumbler cylinder as standard, 6 pin tumbler Removable & rekeyable cylinder also available.Schlage C keyway or Kwikset or C4
keyway and other optional. |
|
Faceplate
|
Square corner 1"x2-1/4"(25x57mm) standard. radius corner also available.
|
|
Strike
|
Full lip D-shape 1-3/4" X 2-1/4"(44x57mm) Square or Radius standard,T-Shape 1-3/4"x2-3/4"(44x70mm)Square corner standard.
|
|
Handing
|
Fully reversible for either right or left hand door.
|
|
Sample
|
Available
|
|
Finishing
|
SS(US32D),SP(US32),PB(US3),SC(US26D) and other optional.
|
|
Function
|
ET(Entrance),BK(Privacy),PS(Passage),ST(Storeroom),CL(Classroom), HT(Hotel),DM(Dummy)
|
|
Key Way
|
Computer,Schlage, C4 or required.KA with deadbolt to improve security
|
|
AB(Antique Brass)
|
BS(Brass Self Color)
|
BB (Brass Brushed)
|
AC (Antique Copper)
|
|
AC (Antique Copper)
|
BP(Brass Plated)
|
PB(Polished Brass Plated)
|
NB (Nickel Brushed)
|

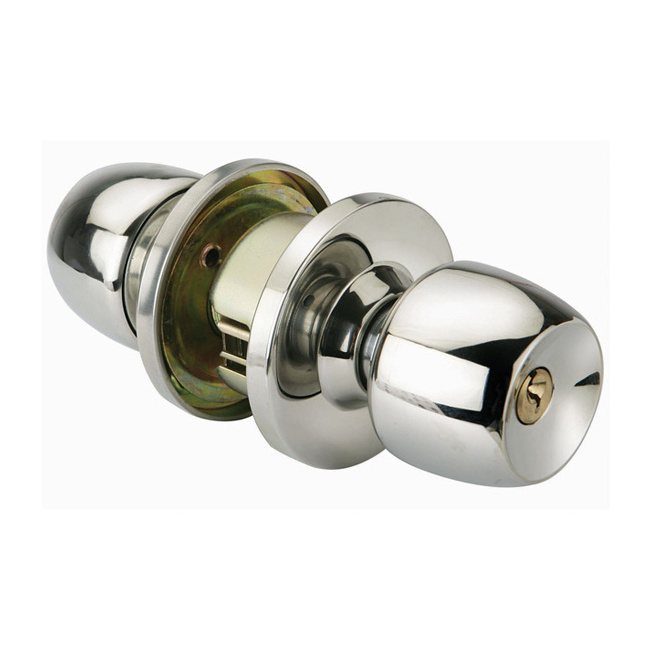

KNOB LOCK
