Quick Details
-
Color Print Speed:
-
/
-
Max. Resolution:
-
203dpi
-
Brand Name:
-
WOSO
-
Place of Origin:
-
Guangdong, China
-
Accessory specification:
-
standard
-
Effective Printing Width:
-
80mm
-
Printing Speed:
-
260mm/s
-
Compatible System:
-
WIN2003/WINXP/WIN7/WIN8/WIN10/LINUX/MAC
-
Input Power:
-
AC 100-240V, 50~60Hz
-
Printer Dimension(WxLxH):
-
48mm/52mm/56mm/64mm/68mm/76mm/80mm)
-
Unit Weight:
-
2.35kg
-
Paper cut:
-
Partial cut
-
Print Comand:
-
ESC/POS
-
Interface:
-
USB+Serial+Lan
-
Product name:
-
80mm Thermal Receipt Printer
Quick Details
-
Interface Type:
-
usb+LAN+RS232
-
Max Paper Size:
-
48mm/52mm/56mm/64mm/68mm/76mm/80mm)
-
Black Print Speed:
-
260mm/s
-
Color Print Speed:
-
/
-
Max. Resolution:
-
203dpi
-
Brand Name:
-
WOSO
-
Place of Origin:
-
Guangdong, China
-
Accessory specification:
-
standard
-
Effective Printing Width:
-
80mm
-
Printing Speed:
-
260mm/s
-
Compatible System:
-
WIN2003/WINXP/WIN7/WIN8/WIN10/LINUX/MAC
-
Input Power:
-
AC 100-240V, 50~60Hz
-
Printer Dimension(WxLxH):
-
48mm/52mm/56mm/64mm/68mm/76mm/80mm)
-
Unit Weight:
-
2.35kg
-
Paper cut:
-
Partial cut
-
Print Comand:
-
ESC/POS
-
Interface:
-
USB+Serial+Lan
-
Product name:
-
80mm Thermal Receipt Printer
High quality printing speed Auto Cutter pos printer with fake money detector machine 80mm hermal receipt printer
Barcode Lable Printer
Barcode Printer Thermal Transfer
Industrial Barcode Printer
Direct thermal Shipping Label Printer
Product Paramenters
|

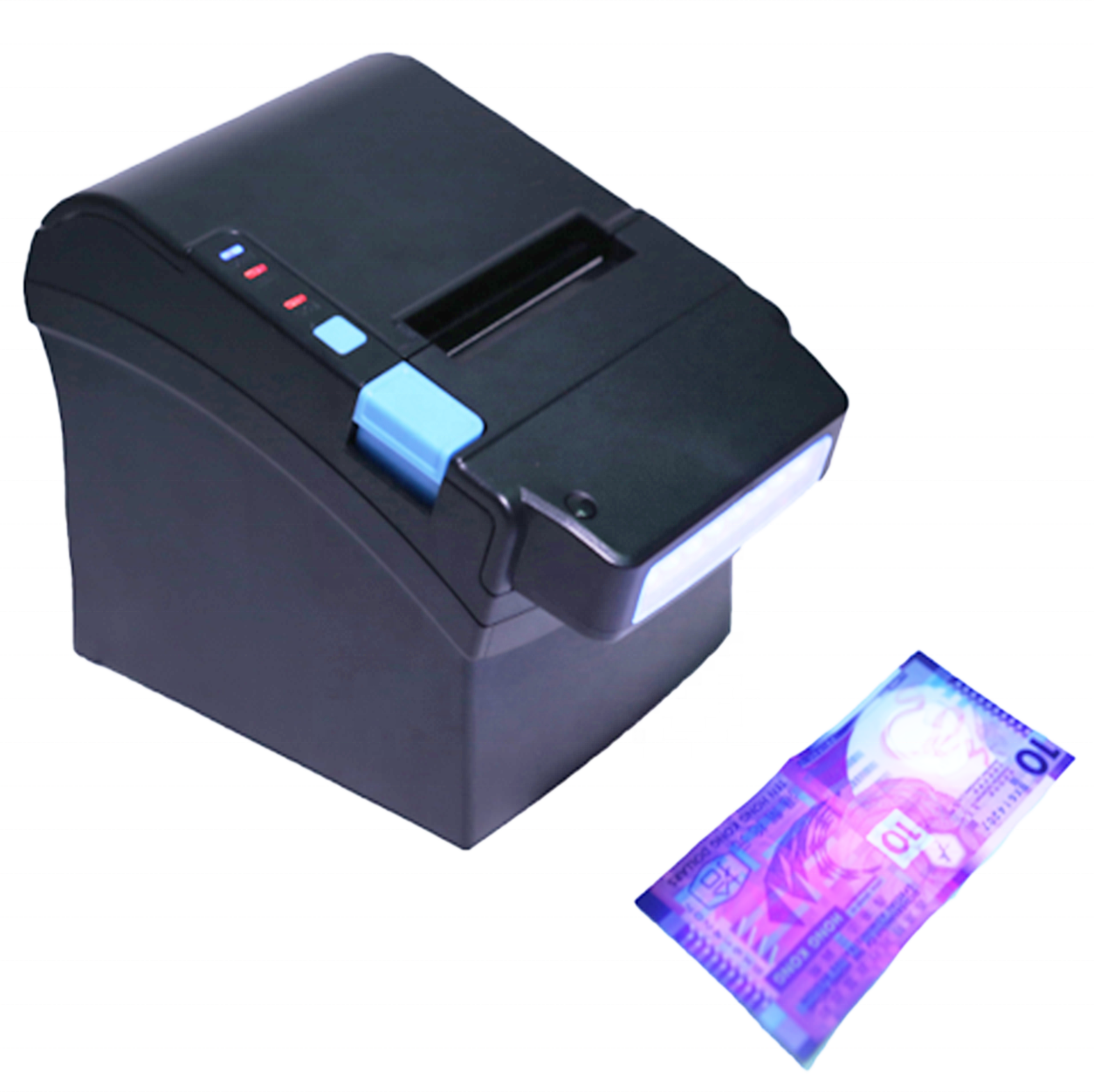

High quality printing speed 80MM Thermal paper printer with money detecting function DP80USL-20T
|
|
|
|
Print Method
|
Direct Thermal
|
|
|
Print Speed
|
260mm/s
|
|
|
Resolution
|
576dots/line or 572dots/line
|
|
|
Printing Width
|
72mm
|
|
|
Paper separator(option)
|
48mm/52mm/56mm/64mm/68mm/76mm/80mm
|
|
|
Interface
|
USB+Serial+Lan
|
|
|
Input buffer
|
256kbytes
|
|
|
NV Flash
|
256kbytes
|
|
|
Main features
|
Support queuing function by friendy tools.
|
|
|
|
Money detector is going to open 20s auto once receipt print finish.
|
|
|
|
Set money detecting time by command.
|
|
|
|
Check mechanism age by command.
|
|
|
|
Receipt printer and money detector all in one save a lot of space and cost.
|
|
|
|
Thick and solid plastic house and compelet stainless steel inner structure.
|
|
|
|
Support 58/80mm paper width(Option a paper guider).
|
|
|
Font A
|
12x24
|
|
|
Font B
|
9x17
|
|
|
Chinese
|
GB18030,BIG5 24x24dots
|
|
|
Japanese/Korea
|
Support
|
|
|
User-defined
|
Support
|
|
|
1D
|
UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128
|
|
|
2D
|
QR code
|
|
|
Sensors
|
Paper out, paper near end, cover open, cutter jam,paper jam and black mark detection(Optional)
|
|
|
Input
|
AC 100V-240V 50/60HZ
|
|
|
Output
|
DC 24V/2.5A
|
|
|
Paper Type
|
Thermal Receipt Paper
|
|
|
Paper Width
|
48mm/52mm/56mm/64mm/68mm/76mm/80mm
|
|
|
Paper Thickness
|
0.06~0.08mm
|
|
|
Roll Dia
|
Max. Ø 83 mm
|
|
|
Paper Load
|
Easy paper loading
|
|
|
Paper Cut
|
Manual tear or Auto-cutter
|
|
|
Working Condition
|
0°C~45°C, 10%~80%RH
|
|
|
Storage Condition
|
-10°C-60°C,10%~90%RH
|
|
|
Dimensions
|
184(D)x143(W)x148(H)mm
|
|
|
Net weight
|
2.38kg Gross weight 2.54kg
|
|
|
Printing head
|
150KM
|
|
|
cutter
|
1.5million
|
|
|
Accessories
|
data cable,power adaptor,power code,paper roller,CD,manual,paper separator(option)
|
|
|
Individual box
|
Dimension 25X20X16cm(LXWXH） 1unit/carton
|
|
|
Master carton
|
Dimension 63X27X35cm(LXWXH）6units/carton
|
|
|
Emulation
|
ESC/POS
|
|
|
Driver
|
Windows XP /Vista/ Win7/Win8 /Win10/Win 2000/Win CE/OPOS/JPOS
|
|
|
SDK
|
Android, IOS
|
|
