Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Chuanda
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
400*1520/ 400*1830
-
Weight (KG):
-
1 kg
-
Product name:
-
Heavy duty ptfe mesh conveyor belt for truck loading unloading
-
Feature:
-
Non stick, reusable, heat-resistant and so on
-
Color:
-
Black, brown
-
Mesh Size:
-
0.5*1,1*1,2*2,2*2.5,4*4,10*10mm
-
Width:
-
Within 3m
-
Weight:
-
600g/m
-
Thickness:
-
0.5mm-1mm
-
Length:
-
Customized
-
Temperature resistance:
-
-70-260°C
-
Samples:
-
Free samples
Quick Details
-
Power:
-
0.4kW - 22kW
-
Warranty:
-
Unavailable
-
Width or Diameter:
-
Other
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Chuanda
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
400*1520/ 400*1830
-
Weight (KG):
-
1 kg
-
Product name:
-
Heavy duty ptfe mesh conveyor belt for truck loading unloading
-
Feature:
-
Non stick, reusable, heat-resistant and so on
-
Color:
-
Black, brown
-
Mesh Size:
-
0.5*1,1*1,2*2,2*2.5,4*4,10*10mm
-
Width:
-
Within 3m
-
Weight:
-
600g/m
-
Thickness:
-
0.5mm-1mm
-
Length:
-
Customized
-
Temperature resistance:
-
-70-260°C
-
Samples:
-
Free samples

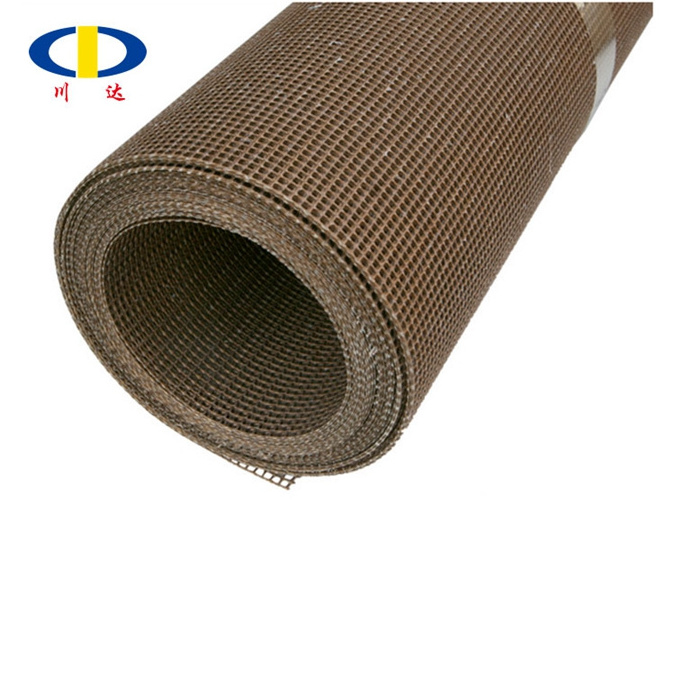

Heavy duty ptfe mesh conveyor belt for truck loading unloading
| Name | Heavy duty ptfe mesh conveyor belt for truck loading unloading |
|---|---|
| Type | PTFE mesh conveyor belt |
| Material | PTFE, PTFE coated fiberglass |
| Color | Black, brown |
| Mesh size | 0.5*1,1*1,2*2,2*2.5,4*4,10*10mm |
| Width | Within 3m |
| Length | Customized |
| Thickness | 0.5mm-1mm or customized |
| Temperature resistance | -70° ~260 ° |
| Application | Mining,coal,food dryer, power,Textile,screen printing |
| Certificate | / / PONY/ ROHS/ REACH/ LFGB |
| Feature | Non stick, reusable,reversible, 100% PFOA free,washable,heat-resistant , eco-friendly |
| Price | Get your special discount here |
ptfe coated mesh conveyor belt Product Description
PTFE Belting
manufactures various of belts with its material of smooth ptfe fabric,ptfe mesh, kevla, silicon rubber etc to custom specifications, depending on each customer’s individual needs. To help determine the best belt for your
unique application, you need provide the following information for our experienced technical manager to discuss
your requirement.
ptfe coated mesh conveyor belt
PTFE coated fiberglass open mesh belt select fine fiberglass, Kevlar or Nomex as basic weaving material,
coated with excellent PTFE resin to make it into various of PTFE conveyor belt.
ptfe coated mesh conveyor belt Properties:
1. Outstanding temperature resistance (from -170ºC to +260ºC)
2. Resistant to corrosive agents
3. Low thermal mass
4. Controlled porosity
5. Superior non-stick surface, easy to clean
6. Dimensional stability
7.Non-toxic
ptfe coated mesh conveyor belt Usage:
PTFE open mesh belts are used in screen printing to transport imprinted materials through drying ovens and
cooling chambers. These belts are long lasting and perform well over a wide range of operating temperatures.
Fiber PTFE belt fabrication department can supply a wide variety of splices and edge reinforcements in order to respond
customer’s specific applications.
|
Item |
Mesh Size |
material |
Thickness |
Weight |
Temperature resistance |
Max Width |
Tensile Strength |
|
6001 |
1x1mm |
fiberglass |
0.5mm |
370g/m² |
-70-260°C |
4000mm |
310/290N/cm |
|
6002 |
2x2mm |
fiberglass |
0.7mm |
450g/m² |
-70-260°C |
4000mm |
350/310N/cm |
|
6003 |
4x4mm |
fiberglass
|
1.0mm |
400g/m² |
-70-260°C |
4000mm |
390/320N/cm |
|
6004 |
4x4mm |
fiberglass |
1.0mm |
450g/m² |
-70-260°C |
4000mm |
390/320N/cm |
|
6007 |
4x4mm |
Kevlar + fiberglass |
1.2mm |
600g/m² |
-70-260°C |
4000mm |
895/370N/cm |
|
6008 |
4x4mm |
fiberglass |
1.2mm |
580g/m² |
-70-260°C |
4000mm |
560/360N/cm |
|
6010 |
4x4mm |
Kevlar |
1.0mm |
500g/m² |
-70-260°C |
4000mm |
900/600N/cm |
|
6012 |
4x4mm |
fiberglass
|
1.0mm |
550g/m² |
-70-260°C |
4000mm |
395/370N/cm |
|
6013 |
10x10mm |
fiberglass |
1.0mm |
450g/m² |
-70-260°C |
4000mm |
360/300N/cm |
|
6014 |
0.5x1mm |
fiberglass |
0.5mm |
420g/m² |
-70-260°C |
4000mm |
310/290N/cm |
|
6015 |
2x2.5mm |
fiberglass |
0.9mm |
600g/m² |
-70-260°C |
4000mm |
390/320N/cm |
