Quick Details
-
IP Rating:
-
IP68
-
Function:
-
SPST,SPDT,DPST,DPDT...
-
Housing color:
-
Black/White
-
Lamp:
-
With or Without
-
Lamp color:
-
Red/Yellow/Green/Blue/Orange/White
-
Lamp voltage:
-
12V/24V/36V/110V/220V/others
-
Contact Resistance:
-
< 50MΩ
-
Insulation Resistance:
-
>1000MΩ
-
Product type:
-
marine instrument panel
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Certificate:
-
CE,Rohs,CQC
-
IP Rating:
-
IP68
-
Function:
-
SPST,SPDT,DPST,DPDT...
-
Housing color:
-
Black/White
-
Lamp:
-
With or Without
-
Lamp color:
-
Red/Yellow/Green/Blue/Orange/White
-
Lamp voltage:
-
12V/24V/36V/110V/220V/others
-
Contact Resistance:
-
< 50MΩ
-
Insulation Resistance:
-
>1000MΩ
-
Product type:
-
marine instrument panel
marine instrument panel
fuse base latching button switch

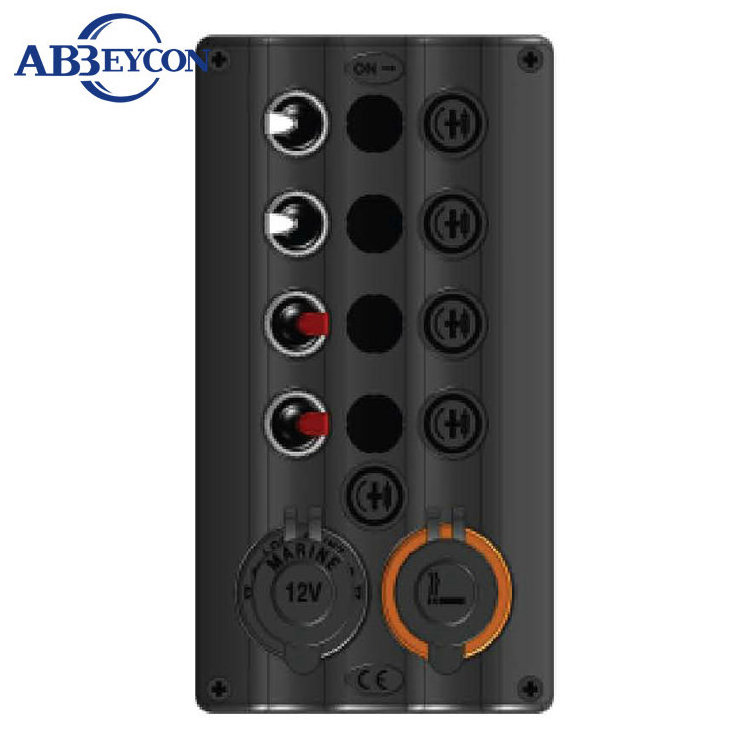

Marine Electric Boat and RV marine instrument panel
Features:
|
PRODUCT TYPE |
High quality Waterproof rocker switch |
|
RATING: |
10A 125V; 6A 250V; 20A 125V; 15A 250V |
|
MECHANICAL LIFE: |
>50000 CYCLES |
|
ELECTRICAL LIFE: |
>10000 CYCLES |
|
WITHSTAND VOLTAGE: |
>1500V/MINUTE |
|
AMBIENT TEMPERATURE: |
-10°C~+85°C |
|
STORAGE TEMPERATURE: |
-25°C~+85°C |
|
MATERIAL: |
Black or White UV resistant contoured plastic panel (High Quality Plastic) |
|
PROCESS: |
Be screen printing and laser carving |
|
Standard Face surface size: |
0.96' x 1.93' |
|
Standard Cutout Dimensions: |
0.83' x 1.46' |
$
keywords$
Production Specification
(1) 100% test before shipment
(2) More than 50,000cycles life
(3) High current rating to 20 amps
(4) New style with rounded corners
(5) Lighted and non-lighted
(6) Maintain-action and momentary
We can offer different kinds of symbols. All symbols are printed directly onto the switch face using modern high tech inks and printers to ensure long image life. we do not use stickers which will wear off in a very short time.
The switch is rated at 20amp's, however in ALL case we recommend that you wire the accessory through a fused relay.
We have many kinds of Marine rocker switches and panels, For more details, pls click here to visit our website. Thanks! marine instrument panel
Different kinds of Marine switches (Panels)and other switches from us:
marine instrument panel
1: Neutral packing : Blister inner box bubble +carton
2: Upon customers' request, but the price is different with neutral packing
Shipping:
1. DHL, EMS, TNT, Fedex, UPS and others international express.
2. By air or by sea. fuse base
Payment term:
1.Payment:
Paypal, Western Union, Aliexpress, T/T
2.Port of loading:
Ningbo,Wenzhou or Shanghai Port
3.Discounts:
offered based on order quantities
4.Delivery time:
3-30 days according to order quantities.
We WARMLY appreciate your positive feedback. We value our customers so much.If you have any problem, PLEASE FEEL FREE and DON'T HESITATE TO CONTACT US BY EMAIL IMMEDIATEDLY, we are always there to offer help. marine instrument panel
Why Us?
1. Quality assurance:
All the products will go through lots of tests carefully before dispatch
2. Competitive production capacity
and
fast shipping
3. Manufactuer's price:
Factory direct sale, most competitive price.
About Our products range:
We manufacture and provide all kind of marine rocker switch,push button switch,tact switch, push switch,micro switch, toggle switch,fuse holder and others, With reliable quality assurance, prefect technical services and the best price, our products are sold well worldwide.
