Mini Hydro Power Plant Widely Used Low Water Head Franics Turbine / Micro Turbine Franics

Water Turbine:

1.Power: 100kW-30MW
2.Water Turbine Type:

Pelton turbine, Francis turbine, Turgo turbine, Kaplan Turbine, Turgo Turbine, Tubular Turbine

4.Life time:30-50 years

5.Water Head:

1): Axial turbine and Tubalar Turbine: Low water head

2): Mixed flow turbine: Middle water head

3): Impulse Turbine: High water head

6: Arrangement type  : Vertical and Horizontal

Water Turbine Generator:

1: Output: 100KW, 200KW, 500KW, 1000KW, 2000KW, 5000KW

2: Voltage: 400V, 800V, 6300V, 10500V

3: Wheel material : Stainless steel

4: Wheel diameter: 0.5m-5m

5: Frenquency: 50Hz / 60Hz

6:Efficiency: 87.5-98%

Packaging : Exporting Wooden package

Delivery Time : 1-6 months

Warranty : 5Years

Place of Origin : Sichuan China

Loading Port : Shanghai China

Brand Name : Woonergy

Mini Hydro Power Plant Widely Used Low Water Head Franics Turbine / Micro Turbine Franics

Where we product be used mainly : Hydro Power Plant

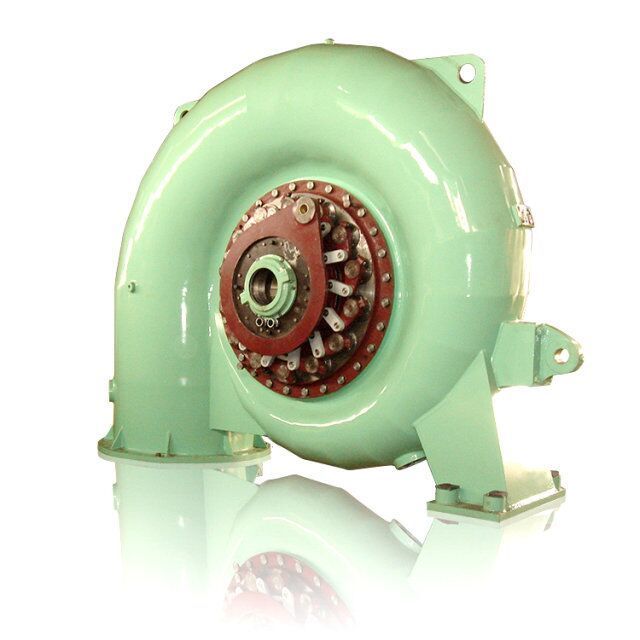

Francis Water Turbine:

Francis Turbine is widely used in hydropower plants with low, middle and high water head commonly ranging from 30m to 300m, The maximum water head can be 500m, The unit has advantages such as: compact structure and high efficiency.

Axial Flow WaterTurbine:

Axial Flow Turbine is used in hydropower plants with low and middle water head commonly ranging from 3m to 30m. It can be divided into Propeller Fix Blade Type  and Kaplan Movable Blade Type , Propeller turbine is used in the power plant whose flow varies little.

Pelton Water Turbine:

Pelton Turbine is used in hydropower plants with middle and high water head, generally ranging from 90 m to 600 m, the maximum water head can reach 1200 m. It can be divided into single nozzle type and multiple nozzle type.

Turgo Water turbine:

Turgo turbine has its unique application range, is commonly used in the hydropower plants with water head ranging from 25 m to 200 m.

Tubular Water Turbine:

tubular turbine is a new hi-tech product. It is well suitable for hydropower plants with water head ranging from 5 m to 20 m and unit capacity below 15MW. It has the following particular advantages: Its efficiency is higher than shaft-extension type tubular units and axial flow units; its cost is lower than axial flow units and bulb tubular units, and it is convenient to operate and maintain.  tubular turbine is divided into fixed blade type  and moveable blade type.

Water Turbine Wheel:
