Quick Details
-
Brand Name:
-
WEHO
-
Model Number:
-

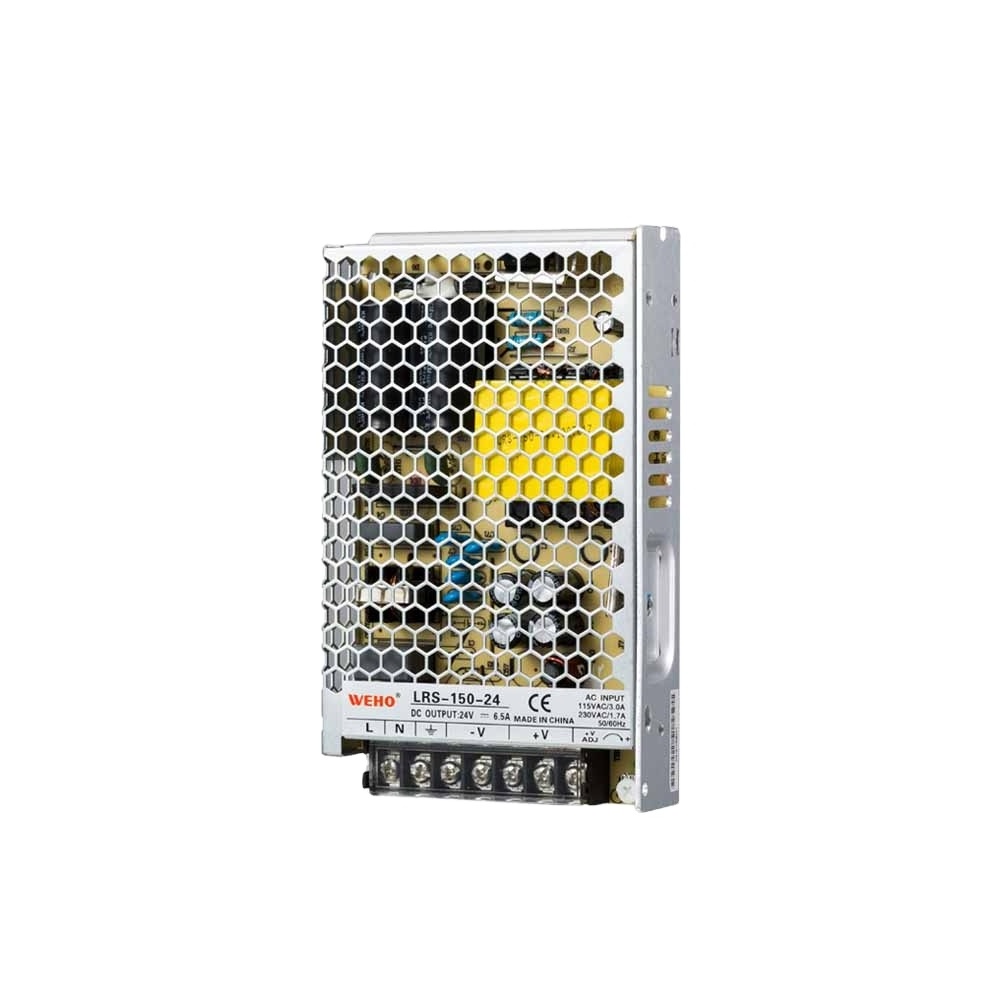

LRS-150-24
-
Output Frequency:
-
47~63HZ
-
Output Current:
-
6.5A
-
Output protections:
-
OLP/OVP/SCP
-
Test:
-
100% full load burn-in test
-
MOQ:
-
1-5pcs sample order
-
No Load power consumption:
-
<0.5W
-
Payments:
-
T/T/Western Union/Paypal
-
Shipping:
-
Sea Air DHL FEDEX EMS UPS TNT
-
Material:
-
Aluminium
Quick Details
-
Input Voltage:
-
110/220V, 220V
-
Output Voltage:
-
24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WEHO
-
Model Number:
-
LRS-150-24
-
Output Frequency:
-
47~63HZ
-
Output Current:
-
6.5A
-
Output protections:
-
OLP/OVP/SCP
-
Test:
-
100% full load burn-in test
-
MOQ:
-
1-5pcs sample order
-
No Load power consumption:
-
<0.5W
-
Payments:
-
T/T/Western Union/Paypal
-
Shipping:
-
Sea Air DHL FEDEX EMS UPS TNT
-
Material:
-
Aluminium
| Model | LRS-150-12 | LRS-150-15 | LRS-150-24 | LRS-150-36 | LRS-150-48 |
| DC Voltage | 12V | 15V | 24V | 36V | 48V |
| Rated Current | 12.5A | 10A | 6.5A | 4.3A | 3.3A |
| Current Range | 0~12.5A | 0~10A | 0~6.5A | 0~4.3A | 0~3.3A |
| Rated Power | 150W | 150W | 156W | 154.8W | 158.4W |
| Ripple and Noise | 150mvp-p | 150mvp-p | 200mvp-p | 200mvp-p | 200mvp-p |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Setup, Rise time | 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load | ||||
| Hold up time | 16ms/230VAC 12ms/115VAC at full load | ||||
| Voltage Range | 85 ~ 264VAC 120 ~ 370VDC | ||||
| Frequency Range | 47~63HZ | ||||
| Efficiency | 87.5% | 89% | 89% | 89% | 90% |
| AC Current | 2.8A/115VAC 1.6A/230VAC | ||||
| Inrush Current | COLD STAR 60A/230VAC | ||||
| Leakage Current | <0.75mA / 240VAC | ||||
| Over Load | 110 ~ 140% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| Working Temp | -20 ~ +70℃ (Refer to "Derating Curve") | ||||
| Working Humidity | 20 ~ 90% RH non-condensing | ||||
| Storage temp,humidity | -40 ~ +85℃, 10 ~ 95% RH | ||||
| Temp. Coefficient | ±0.03%/℃ (0 ~ 50℃) | ||||
| Withstand Voltage | I/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | ||||
| lsolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| Demension | 159*97*30mm (L*W*H) | ||||
| Weight/Packing | 0.48Kg | ||||
