Quick Details
-
Brand Name:
-
Top Brand
-
Fork Length:
-
1000mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
4995*2470*2250mm
-
Weight (KG):
-
7450 kg
-
Max. travel speed:
-
40km/h
-
Load center distance:
-
500mm
-
Wheel tread:
-
1920mm
-
Brake distance:
-
≤8m
-
Turning radius:
-
≤4020mm
-
Gradeability:
-
≥25°
-
Max. traction force:
-
≥55kN
-
Wheelbase:
-
2850mm
-
Luffing angle:
-
-3~65°
-
Fork angle:
-
90~18°
Quick Details
-
Min. Lifting Height:
-
175mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Top Brand
-
Fork Length:
-
1000mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
4995*2470*2250mm
-
Weight (KG):
-
7450 kg
-
Max. travel speed:
-
40km/h
-
Load center distance:
-
500mm
-
Wheel tread:
-
1920mm
-
Brake distance:
-
≤8m
-
Turning radius:
-
≤4020mm
-
Gradeability:
-
≥25°
-
Max. traction force:
-
≥55kN
-
Wheelbase:
-
2850mm
-
Luffing angle:
-
-3~65°
-
Fork angle:
-
90~18°
Contact Way
Sales Manager :
Golden Ge
Mobile / Whatsapp/ Skype/WeChat:
+86-19301493516
E-mail address:
golden@newindu.com
Products Description

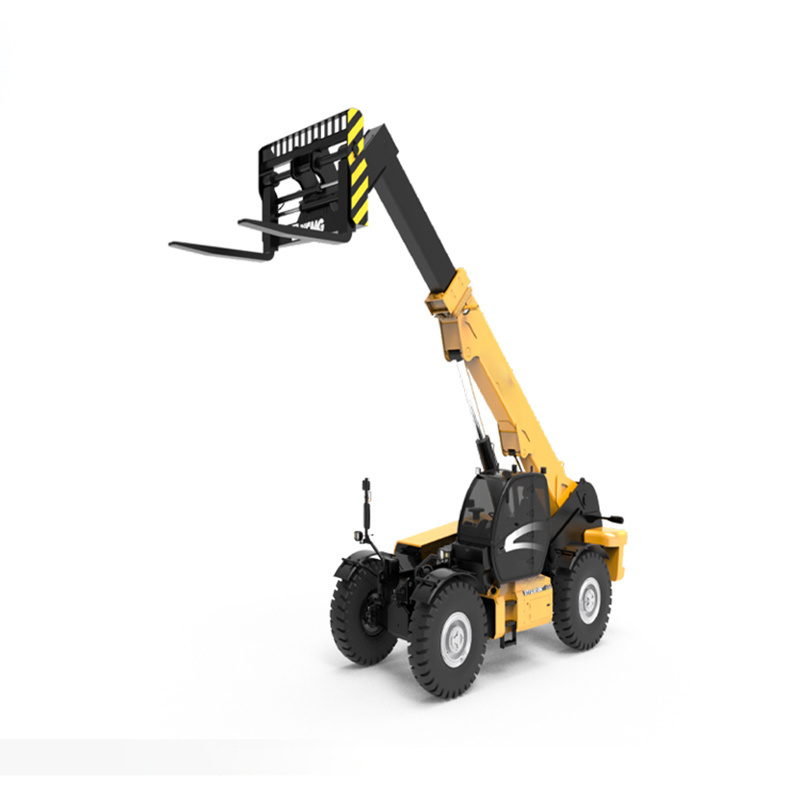

XC6-3006K/XC6-3007K Cheap Price Telehandler Telescopic Handler
XC6 is the latest agricultural version telehandler which features the highest operation simplicity, safety and efficiency. The
electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.
* With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
* The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
* The electro-hydraulic proportional control for the working system features accurate, stable, and efficient operations.
electronically controlled hydrostatic drive system and continuously variable drive technology achieve more stable and reliable operations. The intelligent independent cooling system features high energy-saving and efficiency.
* With compact short wheelbase and lateral engine arrangement, this machine features high handinessand flexibility.
* The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
* The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
* The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
* The electro-hydraulic proportional control for the working system features accurate, stable, and efficient operations.
Product Paramenters
|
|
Unit
|
XC6-3006K
|
XC6-3007K
|
|
Gross weight
|
kg
|
7250
|
7450
|
|
Engine power
|
kW
|
90
|
90
|
|
Rated load
|
kg
|
3000
|
3000
|
|
Effective load at maximum
forward reach
|
kg
|
1250
|
1250
|
|
Maximum lifting height
|
mm
|
6200
|
6950
|
|
Maximum forward reach
|
mm
|
2990
|
3690
|
|
Center distance of load
|
mm
|
500
|
500
|
|
Luffing angle
|
°
|
-3~65
|
-3~65
|
|
Fork angle
|
°
|
90~18
|
90~18
|
|
Maximum traction force
|
kN
|
≥55
|
≥55
|
|
Gradeability
|
°
|
≥25
|
≥25
|
|
Maximum traveling speed
|
km/h
|
40*
|
40*
|
|
Turning radius
|
mm
|
≤4020
|
≤4020
|
|
Braking distance
|
m
|
≤8
|
≤8
|
|
Overall length
|
mm
|
4620
|
4820
|
|
Overall width
|
mm
|
2355
|
2355
|
|
Overall height
|
mm
|
2415
|
2460
|
|
Wheelbase
|
mm
|
2850
|
2850
|
|
Wheel tread
|
mm
|
1920
|
1920
|
|
Fork length
|
mm
|
1000
|
1000
|
|
Bale clamp diameter
|
mm
|
800-1800
|
800-1800
|
Product Image
