Quick Details
-
Productivity:
-
18M³/H
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
ACHIEVE
-
Weight:
-
4000 kg
-
Product name:
-
Concrete Line Pump Truck
-
Application:
-
Construction Projects
-
Capacity:
-
50m3/h
-
Color:
-
Customised
-
Concrete pump type:
-
Reliable Concrete Pumping
-
Usage:
-
Construction Profiles
-
Hopper capacity:
-
500L
-
After Warranty Service:
-
Video technical support,Online support
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Local Service Location:
-
Philippines,Indonesia,Australia
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
200M
-
Max. horizontal conveying distance:
-
20M
-
Productivity:
-
18M³/H
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
ACHIEVE
-
Weight:
-
4000 kg
-
Product name:
-
Concrete Line Pump Truck
-
Application:
-
Construction Projects
-
Capacity:
-
50m3/h
-
Color:
-
Customised
-
Concrete pump type:
-
Reliable Concrete Pumping
-
Usage:
-
Construction Profiles
-
Hopper capacity:
-
500L
-
After Warranty Service:
-
Video technical support,Online support
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Local Service Location:
-
Philippines,Indonesia,Australia

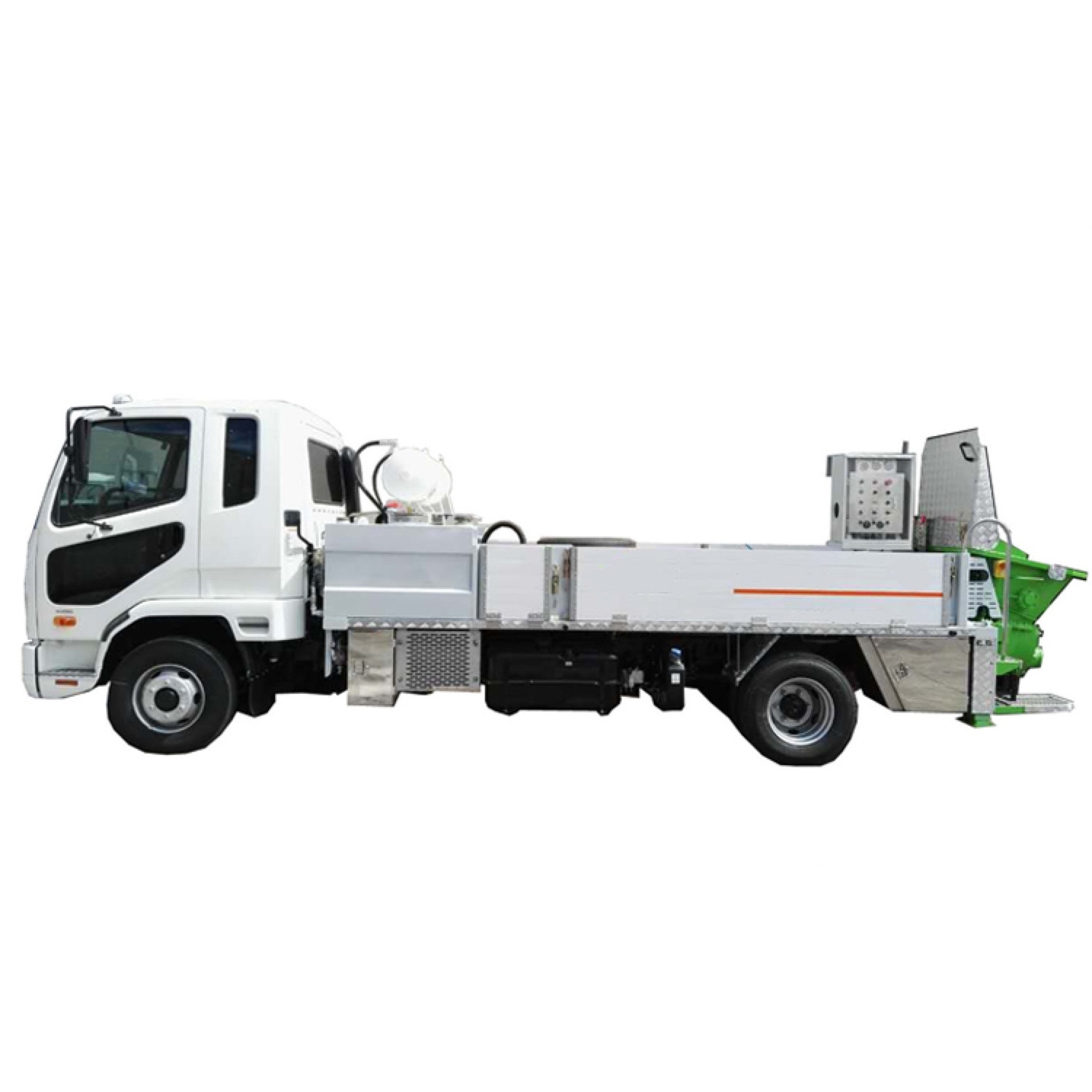

AI-50CLPP PTO Driven Concrete Line Pump Concrete Pump Machinery
Truck-mounted Concrete Line Pump PTO Driven Concrete Line Pump, Concrete Pump
AI-50CLPP for Australia
Truck mounted concrete Line Pump for Hot Sale PTO Driven Concrete Line Pump Concrete Pump Machinery AI-50CLPP for Australia
Truck mounted concrete Line Pump for Hot Sale PTO Driven Concrete Line Pump Concrete Pump Machinery AI-50CLPP for Australia
|
Items |
|
Model |
|
|
AI-50CLPP |
|||
|
Pumping System |
Max. Pumping Volumn |
m 3 /h |
50 |
|
Max. Pumping Pressure |
MPa |
10 |
|
|
Pumping Frequency |
min-1 |
24.3 |
|
|
Swing Type |
|
S Tube |
|
|
Hydraulic Oil Cylinder Diameter × Stroke |
mm |
DN 100 × 1200 |
|
|
Concrete Cylinder Diameter × Stroke |
mm |
DN 180 × 1200 |
|
|
Hopper Capacity × Feeding Height |
L × mm |
500 × 1400 |
|
|
Output Diameter |
mm |
DN 180 |
|
|
Max. Aggeateer Diameter |
mm |
40 |
|
|
Slump |
cm |
12~23 |
|
|
Upper- structure |
Weight |
kg |
4900 |
|
Dimension(Length × Width × Height) |
mm |
7515×2300×2589 |
|
|
Hydraulic System |
Hydraulic System Type |
|
Open loop |
|
Hydraulic System Pressure |
MPa |
32 |
|
|
Hydraulic Oil Tank |
L |
280 |
|
|
Hydraulic Oil Cooling Type |
|
Air Cool |
|
|
Cleaning Type |
|
Water + Air Wash |
|
|
Water Tank |
L |
500 |
|
|
Others |
Lubrication System |
|
Auto-lubirication |
|
Control Sytem |
|
Manual Control Box +HBC Raido Remote Control |
|
|
|
|
|
|
|
Copy Right @ 2019 ACHIEVE INNOVATIONS (CHANGSHA) CO., LTD. |
|||
AI-50CLPP PTO Driven Concrete Line Pump Concrete Pump
Tailor-Made Customized Made for Australia
Design Drawing
AI-50CLPP PTO Driven Concrete Line Pump Concrete Pump Tailor-Made Customized Made
PUTZMEISTER / SCHWING / CIFA / ZOOMLION / SANY Pumping System Customized are all available! Contact us soon to get your pump!^^
