Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
shunfu
-
Voltage:
-
220V/380V, 50Hz
-
Weight:
-
5000 kg
-
Marketing Type:
-
Hot Product 2022
-
Name:
-

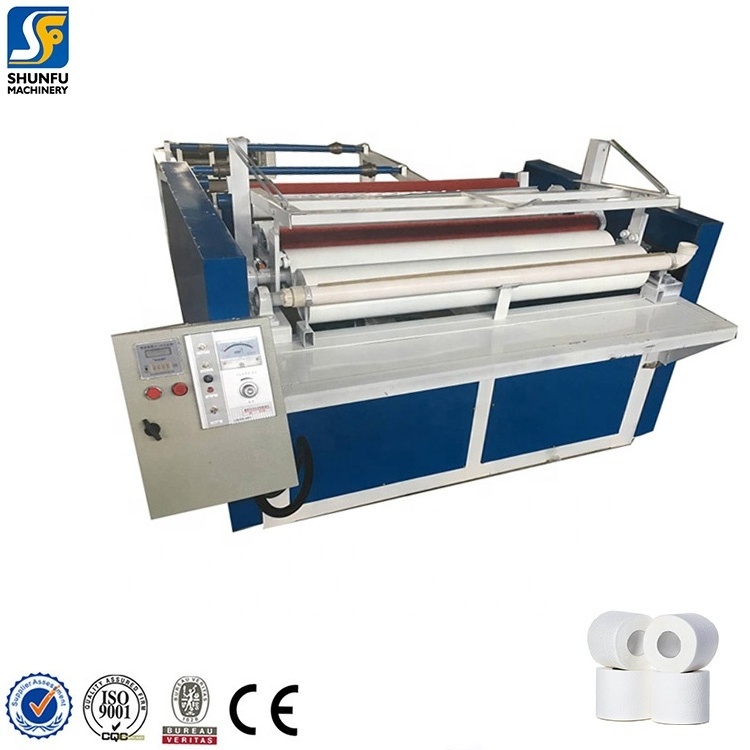

Automatic 1575mm Toilet Paper Rewinding Machine With Band Saw Cutter
-
Material:
-
Toilet paper jumbo roll
-
Output paper:
-
core / coreless toilet paper small roll
-
Jumbo roll width:
-
1800mm
-
Machine speed:
-
150-300 m/min
-
Perforating distance:
-
100-150mm (it can be adjusted)
-
Small roll paper diameter size:
-
60-150mm (tightness can be adjusted)
-
Embossed way:
-
steel roller to rubber roller
-
Jumbo roll paper layers:
-
1-4 ply (custom)
-
Embossing pattern:
-
Custom
Quick Details
-
Type:
-
Toilet Paper Rewinding Machine
-
Production Capacity:
-
200 m/min
-
Max. workable width:
-
1800mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
shunfu
-
Voltage:
-
220V/380V, 50Hz
-
Weight:
-
5000 kg
-
Marketing Type:
-
Hot Product 2022
-
Name:
-
Automatic 1575mm Toilet Paper Rewinding Machine With Band Saw Cutter
-
Material:
-
Toilet paper jumbo roll
-
Output paper:
-
core / coreless toilet paper small roll
-
Jumbo roll width:
-
1800mm
-
Machine speed:
-
150-300 m/min
-
Perforating distance:
-
100-150mm (it can be adjusted)
-
Small roll paper diameter size:
-
60-150mm (tightness can be adjusted)
-
Embossed way:
-
steel roller to rubber roller
-
Jumbo roll paper layers:
-
1-4 ply (custom)
-
Embossing pattern:
-
Custom
Small factory toilet roll tissue paper rewinding machine slitting rewinding machine for paper mill and printing
INTORDUCTION
The toilet paper rewinding machine is through rewinding the jumbo roll toilet paper , become it into 2 or 3-layer toilet paper small roll .
CONFIGURATION
| Machine Type | SF-1092 | SF-1575 | SF-1880 | SF-2400 | SF-2800 | SF-3000 | SF-3600 |
| Raw Material Width(mm) | ≤1200 | ≤1800 | ≤2000 | ≤2400 | ≤2800 | ≤3000 | ≤3600 |
| Raw Paper Dia (Jumbo Paper Roll) | Max diameter 1100mm | ||||||
| Finished Roll Core Diameter | Φ30-150 mm | ||||||
| Finished Size | Diameter 50-180mm, adjustable width | ||||||
| Total Power | 5.5-15 kw, stepless variable speed | ||||||
| Dimension(L×W×H) | 6000*2500*1600 mm | ||||||
| Weight | 2800 kg-8800 kg | ||||||
| Perforation Pitch (mm) | 100-150mm | ||||||
| Machine Speed | 150-300 M/Min | ||||||
| Embossing Roll | Steel To rubber | ||||||
| Steel To Woolen | Electromagnetic Speed Regulation Motor | ||||||
| Parameter Setting | PLC Computer Operating System Transmission | ||||||
TOILET ROLL MAKING PROCESS
Four-roller automatic feeding→synchronous conveying→embossing→punching→automatic winding→cutting→packing→sealing.
- Rewinding---The main purpose of the toilet paper rewinding machine is to process the large shaft paper into a long strip of toilet paper roll.
- Cut the paper---The long piece of toilet paper cut by the paper cutter is cut into semi-finished products of the length required by the customer.
-
Packaging---Packaging can be packaged in a packaging machine or manually wrapped, and the semi-finished products of the toilet paper are packaged
and sealed by a sealing machine.
EMBOSSING PATTERN
Toilet paper roll can also be produced with embossed patterns . As long as sending the pattern design drawing to us , we can custom and offer the prices for you to choose.
FINISHED PRODUCTS
The toilet paper rewinding machine can produce toilet rolls of different sizes , including solid rolls and hollow rolls .
WARM TIPS
In order to quote the accurate price for you fastly, pls tell your detailed requirement as follow:
| Questions | Answers |
| What the jumbo roll paper width is _mm? | ≤3600 mm(Can widen) |
| How many layers can be rewinded? | 1-4 ply (custom) |
| You want to produce solid or hollow toilet paper small roll? | If hollow toilet roll, need to put one paper tube firstly, and then rewinding the paper roll, if solid rolls, it doesn't put the paper tube. (following drawing 2) |
| Do you want semi-automatic or full automatic machine? (following drawing 3) | |
| You need the single roll packing machine? |
1. Toilet Paper Jumbo Roll Width
In order to confirm suitable machine model , so pls tell us toilet paper jumbo roll width you will use.
In normally, 1575 / 1880 toilet paper rewinding machine are widely used , of course, final machine model is based on your equirements .
2. Paper Slitting Mahine & Paper Core Machine Choose
The automatic paper rewinding machine has the loading paper core device , can produce hollow toilet paper small roll .
So, if hollow toilet roll , customer need to buy one kraft paper slitting machine , and one paper core making machine . Of course, customer can also buy the paper tube from your local market directly .
3. Semi-auto & Full-auto Toilet Paper Rewinding Line Choose
The toilet paper rewinding machine have two types : full automatic line + semi automatic line, customer can choose one , according to their sutation.
