Achieve performance at scale with the PowerEdge portfolio
Our modern compute platforms are built to scale easily and take advantage of technologies that lift application performance. The PowerEdge R540 rack server combines affordably and versatility, so you can adapt to a variety of applications and meet future demands.Scale compute resources with 2nd Generation Intel® Xeon® Scalable processors and tailor performance based on your unique workload requirements.Optimize application performance with one-button tuning.Enable storage flexibility with up to 14 x 3.5" drives.Free up storage with boot-optimized M.2 SSDs.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
d ell
-
Model Number:
-
R540
-
Place of Origin:
-
Beijing, China
-
DRIVE BAY:
-
12LFF
-
HDD:
-
2t
-
Power Supply:
-
495W
-
RAID Controller:
-
H730P
-
MOQ:
-
1PC
-
Warranty:
-
3 Years
Quick Details
-
Type:
-
Rack
-
Processor Type:
-
3204
-
Processor Main Frequency:
-
1.9GHz
-
Brand Name:
-
d ell
-
Model Number:
-
R540
-
Place of Origin:
-
Beijing, China
-
DRIVE BAY:
-
12LFF
-
HDD:
-
2t
-
Power Supply:
-
495W
-
RAID Controller:
-
H730P
-
MOQ:
-
1PC
-
Warranty:
-
3 Years
Product Description

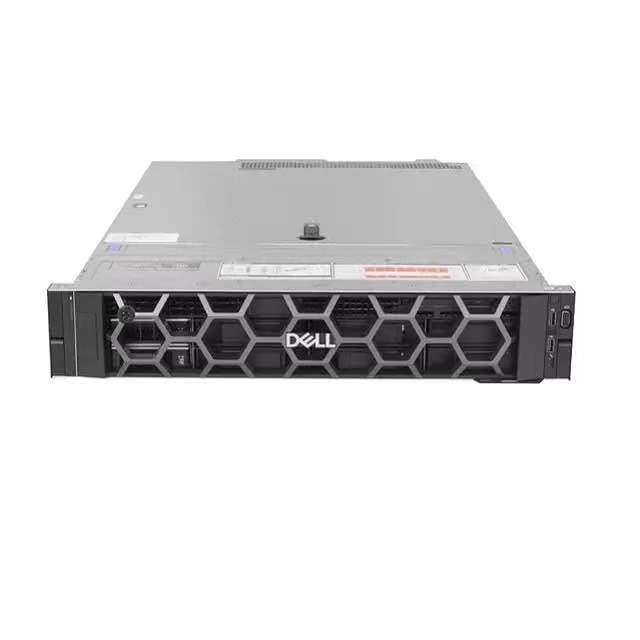

Popular original D ell PowerEdge R540 In tel Xeon Silver 4110 2.1G Rack Server 2U
1.
2.
Power your applications with a versatile 2-socket rack server
Satisfy a variety of applications with the flexible PowerEdge R540. Its balanced combination of resources, expandability and affordability adapt to the changing demands of a modern data center. Optimize your application performance with one-button tuning. Scale for future requirements with up to 14 x 3.5" drives. Embedded diagnostics and SupportAssist help to maximize uptime without added effort, in a worry-free environment.
Ideal for: Virtualization，Mail，Messaging，Video streaming
3.Gain productivity with intelligent, embedded management
D ell EMC OpenManage intelligent automation enables you to spend less time on routine maintenance so you can focus on
business-critical priorities.
Help maximize uptime and reduce the IT effort to resolve issues by up to 72%* with ProSupport Plus and SupportAssist.
Leverage existing management consoles with easy integrations for VMware® vSphere®, Microsoft® System Center and Nagios®.
Improve productivity with agent-free D ell EMC iDRAC9 for automated management.
Simplify deployment with OpenManage next-generation console and server profiles to configure and prep servers rapidly and
scalably.
4.Fortify your data center with comprehensive protection
A comprehensive, cyber-resilient architecture with security embedded into every server helps to protect your data.
Protect server configuration and firmware from malicious changes with new Configuration Lock-down.
Use system erase of local storage to help ensure data privacy when you repurpose or retire servers.
Automate updates that check file dependencies and proper update sequence, before deploying them independently from the
OS/hypervisor.
Take control of your firmware consoles with embedded authentication that is designed to allow only properly signed updates to run.
D ell EMC OpenManage intelligent automation enables you to spend less time on routine maintenance so you can focus on
business-critical priorities.
Help maximize uptime and reduce the IT effort to resolve issues by up to 72%* with ProSupport Plus and SupportAssist.
Leverage existing management consoles with easy integrations for VMware® vSphere®, Microsoft® System Center and Nagios®.
Improve productivity with agent-free D ell EMC iDRAC9 for automated management.
Simplify deployment with OpenManage next-generation console and server profiles to configure and prep servers rapidly and
scalably.
4.Fortify your data center with comprehensive protection
A comprehensive, cyber-resilient architecture with security embedded into every server helps to protect your data.
Protect server configuration and firmware from malicious changes with new Configuration Lock-down.
Use system erase of local storage to help ensure data privacy when you repurpose or retire servers.
Automate updates that check file dependencies and proper update sequence, before deploying them independently from the
OS/hypervisor.
Take control of your firmware consoles with embedded authentication that is designed to allow only properly signed updates to run.
|
Processor
|
Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 20 cores per processor
|
|
Operating System
|
Canonical® Ubuntu® Server LTS
Citrix® Hypervisor ® Microsoft® Windows Server® with Hyper-V Red Hat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
|
Memory
|
DIMM Speed Up to 2666MT/s Memory Type
RDIMM LRDIMM |
|
Memory Module Slots
|
16 DDR4 DIMM slots
Supports registered ECC DDR4 DIMMs only |
|
Maximum RAM
|
RDIMM 512GB LRDIMM 1TBi
|
|
Storage
|
Front Bays：Up to 12 x 3.5” SAS/SATA HDD max 168TB DVD-ROM, DVD+RW (optional)
Rear Bays：Up to 2 x 3.5” SAS/SATA HDD max 28TB |
|
Internal Controllers
|
PERC H330, H730P, H740P, HBA330
|
|
External Controllers
|
H840, 12 Gbps SAS HBA
|
|
Software RAID
|
S140
|
|
Internal Boot
|
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB, 480 GB |
|
Power Supplies
|
495W Platinum
750W Platinum 750W 240HVDC Platinumi 1100W Platinum 1100W 380V HDC Platinumi Hot plug power supplies with full redundancy option |
|
Ports
|
Network Options：2 x 1GbE LOM +
(optional) LOM Riser 2 x 1GbE, or 2 x 10GE SFP+, or2 x 10GE BaseT Front Ports：1 x USB 2.0 1 x Dedicated iDRAC direct USB 1 x Video Rear Ports：1 x Dedicated iDRAC network port 1 x Serial 2 x USB 3.0 1 x Video |
|
Dimensions & Weight
|
Height ：86.8mm (3.41") Widthi：434mm (17.08'')
Depthi：703.76mm (27.71”》Weight ：29.68kg (65.43lbs.) |
