Fully automatic laundry bar soap making machine detergent soap making machine

Fully automatic laundry bar soap making machine detergent soap making machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $50000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Certificate:: ISO9001; CE

Material:: Stainless Steel and carbon steel

Usage:: make toilet and laundry soap

Function:: make soap bar

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: TONGJI

Name:: Nantong Tongji Toilet and Laundry Soap production line making machine

Certificate:: ISO9001; CE

Material:: Stainless Steel and carbon steel

Usage:: make toilet and laundry soap

Function:: make soap bar

Product Description

Product Application

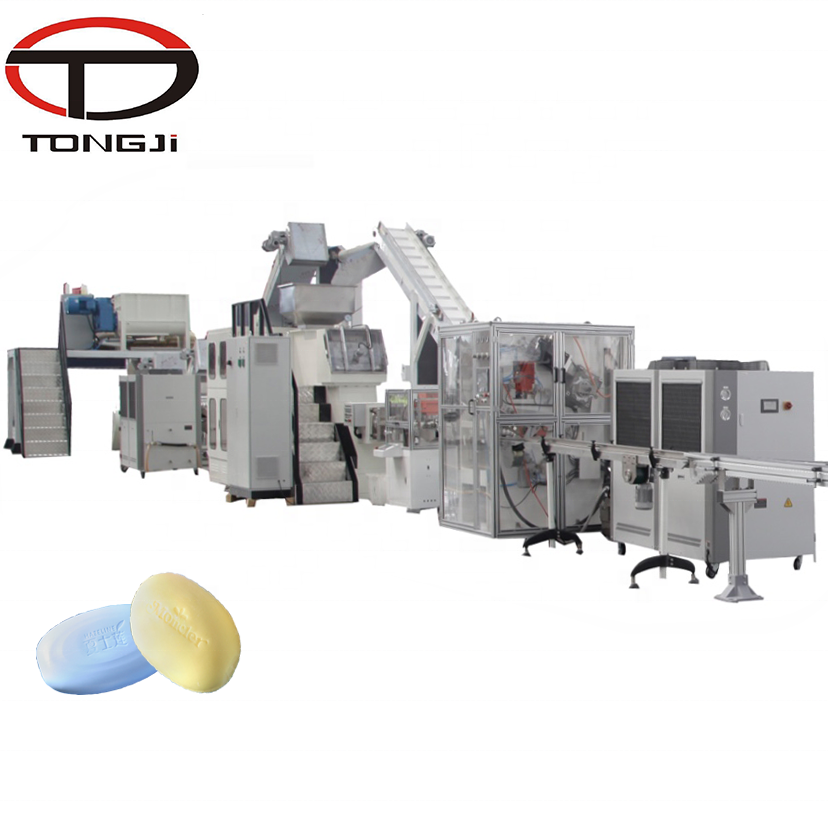

We could offer500kg/h-6000kg/h capacity toilet and laundry bar soap production equipment line making machines .

The laundry soap production line Including: mixer ,three roll mill machine ,refiner machine ,plodder machine and cutting machine.

Main machine list

No	Machine	Optional
Z1	XZJ250 Mixer	XZJ50 XZJ100 XZJ450 NHJ50 NHJ100 NHJ250 NHJ450 NHJ750
Z2	S405P Three Roll Mill	S150 S260 S405AP; Diagnal Roll Mill XS260 XS440A XS440
Z3	S405P Three Roll Mill	S150 S260 S405AP; Diagnal Roll Mill XS260 XS440A XS440
Z4	XCT1000 Duplex Plodder	XCT300, XCT500,XCT1000,XCT2000, XCT3000, XCT4000
Z5	XQK/G300 Embossing & Cutting Machine	XQK/G300, XQK/SG300, XQK/SSG300
Conveyors
Platform&Utilities
F1	Steel Operation Platform
F2	1m3/m Air Compressor
F3	Plodder Vacuum Pump U4.40
F4	Stamper Vacuum Pump KVT3.60
F5	S400-WLH High Temperature Chiller S400-WLH
F6	S200-WL Low Temperature Chiller S200-WL
Moulds
M1	Mould for Embossing Cutter

This machine is specially designed to mix soap pellets of all types with various liquid or powder additives.

The two "Sigma" mixing blades are of heavy duty type but easy to clean.The two blades are counter rotating and of different speeds, which help to fully mix the materials.

Two discharge doors controlled by pneumatic cylinders are installed on the bottom for material diacharging,

It adopts high quality gearbox and motor. The parts which are in contact with soap material adopt high quality stainless steel.

This 3-roll mill is used for soap refining.The three rolls are horizontally mounted,rotating at different speeds. The refining function is achieved by pressing and squeezing force between the rolls.

The screws are made of high quality stainless steel or aluminum alloy,which are in contact with the soap are made of high quality stainless steel.

For the laundry soap production, a complete set of embossing mechanism can be installed at the front so that the machine can emboss and cut the soaps at the same time to product finished product fot downstream packaging.

Click here for more information

Certifications

Our company

Nantong Tongji Co.,Ltd is located in Nantong,Jiangsu Province,1.5 hours' drive away from Shanghai. Established in 1997,Nantong Tongji Co. Ltd is the lagest supplier in China and Asian area,specializing in designing and manufacturing the whole set of toilet soap and laundry soap machinery,from soap processing soap making,finishing,packaging and end of line,with a wide range of capacity from 50kg/h small laboratory line to 8000kg/h high-speed line.The share in Chinese domestic market reaches up to 80% and for several types of machines,we are the only manufacturer who can provide them in China,as well as in Asia. We manufacture all kinds of packaging machinery and can meet different customer requirements,such as circular packaging,flow wrapping ,cartoner,soap wrapping machine,shrink wrapping machine,overwrapping machine and case packer,widely used in daily chemical,food,pharmaceutics,chemical industries.

Packing & Delivery

standard wooden case
