Quick Details
-
Brand Name:
-
MAOSU
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
2750*1100*1830
-
Weight:
-
1850 KG
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Oli Press Machine
-
Raw material:
-
Soybean Peanut Sunflower Coconut Palm Sesame Olive etc
-
Function:
-
Press Oil Seeds
-
Advantage:
-
High Oil Press Yield Rate
-
Feature:
-
High Quality Low Cost
-
Material:
-
Durable Carbon Steel
-
After Warranty Service:
-
Technical Support Online
-
Method to press:
-
Screw Squeezed Press
-
Extraction of Oilseeds:
-
95% Oil Yield
-
Certification:
-
ISO9001
Quick Details
-
Max Capacity:
-
1-100tpd
-
Production Capacity:
-
1-100tpd
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MAOSU
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
2750*1100*1830
-
Weight:
-
1850 KG
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
Oli Press Machine
-
Raw material:
-
Soybean Peanut Sunflower Coconut Palm Sesame Olive etc
-
Function:
-
Press Oil Seeds
-
Advantage:
-
High Oil Press Yield Rate
-
Feature:
-
High Quality Low Cost
-
Material:
-
Durable Carbon Steel
-
After Warranty Service:
-
Technical Support Online
-
Method to press:
-
Screw Squeezed Press
-
Extraction of Oilseeds:
-
95% Oil Yield
-
Certification:
-
ISO9001

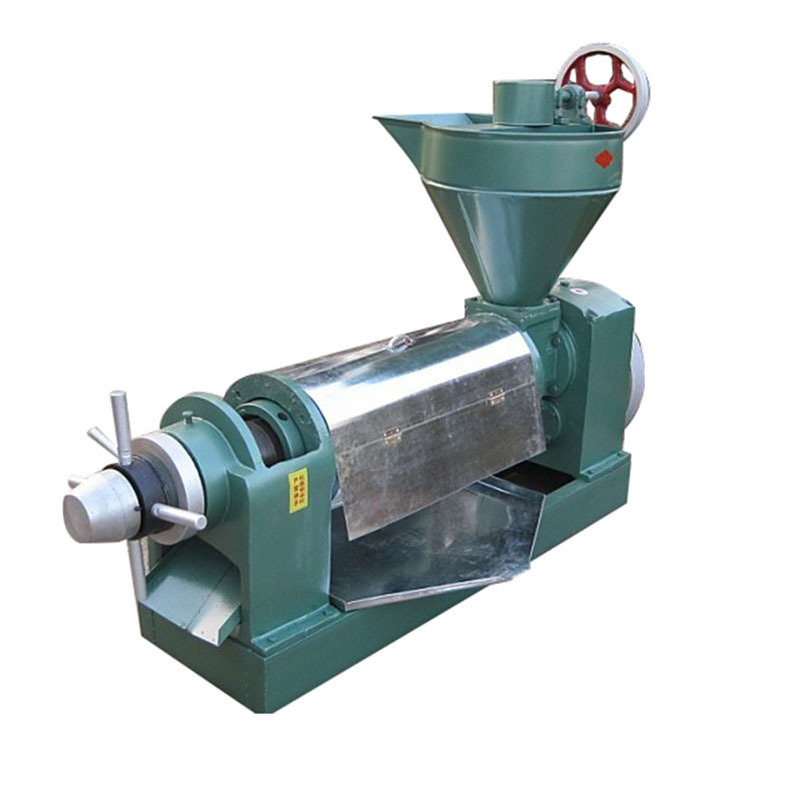

China avocado olive castor seed oil extraction press presses machine for sale
Product Description
Our Advantages
High Oil Yield Rate:
Compared with old and traditional oil press, the oil output rate of our oil press machine can be 5 to 8 percentage points higher. For example, use our oil press machine to process about 50 kg soybean can get about 3.5~4 kg crude soybean oil, which can greatly save cost and increase income.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Low residual: The oil residual in the cake is less 7%
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Quality Guaranteed: Every part of the oil press machine, from the smallest parts to the whole machine, is completely designed and manufactured by our own factory, so the quality and technical advantages of our oil press machine are not comparable to those produced or assembled by some small factories.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Save labor and energy: 60% electric power and 62% of the labor force can be saved based on the same output. One to two people can organize production.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Pure copper motors : More powerful and less failure rate.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Screw oil press working principle
The screw oil press mainly uses the change of pressing screw pitch size and screw thread depth to reduce the volume between screw pitch and pressing chamber, the oil materials get stronger pressure gradually, thus the oil can be squeezed out of the oil materials. Meanwhile, the high pressure in the chamber and the strong friction generates high temperature, which can improve the oil yield.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Low residual: The oil residual in the cake is less 7%
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Quality Guaranteed: Every part of the oil press machine, from the smallest parts to the whole machine, is completely designed and manufactured by our own factory, so the quality and technical advantages of our oil press machine are not comparable to those produced or assembled by some small factories.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Save labor and energy: 60% electric power and 62% of the labor force can be saved based on the same output. One to two people can organize production.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Pure copper motors : More powerful and less failure rate.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Screw oil press working principle
The screw oil press mainly uses the change of pressing screw pitch size and screw thread depth to reduce the volume between screw pitch and pressing chamber, the oil materials get stronger pressure gradually, thus the oil can be squeezed out of the oil materials. Meanwhile, the high pressure in the chamber and the strong friction generates high temperature, which can improve the oil yield.
Widely Application
This screw oil press machine is mainly used for the pressing oil crops such as sunflower seed, peanut, rapeseed,soybean,cottonseed, mustard seed, and dried coconut. The equipment is equipped with micro-electronic control, vacuum filtration,three-stage pressing system,etc, and the alloy steel is carburized to improve the surface hardness and wear resistance of the pressing screw rolls. The screw oil press machine has the advantages of easy operation, labor saving, reliable performance,small footprint, wide use, high oil yield, energy saving, and pure oil quality,etc
Specification
|
Model
|
Power(kw)
|
Capacity(t/24h)
|
Size(mm)
|
Weight(kg)
|
|
6YL -68
|
5.5
|
0.8-1.0
|
920*480*760
|
240
|
|
6YL -80
|
5.5
|
1.8-2.3
|
1320x540x1020
|
380
|
|
6YL -95
|
7.5
|
3.5-4.5
|
1640x640x1200
|
480
|
|
6YL -120
|
15
|
5-7
|
1750x640x1310
|
700
|
|
6YL -130
|
18.5
|
6-10
|
1750x640x1310
|
820
|
|
6YL -140
|
18.5/22
|
9-11
|
2150*820*1420
|
1000
|
|
6YL -160
|
30
|
16-18
|
2350*1000*1760
|
1500
|
|
6YL -168
|
37/45
|
20
|
2750*1100*1830
|
1800
|
