2-7/16 inch bore insert bearing UC312-39 plummer block bearing housing

2-7/16 inch bore insert bearing UC312-39 plummer block bearing housing

FOB Reference Price: Get Latest Price

≥10 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Material:: Chrome Steel GCR15

Certification:: ISO9001

MOQ:: 1 PCS

Outer Ring diameter:: 130 mm

Weight:: 2.5 KG

Housing material:: Cast Iron HT200

Hardness:: 60-65HRC

Sample:: Available

Service:: OEM Customized Services

Quick Details

Applicable Industries:: Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining

Brand Name:: NJSKT

Model Number:: UC312-39

Place of Origin:: Shandong, China

Material:: Chrome Steel GCR15

Certification:: ISO9001

MOQ:: 1 PCS

Outer Ring diameter:: 130 mm

Weight:: 2.5 KG

Housing material:: Cast Iron HT200

Hardness:: 60-65HRC

Sample:: Available

Service:: OEM Customized Services

2-7/16 inch bore insert bearing UC312-39 plummer block bearing housing

Product Description

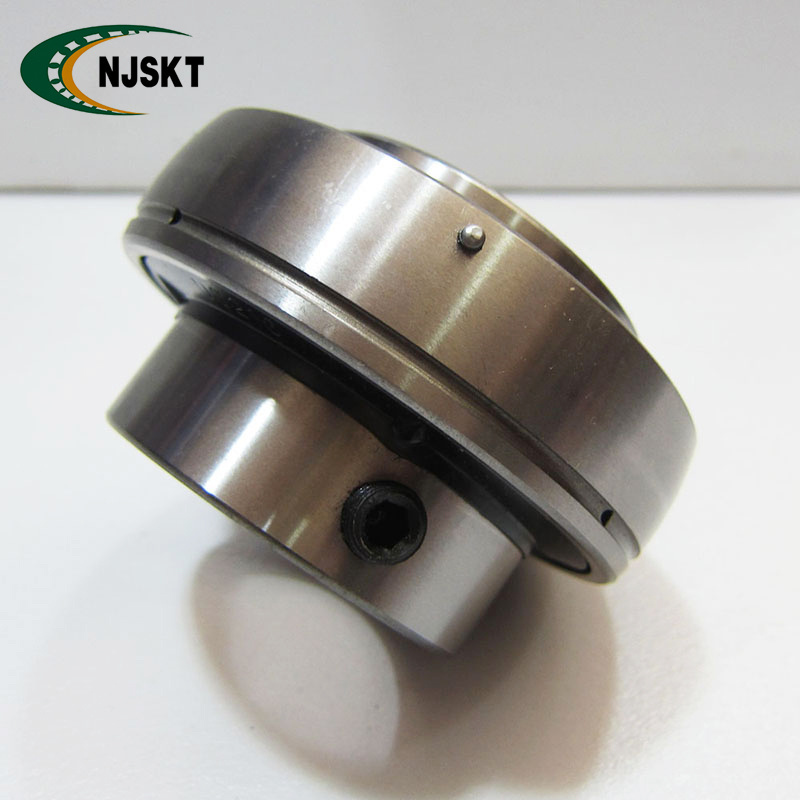

The insert bearings UC312-39(61.913x130x71mm) are single deep groove ball bearings which have an inner ring that is extended on one or both sides. And this type bearings are basically sealed deep groove ball bearings with a convex sphered outer surface. The insert bearings are mounted in appropriate housings to form bearing units. The various bearing series differ in the way the bearing is located onto the shaft. These bearings are suitable for applications where insert bearings are exposed to heavy dust and water contamnation.

Insert Ball Bearing Details:
Brand:	NJSKT
Model No.:	Insert bearing UC312-39
Quality Standard:	ISO9001: 2000
	1)Minimum quantity: 1 sets
Features:	2)Precision: P0,P4,P5,P6
	3)Bore Size: 61.913 mm
	4)Outside Diameter: 130mm, Width 71 mm
	5)Weight:2.5kg
	6)Precision Rating: P0,P6,P5,P4
	7)Noise level: Z1, Z2, Z3, Z4
	8)Vibration Level: V1, V2, V3, V4
	9)Hardness: 60-65 HRC
	10)Seals Type: sealed type oe Triple lip shroud seales
	10)Material: Chrome Steel GCR15 ,Carbon steel, Stainless steel 304,420,440,
Application:	agricultural machinery, construction machinery, textile machinery, foodstuff machinery and conveying devices, food and beverage processing equipment, chemical, rubber equipment, packaging machines, car washing machine, etc.
Packaging Details:	1. Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the customers' requirement
Samples Policy :	sample lead time:5-7 working day. Sample cost needed and freight collected. We will reduct this part expense from the total value when place order.
Delivery :	4-9 days if have stock, 9-30 days after order confirmed(depend on the total amount)
Service:	We are a 100% manufacturer and can supply fast delivery, competitive price and high quality. We can supply technical support. We will follow up on our customers' feedback and suggestions after every delivery and we make every effort to solve their problems in order to ensure their satisfaction.
	We may supply other brand bearings and offer buyer labels
	We can manufacture these bearings according to customer's drawings and samples

Bearing No.	Shaft Dia.		Dimensions(mm)/(in.)								Basicload rating(N)		Weight(kg)
	d		D	B	C	S	S1	G	h	ds	Dynamic Cr	Static Cor
	(in.)	(mm)	D	B	C	S	S1	G	h	ds	Dynamic Cr	Static Cor
UC305-14	7/8		62	38	21	15	23	6	6.2	1/4-28UNF	22360	11500	0.38
UC305-15	15/16		62	38	21	15	23	6	6.2	1/4-28UNF	22360	11500	0.36
UC305		25	62	38	21	15	23	6	6.2	M6X1	22360	11500	0.35
UC305-16	1		62	38	21	15	23	6	6.2	1/4-28UNF	22360	11500	0.34
UC306-18	1-1/8		72	43	24	17	26	6	6.5	1/4-24UNF	27000	15200	0.58
UC306	1-3/16	30	72	43	24	17	26	6	6.5	M6X1	27000	15200	0.56
UCX06-19	1-1/4		72	43	24	17	26	6	6.5	1/4-24UNF	27000	15200	0.56
UC307-20	1-1/4		80	48	25	19	29	8	7.2	5/16-24UNF	33500	19200	0.77
UC307-21	1-5/16		80	48	25	19	29	8	7.2	5/16-24UNF	33500	19200	0.74
UC307-22	1-3/8		80	48	25	19	29	8	7.2	5/16-24UNF	33500	19200	0.71
UC307		35	80	48	25	19	29	8	7.2	M8X1	33500	19200	0.71
UC308-24	1-1/2		90	52	28	19	33	10	8.5	3/8-24UNF	40560	24000	1
UC308-25	1-9/16		90	52	28	19	33	10	8.5	3/8-24UNF	40560	24000	0.98
UC308		40	90	52	28	19	33	10	8.5	M10X1.25	40560	24000	0.96
UC309-26	1-5/8		100	57	30	22	35	10	9	3/8-24UNF	53000	31800	1.36
UC309-27	1-11/16		100	57	30	22	35	10	9	3/8-24UNF	53000	31800	1.33
UC309-28	1-3/4		100	57	30	22	35	10	9	3/8-24UNF	53000	31800	1.3
UC309		45	100	57	30	22	35	10	9	M10X1.25	53000	31800	1.28
UC310-30	1-7/8		110	61	32	22	39	12	9.9	7/16-20UNF	61750	37800	1.74
UC310-31	1-15/16		110	61	32	22	39	12	9.9	7/16-20UNF	61750	37800	1.68
UC310		50	110	61	32	22	39	12	9.9	M12X1.25	61750	37800	1.65
UC311-32	2		120	66	34	25	41	12	10.6	7/16-20UNF	71500	44800	2.08
UC311-34	2-1/8		120	66	34	25	41	12	10.6	7/16-20UNF	71500	44800	1.9
UC311		55	120	66	34	25	41	12	10.6	M12X1.25	71500	44800	1.9
UC311-35	2-3/16		120	66	34	26	45	12	11.3	7/16-20UNF	71500	44800	1.87
UC312-36	2-1/4		130	71	36	26	45	12	11.3	7/16-20UNF	81600	51800	2.65
UC312		60	130	71	36	26	45	12	11.3	M12X1.25	81600	51800	2.6
UC312-38	2-3/8		130	71	36	26	45	12	11.3	7/16-20UNF	81600	51800	2.57
UC312-39	2-7/16		130	71	36	26	45	12	11.3	7/16-20UNF	81600	51800	2.5
UC313-40	2-1/2		140	75	38	30	45	12	12.1	7/16-20UNF	93860	60500	3.3
UC313		65	140	75	38	30	45	12	12.1	M12X1.25	93860	60500	3.25
UC314-44	2-3/4		150	78	40	31	47	12	12.8	7/16-20UNF	104260	68000	3.96
UC314		70	150	78	40	31	47	12	12.8	M12X1.25	104260	68000	3.95
UC315		75	160	82	42	32	50	14	13.5	M14X1.5	113360	76800	4.33
UC315-48	3		160	82	42	32	50	14	13.5	1/2-20UNF	113360	76800	4.24
UC316		80	170	86	44	34	52	14	14.5	M14X1.5	122850	86500	5.57
UC317-52	3-1/4		180	96	46	40	56	16	15.5	5/8-18UNF	132600	96500	7.08
UC317		85	180	96	46	40	56	16	15.5	M16X1.5	132600	96500	6.84
UC318-56	3-1/2		190	96	48	40	56	16	16.5	5/8-18UNF	143000	108000	8.03
UC318		90	190	96	48	40	56	16	16.5	M16X1.5	143000	108000	7.87
UC319		95	200	103	50	41	62	18	16.7	M16X1.5	156000	122000	8.91
UC319-60	3-3/4		200	103	50	41	62	18	16.7	5/8-18UNF	156000	122000	8.88
UC320		100	215	108	54	42	66	18	19	M18X1.5	171600	140000	11.2
UC320-64	4		215	108	54	42	66	18	19	5/8-18UNF	171600	140000	11
UC322		110	240	117	60	46	71	18	21	M18X1.5	158000	178000	14.3
UC324		120	260	126	64	51	75	18	22	M18X1.5	175000	208000	18.5
UC326	130		280	135	68	54	81	20	23	M20X1.5	195000	242000	23
UC328		140	300	145	72	59	86	20	25	M20X1.5	212000	272000	28.5
