Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Perfect Laser
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
PERFECT LASER
-
Marking Head Brand:
-
SINO
-
Weight (KG):
-
52 KG
-
Machinery Test Report:
-
Provided CE Report
-
Product name:
-
Fiber Laser Marking Machine
-
Marking Speed:
-
7000mm/second
-
Operating voltage:
-
220V
-
Spot size:
-
≤ 40 micron (F-theta 160)
-
Operating temperature:
-
0~40℃
-
Output fiber delivery length:
-
3m
-
Long-term average power instability:
-
<5%
-
Certification:
-
CE
-
After-sales Service Provided:
-
24 hours Online support
Quick Details
-
Working Accuracy:
-
0.002
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dwg, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Perfect Laser
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
PERFECT LASER
-
Marking Head Brand:
-
SINO
-
Weight (KG):
-
52 KG
-
Machinery Test Report:
-
Provided CE Report
-
Product name:
-
Fiber Laser Marking Machine
-
Marking Speed:
-
7000mm/second
-
Operating voltage:
-
220V
-
Spot size:
-
≤ 40 micron (F-theta 160)
-
Operating temperature:
-
0~40℃
-
Output fiber delivery length:
-
3m
-
Long-term average power instability:
-
<5%
-
Certification:
-
CE
-
After-sales Service Provided:
-
24 hours Online support

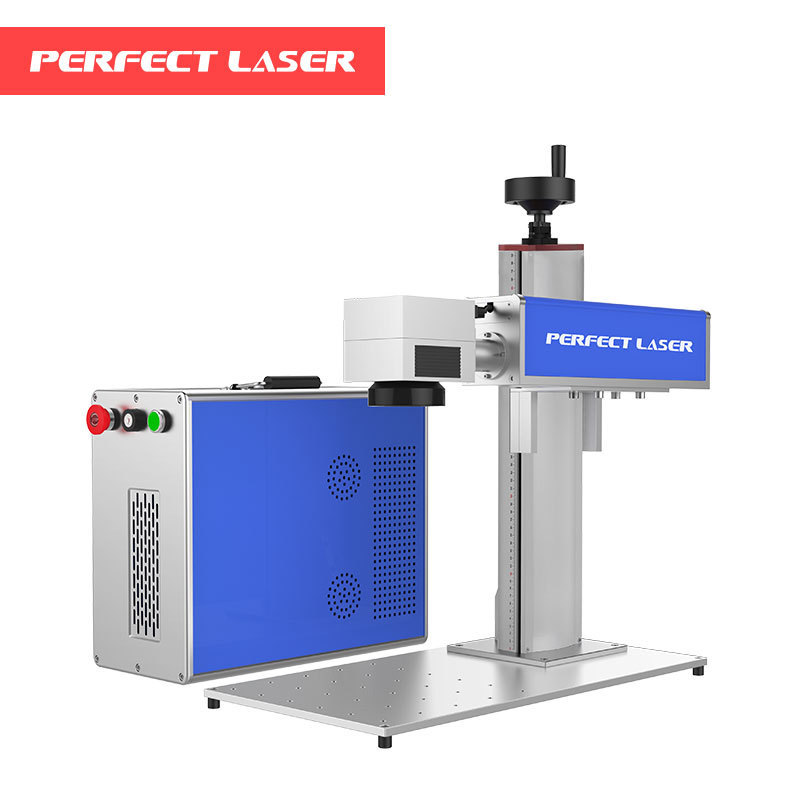

Cheap Desktop 20w 30w 50w Metal Gold Jewellery Optic Fiber Laser Marker Marking Engraving Printer Etcher Etching Machine Price
(Model: PEDB-400B)
Contact: Sophie Whatsapp/Wechat: 0086136 5988 3308
Email:Sophie@perfectlaser dot net
Product Description
Samples&Application
This metal laser marking machine is mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Machine Details
1.Fiber Laser Source
A wide selection of operating wavelengths, ultra-low amplitude noise,high stability and more than 10,000 hours service time.
2.Digital Laser Scanning Head
Fast response ability<0.7ms,can realize fast speed marking and high precision.
A wide selection of operating wavelengths, ultra-low amplitude noise,high stability and more than 10,000 hours service time.
2.Digital Laser Scanning Head
Fast response ability<0.7ms,can realize fast speed marking and high precision.
3.EZ-CAD Control System
With stable performance and high reliability.More than 10,000 sets of equipment are using EZ-CAD control card,shield-utilizing part of complex functions,ensuring higher stability.
4.Red Light Pointer
Adopts red light pointer to show the laser path since laserbeam is invisible.
With stable performance and high reliability.More than 10,000 sets of equipment are using EZ-CAD control card,shield-utilizing part of complex functions,ensuring higher stability.
4.Red Light Pointer
Adopts red light pointer to show the laser path since laserbeam is invisible.
5.Lifting Handle
Can adjust the distance between the marking head and the object, making the marking easily. The standard distance of elevation is 400mm, it can be customized.
6.Ruler Scale
Helps user to adjust the height of different marking object. Then the user can position and find it easily next time.
Can adjust the distance between the marking head and the object, making the marking easily. The standard distance of elevation is 400mm, it can be customized.
6.Ruler Scale
Helps user to adjust the height of different marking object. Then the user can position and find it easily next time.
7.Portable Handle
Makes the machine easy to move.
8.Main Switch
The main switch includes emergency stop switch, key switch and start switch, which aresimple and easy to operate.
Makes the machine easy to move.
8.Main Switch
The main switch includes emergency stop switch, key switch and start switch, which aresimple and easy to operate.
Technical Data
|
Model No
|
PEDB-400A
|
PEDB-400B
|
PEDB-400C
|
PEDB-400D
|
||||
|
Type
|
Portable
|
Desktop
|
Colorful
|
Standby
|
||||
|
Computer
|
Not includes PC
|
|
|
Includes PC
|
||||
|
IPG Series
|
Pulsed, High Energy Ytterbium Fiber Lasers
|
|
|
|
||||
|
Mode of operation
|
Pulsed
|
|
|
|
||||
|
Polarization
|
random
|
|
|
|
||||
|
Standard output power
|
10W - 30W For PEDB-400A /400B /400C
10W - 50W For PEDB-400D |
|
|
|
||||
|
Central emission wavelength
|
1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
|
|
|
|
||||
|
Emission Bandwidth
(FWHM) |
<10 nm
|
|
|
|
||||
|
Long-term average power instability
|
<5%
|
|
|
|
||||
|
Pulse width, (FWHM)
|
100 ns
|
|
|
|
||||
|
Laser switching ON time
|
180 μsec
|
|
|
|
||||
|
Laser switching OFF time
|
180 μsec
|
|
|
|
||||
|
Pulse Repetition Rate* kHz
|
20-80 kHz
|
|
|
|
||||
|
Energy per pulse (PRR = 20 kHz)
|
0.95 mJ
|
|
|
|
||||
|
Typical beam quality, M2
|
<1.8
|
|
|
|
||||
|
Output fiber delivery length
|
3m
|
|
|
|
||||
|
Operating voltage
|
220V
|
|
|
|
||||
|
Max. Power consumption
|
600W
|
|
|
|
||||
|
Net Dimensions
|
70*20*50cm
|
80*38*72cm
|
70*20*50cm
|
143*62*101cm
|
||||
|
Net Weight
|
44 kgs
|
53 kgs
|
44 kgs
|
130 kgs
|
||||
|
Gross Weight
|
60 kgs
|
70 kgs
|
60 kgs
|
200 kgs
|
||||
|
Laser system
|
|
|
|
|
||||
|
Scanning Speed
|
0-7000mm/s
|
|
|
|
||||
|
Marking Speed
|
0-5000mm/s
|
|
|
|
||||
|
Marking size
|
110mm×110mm (F-theta 160)
|
|
|
|
||||
|
Spot size
|
≤ 40 micron (F-theta 160)
|
|
|
|
||||
|
Cooling unit
|
Air cooled
|
|
|
|
||||
|
Pilot laser
|
650nm diode laser, visible red light for marking guide
|
|
|
|
||||
|
Continuous working time
|
≥16h
|
|
|
|
||||
|
Humidity
|
45～85% (no condensation)
|
|
|
|
||||
|
Operating temperature
|
0~40℃
|
|
|
|
||||
|
Control units
|
Laser Mark (English Version)
|
|
|
|
||||
